Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNMART
-
Model Number:
-
VMIV 3600-24
-
Input Voltage:
-
90-280VAC
-
Output Voltage:
-
230VAC ± 5%
-
Output Current:
-
23.3A
-
Output Frequency:
-
50Hz/60Hz (Auto sensing)
-
Size:
-
100*300*400
-
Warranty:
-
1YEARS
-
Weight:
-
13KG
-
Name:
-
High frequency Axpert VMIV 3.6KW hybrid solar inverter built in MPPT
-
Solar Controller Type:
-
MPPT 24V120A
-
Surge power (5 seconds):
-
7200VA
-
Efficiency:
-
97%
-
Waveform:
-
Pure Sine Wave
-
Battery Volatge:
-
24V
-
MAX PV array power:
-
4000W
-
maximum PV array open circuit voltage:
-
500V
-
MPPT range:
-
120V -450V
-
output power:
-
3600w
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUNMART
-
Model Number:
-
VMIV 3600-24
-
Input Voltage:
-
90-280VAC
-
Output Voltage:
-
230VAC ± 5%
-
Output Current:
-
23.3A
-
Output Frequency:
-
50Hz/60Hz (Auto sensing)
-
Size:
-
100*300*400
-
Warranty:
-
1YEARS
-
Weight:
-
13KG
-
Name:
-
High frequency Axpert VMIV 3.6KW hybrid solar inverter built in MPPT
-
Solar Controller Type:
-
MPPT 24V120A
-
Surge power (5 seconds):
-
7200VA
-
Efficiency:
-
97%
-
Waveform:
-
Pure Sine Wave
-
Battery Volatge:
-
24V
-
MAX PV array power:
-
4000W
-
maximum PV array open circuit voltage:
-
500V
-
MPPT range:
-
120V -450V
-
output power:
-
3600w

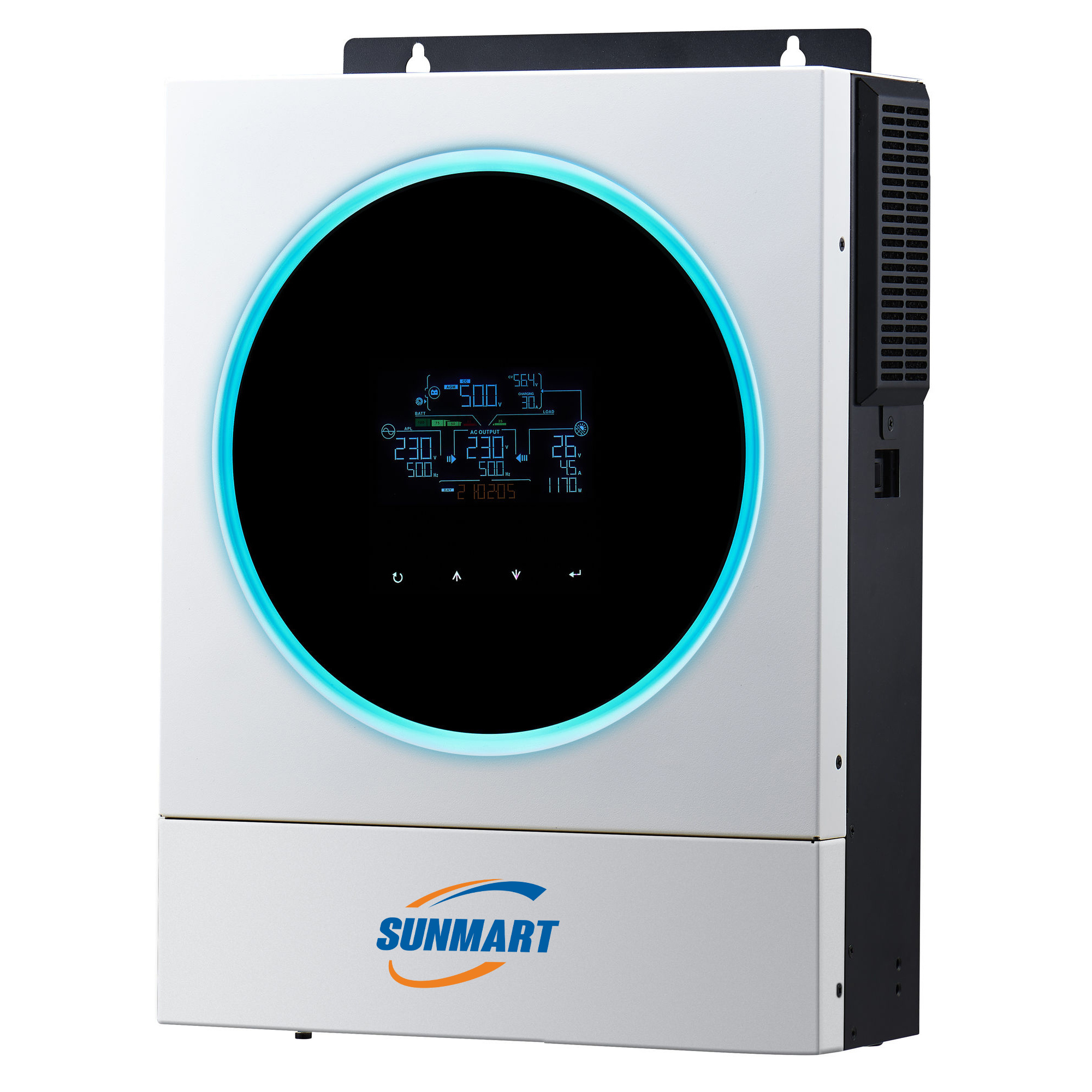

2023 High frequency Axpert VMIV 3.6KW hybrid solar inverter built in MPPT24V120A 500VDC PV input +built in Wifi
Features:
Specifications:
|
VMIV 3 600-24 |
|
|
RATED POWER |
3600VA/3600W |
|
INPUT |
|
|
Voltage |
230 VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
OUTPUT |
|
|
AC Voltage Regulation (Batt. Mode) |
230 VAC ± 5% |
|
Surge Power |
7200VA |
|
Efficiency (Peak) PV to INT |
97% |
|
Efficiency(Peak)Battery to INT |
93% |
|
Transfer Time |
15 ms (For Personal Computers) ; 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY |
|
|
Battery Voltage |
24 VDC |
|
Floating Charge Voltage |
27 VDC |
|
Overcharge Protection |
33VDC |
|
SOLAR CHARGER & AC CHARGER |
|
|
Max. PV Array Open Circuit Voltage |
500VDC |
|
Max. PV Array Power |
4000 W |
|
MPP Range @operating Voltage |
120~450VDC |
|
Max. Solar Charge Current |
120A |
|
Max. AC Charge Current |
100A |
|
Max. Charge Current |
120 A |
|
PHYSICAL |
|
|
Dimension, D x W x H (mm) |
119 x 313.6 x 422.8 |
|
Net Weight (kgs) |
11 |
|
Communication Interface |
USB/RS232 /GPRS/WIFI |
|
ENVIRONMENT |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-15°C to 60°C |
Detail Review :
LCD Display:
Working Diagram:
Any question,please feel free to contact me
