Quick Details
-
Reed form:
-
Open Loop or SPDT
-
Color:
-
Grey
-
Installation:
-
Surface mounted
-
Material:
-
Alloy-Zn , Metal magnetic contact switch
-
Name:
-
magnet sensor detector
-
Operating Gap Inch (mm):
-
3/4(18±5)
-
Output:
-
NO/NC,or NC
-
Reed:
-
OKI
-
Certificate:
-
CE FCC CCC ROHS
-
Describe:
-
window door magnet sensor detector
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
P&H
-
Model Number:
-
ES157
-
Reed form:
-
Open Loop or SPDT
-
Color:
-
Grey
-
Installation:
-
Surface mounted
-
Material:
-
Alloy-Zn , Metal magnetic contact switch
-
Name:
-
magnet sensor detector
-
Operating Gap Inch (mm):
-
3/4(18±5)
-
Output:
-
NO/NC,or NC
-
Reed:
-
OKI
-
Certificate:
-
CE FCC CCC ROHS
-
Describe:
-
window door magnet sensor detector
-
Certification:
-
CE
Name
Magnetic Switch

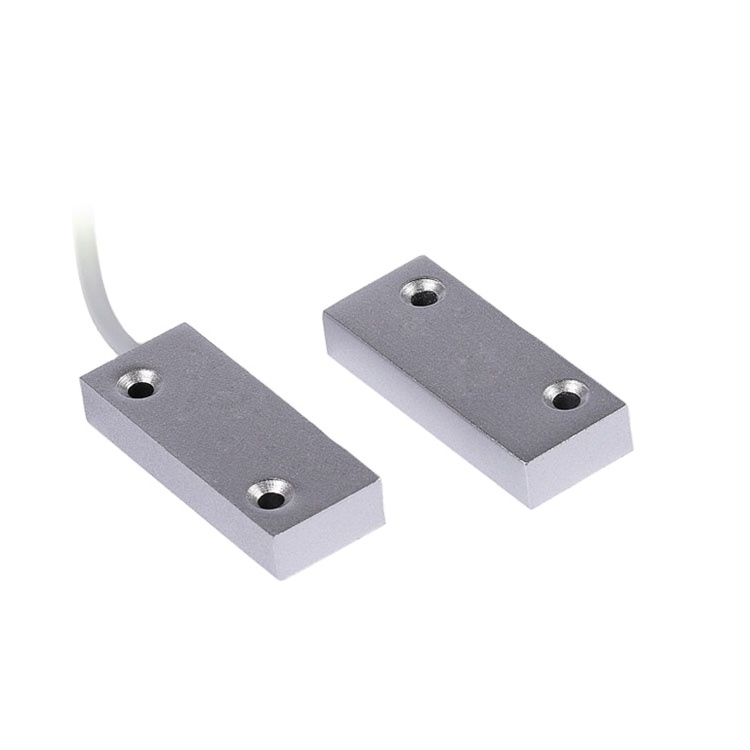

Window door magnet sensor detector
Features
1. Switch & magnet concealed in polished alloy-zinc die-cast housing
2. 21 inch(53cm) side lead
3. Screws included
4. Magnet : NdFeB
5. Color : grey
6. Reed: OKI®
7. Ideal for commercial application or industrial use
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium Plated Reed
Technical Data:
Surface Mounted:
|
Model |
Loop Type |
Reed Form |
Operating Gap Inch (mm) |
Max Contact Resistance (Ohm) |
Max Rating Current (mA) |
Max Switching Voltage (VDC) |
|
ES 130 |
closed |
NO |
3 /4 ( 18 ±5) |
0.2 |
500 |
100 |
|
ES130B |
closed |
NO |
3 /4 ( 20 ±5) |
0.2 |
500 |
100 |
|
ES130C |
closed |
NO |
3 /4 ( 20 ±5) |
0.2 |
500 |
100 |
|
ES131 |
closed |
NO |
1/2 ( 16 ±5) |
0.2 |
500 |
100 |
|
ES132 |
closed |
NO |
3 /4 ( 20 ±5) |
0.2 |
500 |
100 |
|
ES133 |
closed |
NO |
1 ( 22.5 ± 2.5 ) |
0.2 |
500 |
100 |
|
ES134 |
closed |
NO |
3 /4 ( 20 ±5) |
0.2 |
500 |
100 |
|
ES137 |
closed |
NO |
1/2 ( 16 ±5) |
0.2 |
500 |
100 |
|
ES138 |
closed |
NO |
3 /4 ( 18 ±5) |
0.2 |
500 |
100 |
|
ES138B |
closed |
NO |
3 /4 ( 20 ±5) |
0.2 |
500 |
100 |
|
ES139 |
closed |
NO |
3 /4 ( 18 ±5) |
0.2 |
500 |
100 |
|
ES153 |
closed |
NO |
1 ( 25 ±5) |
0.2 |
500 |
100 |
|
ES154 |
closed |
NO |
2 ( 50 ± 10 ) |
0.2 |
500 |
100 |
|
ES157 |
closed |
NO |
3 /4 ( 18 ±5) |
0.2 |
500 |
100 |
THE MAGNETIC CONTACTS FOR YOUR CHOOSE:
Overhead Mounted:
Surface Mounted:
Recessed Mounted:
