Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOKOCRANES
-
Product name:
-
Clamp Coil Tong Lifter
-
Application:
-
Industrial Filed
-
Color:
-
Customers' Requirement
-
OEM:
-
Provide
-
Capacity:
-
1-20 ton
-
Type:
-
Semi Automatic
-
After Warranty Service:
-
Video technical support
-
Control Method:
-
Wire Rope Remote Control
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Warranty:
-
1.5 years
-
Weight (KG):
-
500
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOKOCRANES
-
Product name:
-
Clamp Coil Tong Lifter
-
Application:
-
Industrial Filed
-
Color:
-
Customers' Requirement
-
OEM:
-
Provide
-
Capacity:
-
1-20 ton
-
Type:
-
Semi Automatic
-
After Warranty Service:
-
Video technical support
-
Control Method:
-
Wire Rope Remote Control
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
Field installation, commissioning and training
Product Description

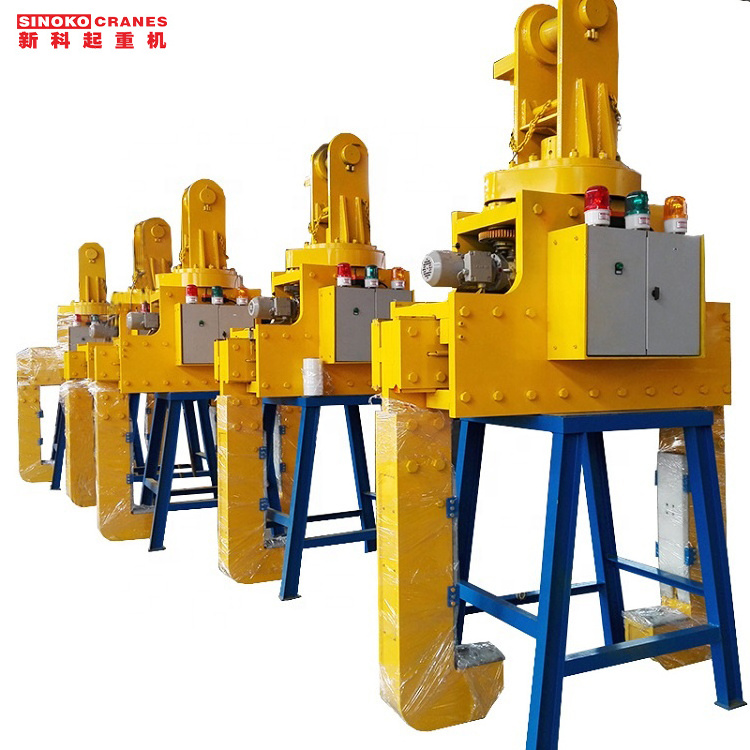

Steel coil tong clamp
, without the aid of external force, the billet can be clamped, and the clamping is reliable, the movement is flexible, and the lifting is safe and reliable. The shutter is made of high-strength wear-resistant alloy steel with flexible action and long service life.
The structural billet tongs are fixed and adjustable (height H steplessly adjustable) to accommodate the lifting of billets of different specifications and different layers. The connection with the customer's crane can be designed according to the actual situation. The billet tongs are all analyzed by PRO/E design, simulating the entire clamping and lifting process, and analyzing the force of key components to achieve the best design results.
The structural billet tongs are fixed and adjustable (height H steplessly adjustable) to accommodate the lifting of billets of different specifications and different layers. The connection with the customer's crane can be designed according to the actual situation. The billet tongs are all analyzed by PRO/E design, simulating the entire clamping and lifting process, and analyzing the force of key components to achieve the best design results.
Specification
|
Number
|
WLL
|
Opening
|
Weight
|
|
JGFFD01
|
5t
|
1020
|
1.6t
|
|
JGFFD02
|
10t
|
1150
|
2.5t
|
|
JGFFD03
|
15t
|
1450
|
3.3t
|
