- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SUHUA
-
Model Number:
-
copper ball
-
Product name:
-

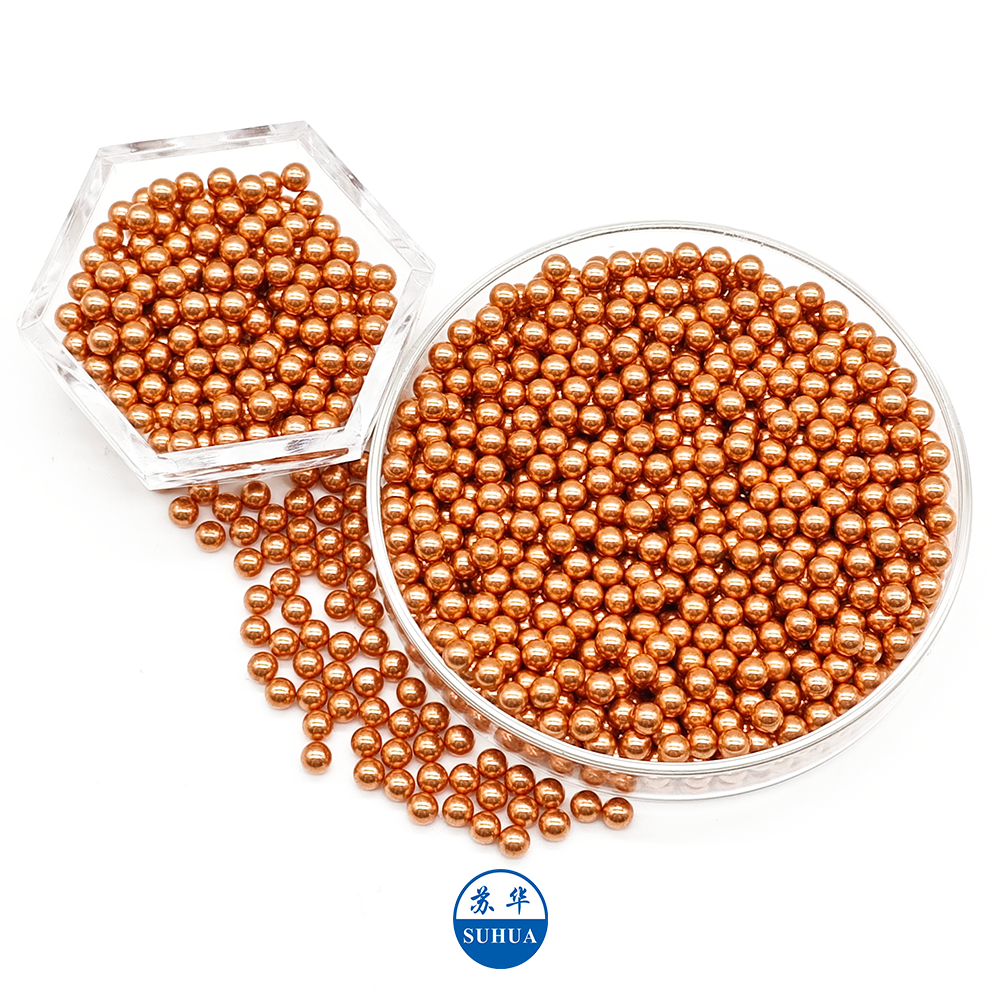

20mm solid large brass ball / copper ball from china
-
Size range:
-
1.0mm-40mm
-
Grade:
-
G500
-
Standard:
-
AISI DIN JIS BS
-
Certification:
-
ISO; BV; TS16949; RoHS
-
Hardness:
-
Rockwell B75-87
-
Surface:
-
High Polished
-
Package:
-
Plastic Bag+Box+Carton
-
Application:
-
Bearing, Electrical devices...
-
Structure:
-
Solid
Quick Details
-
Applicable Industries:
-
Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works
-
Material:
-
copper
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUHUA
-
Model Number:
-
copper ball
-
Product name:
-
20mm solid large brass ball / copper ball from china
-
Size range:
-
1.0mm-40mm
-
Grade:
-
G500
-
Standard:
-
AISI DIN JIS BS
-
Certification:
-
ISO; BV; TS16949; RoHS
-
Hardness:
-
Rockwell B75-87
-
Surface:
-
High Polished
-
Package:
-
Plastic Bag+Box+Carton
-
Application:
-
Bearing, Electrical devices...
-
Structure:
-
Solid
Product Paramenters
|
Brass Ball
|
|
|
|
|
|
|
||||||
|
1. Material
|
|
H62, H65
|
|
|
|
|
||||||
|
2.Size Range
|
|
1-50mm
|
|
|
|
|
||||||
|
3.Grade
|
|
G500-G1000
|
|
|
|
|
||||||
|
4.Hardness
|
|
HRB 75-87
|
|
|
|
|
||||||
|
5.Characteristic
|
|
Good corrosion resistance in ambient air and sea water
|
|
|
|
|
||||||
|
6.Applications
|
|
Valve,industrial pump,electronic devices,furniture rails.
|
|
|
|
|
||||||
|
7.Magnetic
|
|
Nearly non-magnetic
|
|
|
|
|
||||||
|
8.Packing
|
|
Standard 10kgs or 20kgs per carton
|
|
|
|
|
||||||
|
9.Conditioning
|
|
Dry
|
|
|
|
|
||||||
|
10.Delivery time
|
|
Stock within a short time or 35 days
|
|
|
|
|
||||||
|
Copper Ball
|
|
|
|
1. Material
|
99.9% copper
|
|
|
2. Size Range
|
1.0mm-40mm
|
|
|
3. Grade
|
G100-1000
|
|
|
4. Characteristic
|
(a)Good corrosion resistance in ambient air and sea water
|
|
|
|
(b)Unstable in acid and alkalis
|
|
|
5. Application
|
Valve,sprayer, instrument, pressure gage, water meter, carburetor,
|
|
|
|
electric appliances
|
|
|
6. Magnetic Nearly Non-magnetic
|
Nearly Non-magnetic
|
|
|
7.Packing
|
Standard: 10kg or 20kg per carton,
|
|
|
|
1 ton per pallet or as customer required
|
|
|
8.Conditioning
|
Dry
|
|
|
9.Delivery time
|
Stock within a short time or 25-35 days.
|
|
|
Grade: G10 to G1000
|
|
|
|
|
|
|||||
|
Grade
|
ball diameter
|
spherical
|
surface
|
lot diameter
|
nomainal ball
|
|||||
|
|
variation
|
deviation
|
roughness
|
variation
|
deviation tolerance
|
|||||
|
|
Vdws
|
Sph
|
Ra
|
Vdwl
|
Tdn
|
|||||
|
|
not over
|
|
|
|
|
|||||
|
|
μm
|
|
|
|
|
|||||
|
10
|
0.25
|
0.25
|
0.02
|
0.5
|
*
|
|||||
|
16
|
0.4
|
0.4
|
0.025
|
0.8
|
*
|
|||||
|
20
|
0.5
|
0.5
|
0.032
|
1
|
*
|
|||||
|
24
|
0.6
|
0.6
|
0.04
|
1.2
|
*
|
|||||
|
28
|
0.7
|
0.7
|
0.05
|
1.4
|
*
|
|||||
|
40
|
1
|
1
|
0.06
|
2
|
*
|
|||||
|
60
|
1.5
|
1.5
|
0.08
|
3
|
*
|
|||||
|
100
|
2.5
|
2.5
|
0.1
|
5
|
±12.5
|
|||||
|
200
|
5
|
5
|
0.15
|
10
|
±25
|
|||||
|
500
|
12.5
|
12.5
|
*
|
25
|
±50
|
|||||
|
1000
|
25
|
25
|
*
|
50
|
±125
|
|||||
