Quick Details
-
Color Print Speed:
-
NONE
-
Max. Resolution:
-
8 dots/mm, 384 dots/line
-
Brand Name:
-
BETTER
-
Place of Origin:
-
Fujian, China
-
Printing Method:
-
Thermal Line Printing
-
Color:
-
black and white
-
Effective Printing Width:
-
48mm
-
Diameter of paper roll:
-
30mm
-
paper type:
-
thermal paper
-
voltage:
-
5-9V/12V
-
paper feed mode:
-
auto
-
MCBF:
-
5 million lines
-
Character Set:
-
ASCII,GB2312-80(Chinese)
-
Dimensions:
-
82*58*45mm(W*D*H)
Quick Details
-
Interface Type:
-
Serial(RS-232,TTL); USB
-
Max Paper Size:
-
58mm
-
Black Print Speed:
-
60-80mm/s
-
Color Print Speed:
-
NONE
-
Max. Resolution:
-
8 dots/mm, 384 dots/line
-
Brand Name:
-
BETTER
-
Place of Origin:
-
Fujian, China
-
Printing Method:
-
Thermal Line Printing
-
Color:
-
black and white
-
Effective Printing Width:
-
48mm
-
Diameter of paper roll:
-
30mm
-
paper type:
-
thermal paper
-
voltage:
-
5-9V/12V
-
paper feed mode:
-
auto
-
MCBF:
-
5 million lines
-
Character Set:
-
ASCII,GB2312-80(Chinese)
-
Dimensions:
-
82*58*45mm(W*D*H)

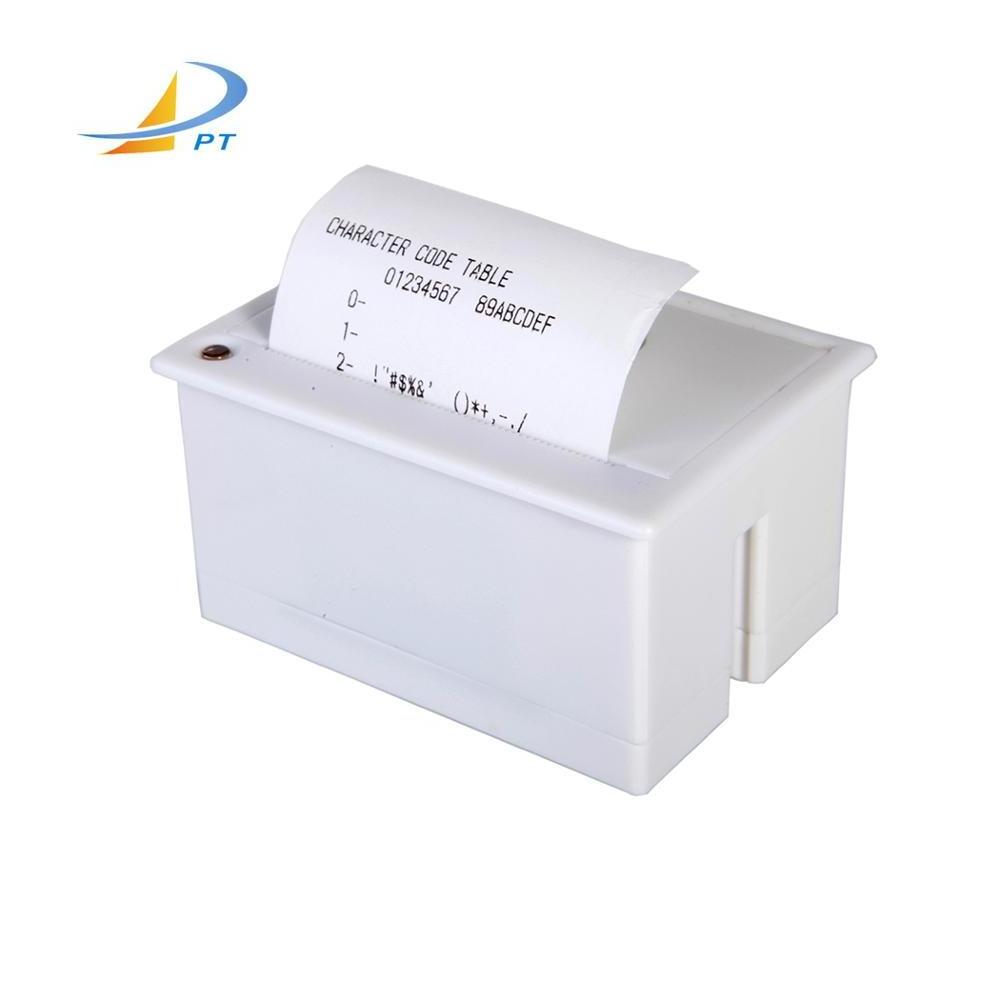

58mm mini thermal panel taxi receipt embedded printer BT-4
1) Feature:
- Easy paper loading
- Low noise thermal printing
- Different interfaces optional
- Front panel make paper replacement easily
- Easily embedded to any kinds
- of instruments and meters, Taxi Billing Machine
2) Application:
- Medical Equipment/taxi printer
- Measureing equipment
- Security Equipment
- Analyzing Instrument&Meter.
- ID Automation and Instruments
- Hospitality and Retail;EFTs POS
- Fiscal printers;Gas pumps
3) Specification:
|
Printing Method |
Thermal Line |
|
|
Printing Speed |
50-90mm/s |
|
|
Resolution |
8 dots/mm, 384 dots/line |
|
|
Effective Printing Width |
48mm |
|
|
Character |
Character Set |
ASCII,GB2312-80(Chinese) |
|
Print Font |
ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24 |
|
|
Paper Spec. |
Paper Type |
Thermal paper |
|
Paper Width |
57.5± 0.5mm |
|
|
Paper Roll Diameter |
Max: 30mm |
|
|
Reliability |
MCBF |
5 million lines |
|
Interface |
RS-232/TTL/USB |
|
|
Insert Depth |
50mm |
|
|
Power Supply (Adapter) |
DC5V-9V/12V |
|
|
Physical |
Outline Dimension (WxDxH) |
82x58x45mm |
|
Installation Port Size |
77 x 53mm |
|
|
Color |
Beige/Black |
|
|
Environment |
Operating Temp |
5°C ~ 50°C |
|
Operating Humidity |
10% ~ 80% |
|
|
Storage Temp |
-20°C ~ 60°C |
|
|
Storage Humidity |
10% ~ 90% |
|
