Small sand mining river and lake cleaning machine for sale

Small sand mining river and lake cleaning machine for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $250000

≥2 Sets

US $249000

≥3 Sets

US $248000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Diesel engine:: Cummins

Pump flow:: 1600m3/hr

Output:: 160-320m3/hr

Mean draft:: 1.10m

Discharge distance:: 1000m

Structure:: Easy to dismantle and set up

After-sales service:: OEM service

Seciality:: Compact, lower cost machine with high level performace

Quick Details

Dredging Depth:: 15 m

Draught:: 125 cm

Place of Origin:: Shandong, China

Diesel engine:: Cummins

Pump flow:: 1600m3/hr

Output:: 160-320m3/hr

Mean draft:: 1.10m

Discharge distance:: 1000m

Structure:: Easy to dismantle and set up

After-sales service:: OEM service

Seciality:: Compact, lower cost machine with high level performace

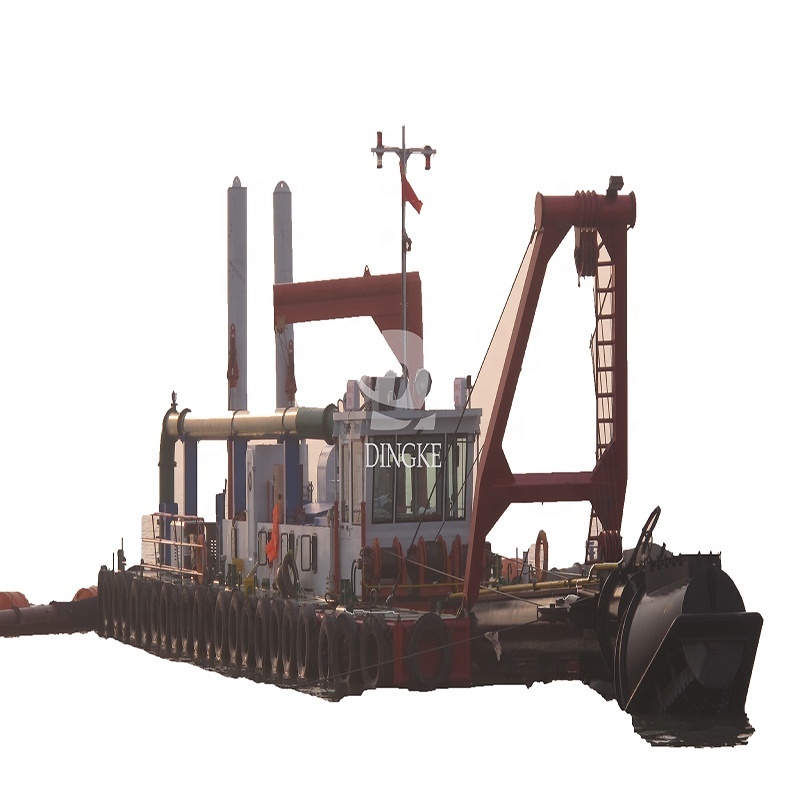

Cutter suction dredger

Introduction

This ship suit shadowing sea (waves less)and follow water area operation requirements that is Non-self-propelled dredger assembled the whole steel welded.
Main Principle:first through Bridge hydraulic cutter underwater excavation of soil was excavated sediment rotating reamer driven with water to form a fluid medium containing certain ores, located in the hydrodynamic cutter circle at the mouth of the mud pump suction , into the pump and get some energy out through the pipeline.

Cutter

The function of the cutter is to cut and agitate the sediment at the bottom of the river .

Dredging Arm

The length of the dredging arm determines the depth of the dredger, the general range is about 6m-35m.

Dredge Pipe

The dredge pipe is mainly used to transfer the mud or sand pumping up from the dredger to the stern.

Model	Dredging Depth	Pump capacity	Discharge distance	Total Power
DK-CSD200	8.0m	500 m3/h	500 m	224 kw
DK-CSD250	12.0m	800 m3/h	800 m	336 kw
DK-CSD300	14.0m	1200 m3/h	1200 m	559 kw
DK-CSD400	15.0m	2200 m3/h	1500 m	746 kw
DK-CSD450	15.0m	3000 m3/h	1500 m	895kw
DK-CSD500	16.0m	3500 m3/h	2000 m	1231 kw
DK-CSD550	18.0m	6000 m3/h	2000 m	1690 kw

Dredger details

Pump for Sand Dredger

1.Structure good,WN dredger pump adopts semi double shell structure, which reduces unnecessary auxiliary structure and process structure.
2.Advanced hydraulic model with high efficiency. The efficiency of the WN mud pump is 2-3 percentage point higher than before. In this way, lower energy consumption can be achieved .

Engine for the Sand Dredger

1.Cummins Engine is global warranty,spare parts can be available in short time.Environmental protection and Energy conservation
2.The main engine driven the dredge pump and auxiliary engine drives hydraulic system including cutter,swing winches, ladder winch and the spud rams etc.

Pontoon for the Sand Dredger

The dredger pontoon is with dismantle type and box-like structure, In order to transported convenient by truck, easy installation at working site.
And it is sandblasted and painted by 4 layers of marine epoxy paint suitable for saltwater service.The Zinc anode can be used to give better anti-corrosion function.

Cab for the Sand Dredger

The cab of the dredger is mainly for the operation personnel, including operation platform, air conditioner (or fan), monitoring device. The operator can perform various operations on the dredger through c ontrolling the operating platform , monitor the operation of the dredger and ensure the normal operation of the dredger.

Other parts

Winch

Spud Carriage

Bridge

Hydraulic Pipe

Packing & Delivery

Our facotry

Qingzhou Dingke Machinery Equipment Co.,Ltd, was established in 2003, a leading manufacturer of cutter suction dredger in China, and has established long cooperation relationship with navigation bureau, ship design institutes.

Our main products: Cutter suction dredger, cube wheel dredger, gold mining machine, and all the sand or gold ming equipment. Our equipments are highly accepted by the clients from all over the world.
