Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shangtuo
-
Dimensions(L*W*H):
-
720mm(L)*760mm(W)*1470mm(H)
-
Weight:
-
480 KG
-
Certification:
-
CE Certification
-
Color:
-
sliver
-
Machine Name:
-
Automatic Glass silk screen printing machine with rotary system
-
Printing speed:
-
2400pcs
-
Application area:
-
200x300mm
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
AC110V/220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shangtuo
-
Dimensions(L*W*H):
-
720mm(L)*760mm(W)*1470mm(H)
-
Weight:
-
480 KG
-
Certification:
-
CE Certification
-
Color:
-
sliver
-
Machine Name:
-
Automatic Glass silk screen printing machine with rotary system
-
Printing speed:
-
2400pcs
-
Application area:
-
200x300mm

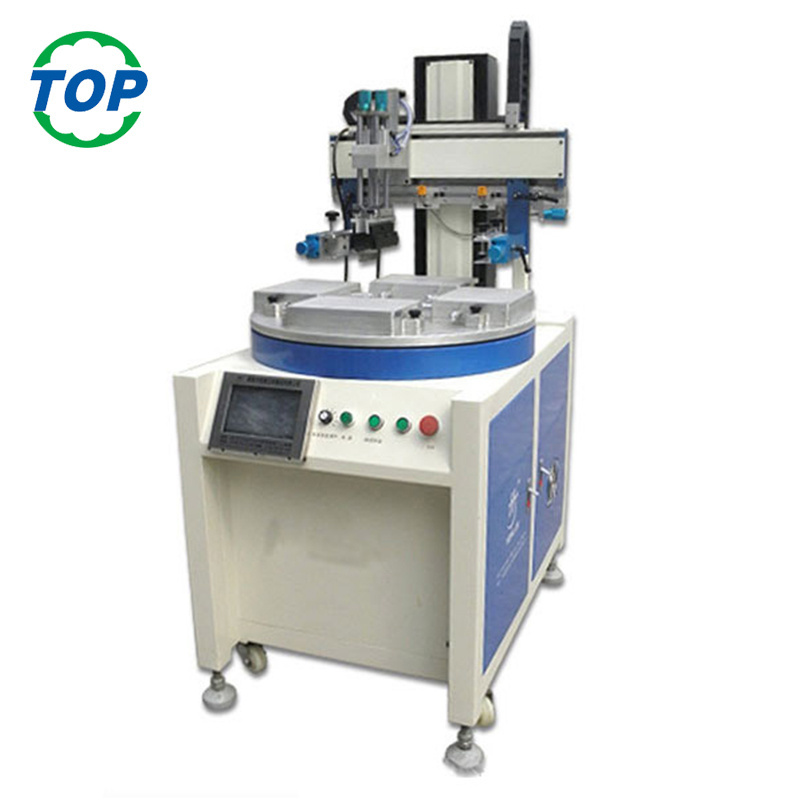

Automatic Glass silk screen printing machine with rotary system
Parameter:
1. Printing colors: one color by one color
2. Printing method: continuous 1 circle
3. Speed:1200times/Hr
4. Max. Mesh Frame:500mmx650mm
5. Max Printing size:180x250mm
6. Dimater:600mm
7. Max printing product height:80mm
8. Mesh Frame up/down stroke:200mm
9. Doctor blade right/left stroke:300mm
10. Mesh frame height adjust:80mm
11. Control Panel: PLC
12. Control Power: 12VDC
13. Supply Voltage: 220VAC 50/60Hz 1.5kw
14. Air compressor:6bar
15. Consume air compressor:2.1L
16. Device size: 720mm ( L ) *760mm(W)*1470mm(H)
17. Gross Weight:480KG
Feature:
1.Rigid CNC Alloy Aluminum Casting Machine Frame.
2. Microprocessor control panel, simple and easy to use.
3. Machine with sealed ink cup device for environmentally friendly (low smell, small volatilization).
4. Printing stroke, printing speed adjusting available.
5. SMC component parts, HIWIN Guide rail, OMRON electric parts, FESTO Driven
6. Install safety device (foot switch, emergency stop switch, protection cover) to make sure the
operator's safety, which is complied with CE certificate).
7. Control circuit is Panasonic PLC, the position is accurate, and the performance is excellent
8.Automatic loading and unloading system
