Quick Details
-
Row Distance(mm):
-
600 - 800 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sinoway
-
Dimension(L*W*H):
-
2720*1300*1180
-
Weight:
-
1400 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-

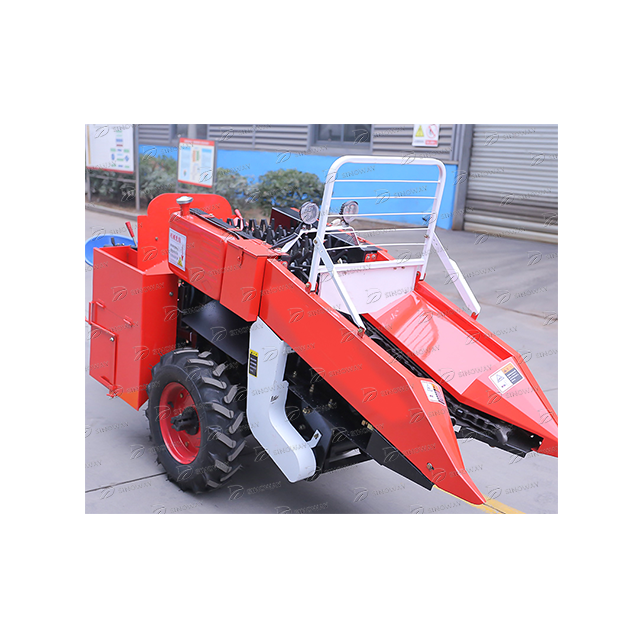

corn seed combined harvester
-
Function:
-
Single Row Corn Harvester
-
Color:
-
Red
-
Minimum Ground Clearance:
-
200 mm
-
Rated power:
-
18.4kw
-
Rated speed:
-
2200r/min
-
Dimensions:
-
3950x910x1460mm
-
Operating hour productivity:
-
0.05-0.12hm
-
Cutting width (mm):
-
2000/2200mm
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
650 mm
-
Tractor Power(HP):
-
14 - 25 HP
-
Row Distance(mm):
-
600 - 800 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sinoway
-
Dimension(L*W*H):
-
2720*1300*1180
-
Weight:
-
1400 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-
corn seed combined harvester
-
Function:
-
Single Row Corn Harvester
-
Color:
-
Red
-
Minimum Ground Clearance:
-
200 mm
-
Rated power:
-
18.4kw
-
Rated speed:
-
2200r/min
-
Dimensions:
-
3950x910x1460mm
-
Operating hour productivity:
-
0.05-0.12hm
-
Cutting width (mm):
-
2000/2200mm
Product Description
Hand front corn harvest crushing straw integrated machine, about 2 mu per hour.
Complete corn ear picking and straw crushing function in one row. Equipped with spiking bucket full can take off the filling bag, stubble height adjustable, tension clutch work safety, turning radius small easy to operate. The machine receives corn every hour one to two mu of straw directly crushing, peeling clean, ear height above 60 cm can be harvested, the higher the straw light rod rate.
Specification
|
model
|
specifications
|
CM4YZP-2
|
CM4YZP-1
|
|
|
Matching engine
|
type
|
Four cylinder, water cooled, four stroke
|
Single cylinder, water cooled, four stroke
|
|
|
|
specifications
|
4D-36E2C
|
1100.1105.5 1110.1115
|
|
|
|
Rated power
|
34
|
11.03-16.7
|
|
|
|
Set the speed
|
2400
|
2200
|
|
|
|
The red number
|
4
|
1
|
|
|
Overall dimensions
|
|
850x1450x2600
|
3950x910x1450
|
|
|
Use quality
|
|
2680
|
700
|
|
|
Lines of work
|
|
2
|
1
|
|
|
Applicable scope of row spacing
|
|
420-890
|
/
|
|
|
The biggest unloading grain level
|
|
2120
|
/
|
|
|
If the serviceLargest conveyor by height
|
|
1600
|
/
|
|
|
The minimum clearance from the ground
|
|
150
|
200
|
|
|
Minimum radius through
|
Turn left (mm)
|
7000 (outer)
|
/
|
|
|
|
Turn right (mm)
|
7000 (outer)
|
/
|
|
|
Theory of operation speed (km/h)
|
|
2.2-5.0
|
/
|
|
|
Operating hours productivity (hm2 / h)
|
|
0.15-0.3
|
0.05-.012
|
|
|
unitBy consumption (ka/hm2)
|
|
<25
|
/
|
|
Application
It can achieve corn ear picking, box collection, straw crushing and returning to the field, avoid the phenomenon of weeds tangling sticks, reduce the power consumption of ear picking, that is, open and inverted fruit box, effectively improve the work efficiency, and is suitable for the vast rural field roads and small and medium-sized plots of operation needs. The implementation of straw returning to the field of corn harvest as far as possible in the fruit ripening interval 3-5 days in the harvest operation, so that the corn grains more full, fruit water content is low, favorable peeling operation, straw yellow, water reduction is conducive to the straw crushing, can relatively reduce power loss.
Our Advantages
Corn bar harvester hand - held corn picker diesel electric start single row bar harvester
(1) Simple structure, cheap price, wide penetration rate, suitable for every household to buy
(2) With more than 10 horsepower walking car supporting, every household can use
(3) Convenient installation and maintenance, compared with similar models to save fuel consumption
(4) Harvest ears and chop stalks at the same time, multi-purpose in one machine
(5) The transformation radius is small, the operation is flexible, and the plot is small
