- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Power type:
-
Air-cooled Diesel Engine
-
Productivity:
-
6-10 m3/h
-
Certificate:
-
ISO9001:2015
Quick Details
-
Mixing Power:
-
6HP
-
Place of Origin:
-
China
-
Product name:
-
TOBEMAC Brand 250l concrete mixer for sale
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Power type:
-
Air-cooled Diesel Engine
-
Productivity:
-
6-10 m3/h
-
Certificate:
-
ISO9001:2015
Product Application

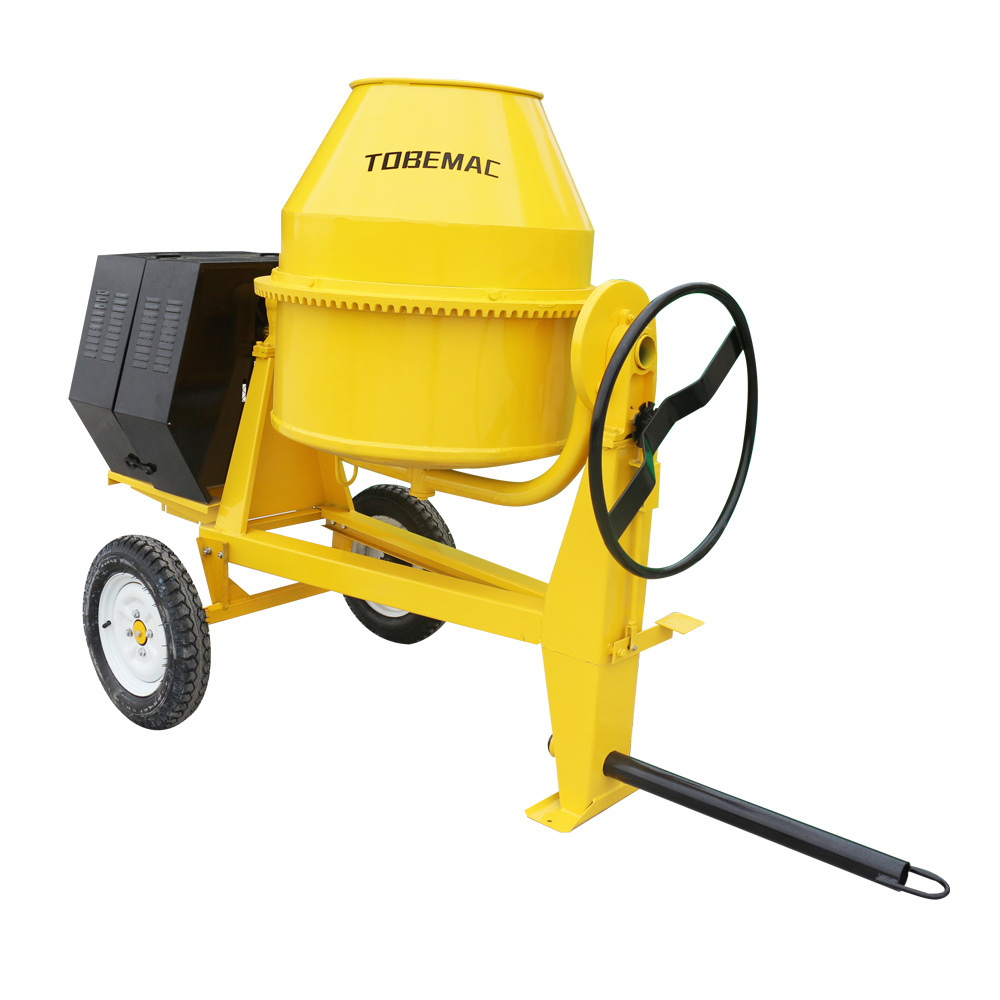

CM350-2A
Tilting Drum Concrete Mixer with Diesel Engine Power
i
s a concrete mixer of Tilting drums which discharge concrete by Sterring wheel, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle
0.23 cubic meters of concrete
.
The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore,
CM350-2A Concrete Mixer
is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Main Features of TOBEMAC Brand 250l concrete mixer for sale
1.
All-steel construction,
Mini Concrete Mixer has long life span.
2.
Large wheels,
It's easy to move the Mini Concrete Mixer to anywhere.
3.
Diesel/gasoline/electric motor,optional as customers' requirement.
Mini Concrete Mixer is powerful.
4.
Cast iron gear
for Mini Concrete Mixer steady and silent working.
5.Spray painted surface,
colour as your request.
6.EPA certificated wheels,wheels size:520mm.
7.Guarantee time:
ONE YEAR
warranty
8.water supply mode:
direct input
9.Discharging
:semi-automatic
Mixing Drum
Material:
Q235 Wear resistant Steel Plate
Details: The Drum Thickness is 3 mm ,made by Q235 Wear resistant Steel Plate.
The bottom of our Mixing Drum is made by 4 mm Steel Plate ,Others is only 3 mm.. 5 mm as Option.
Heavy Duty Chassis
More Strong and Durable.
Easy to cope with the complex environments.
Cast iron Gear Ring
Each Gear Ring and Bevel Ge ar have been treatment by the strict lathe finishing.
It's good
for Mini Concrete Mixer steady and silent working.
Unbreakable Bow for Supportng the Mixing Drum
Name:
Drum Supporting Bow
Details:
Made by the
Circular tube,Tube Diameter
90mm
.
Single shot shaping technique.
No welding in the Corner.
Make sure the Bow doesn't break during use .
MUCH MORE STRONG AND BETTER THAN THE SQUARE TUBE WELDING BOW.
Portection Cover for Engine
Material:
1.8 mm Steel Plate
Features:
Made by Steel Plate,which
thickness is 1.8 mm,
can protect the Engine from damaged .
Others
only 1.5mm or 1.2 mm.
What's more,because of the Engine was setted in the cover, the Dust can not access the engine easily,and the
engine could have a longer service life
.
Option 1:Equip with Water-cooled Diesel Engine
Name:
Water-cooled Diesel Engine
Brand:
JIANGDONG Brand,China TOP brand.
Original:
China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.
Single Cylinder, Horizontal ,4-stroke ,Water-cooled Diesel Engine
Other Brand Engine is as Option.
Option 2:Equip with Air-cooled Diesel Engine
Name:
Air-cooled Diesel Engine
Brand:
KAMA Brand
,China TOP brand.
Original:
China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits. Single Cylinder, Horizontal ,4-stroke ,
Air-cooled Diesel Engine.
Other Brand Engine is as Option.
Option 3 :Equip with Electric Motor (110V/220V/380V)
Name: Electric Motor
Original: China
Domestic famous Motor, strong driving force,high economic benefits.
220,60Hz,3-Phase
380V,50Hz,3-Phase
110V,60Hz,3-Phase
as option
Option 4 :Equip with Gasoline Engine
Brand:International Brand,HONDA, ROBIN,KOHLER as option
Chinese Brand available.
Shock absorber
Shock absorber system
for diesel engine cement mixers protects the structure of the frame and reduces vibrations during use.
Powder coating for surface
Powder coating ensures UV protection, durability and resistance
TOBEMAC WORKSHOP
2. We are certified by SGS;BV;SONCAP;PVOC;CE;ISO 9001
3. We have a Professional Construction Machinery workshop which covers an area of 20,000 sqm .Our monthly output is for construction equipment is about 200 sets , so we can assure you the punctual delivery.
4. Our main products include all kinds of Concrete Mixer, Concrete Mixer Truck, Hoisting Machinery, Earthmoving Machinery,Compacting Machinery, Block Machinery , Road Machinery and etc.
Our company is near the NINGBO port , you are warmly welcome to visiting our company .
FAQ of TOBEMAC Brand 250l concrete mixer for sale
Q: How about the quality of your products?
A: We are
factory
with
more than 25 years
of construction machinery manufacturing experience. All of our machines are manufactured strictly
according to the national and international standards,
and we take a test on each equipment before delivery. You can also
use Trade Assurance by Alibaba
for product
quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are
manufactory, not dealer,
so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The
warranty period
of our machines is
one year
, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
