- Product Details
- {{item.text}}
Quick Details
-
Power:
-
3.3KW
-
Min. Lifting Height:
-
1660mm
-
Table Size:
-
2270 * 1120mm
-
Overall Dimensions:
-
2480 * 1190 * 1660mm
-
Weight:
-
2000 kg
-
Type:
-
self propelled scissor Lift
-
Color:
-
Customized Color
-
Usage:
-
Aerial Work
-
Tire:
-
Solid Wheel
-
Drive mode:
-
Hydraulic Motor Pump System
-
Max. Working Height:
-
8-16m
-
Power source:
-
Battery Drive
-
Battery:
-
4*6V/225ah
-
Lift Drive:
-
Hydraclic
-
Material:
-
High Strength Manganese Steel
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kenancranes
-
Power:
-
3.3KW
-
Min. Lifting Height:
-
1660mm
-
Table Size:
-
2270 * 1120mm
-
Overall Dimensions:
-
2480 * 1190 * 1660mm
-
Weight:
-
2000 kg
-
Type:
-
self propelled scissor Lift
-
Color:
-
Customized Color
-
Usage:
-
Aerial Work
-
Tire:
-
Solid Wheel
-
Drive mode:
-
Hydraulic Motor Pump System
-
Max. Working Height:
-
8-16m
-
Power source:
-
Battery Drive
-
Battery:
-
4*6V/225ah
-
Lift Drive:
-
Hydraclic
-
Material:
-
High Strength Manganese Steel
Product Description

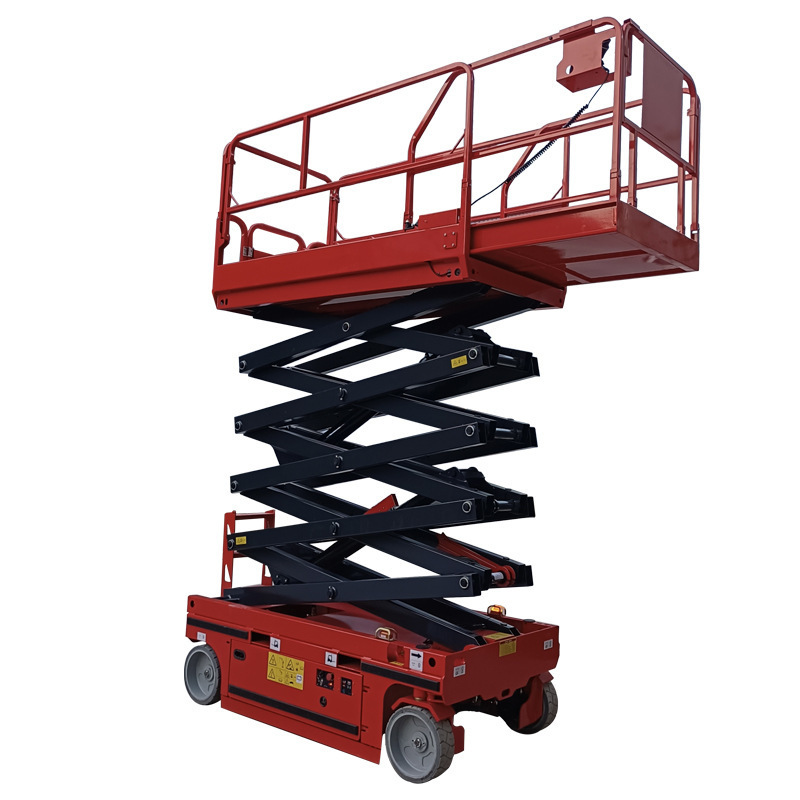

Kenancranes Self propelled lift platform can automatically fast and slow walk and turn in different work conditions,which do not need artificial traction,do not need external power supply ,and move flexibly and conveniently. It make aerial work more convenient and efficient.
Electric and hydraulic
self propelled scissor lift p
latform table
are available.
Main Features
• Robust, Reliable, and easy to maintain.
• Extendable Platform.
• 24V DC power source with long working cycles.
• Robust, Reliable, and easy to maintain.
• Extendable Platform.
• 24V DC power source with long working cycles.
Motor Pump .
Power off and fall preventione, mergency descent, Overload high voltage protection.
Hydraulic Cylinder
Built-In Explosion-Proof Valve, Sealing Ring Adopts Brand, Make The Lifter More Reliable And Robust, Noise-Free Boosting And Work Smoothly.
Operation Handle
Easy Control On Platform For Lifting Up&Down, Moving Or Steering With Speed Adjustable.
Maintenance-free Battery
Strong overcharge resistance, large starting current, long storage time.
Product Advantages
Product Parameters
|
Self-propelled Hydraulic Drive
|
|
|
|
|
|
|
||||||
|
Model
|
Working Height
|
Platform Height
|
Platform Dimensions
|
Working Loads
|
Lifting Speed
|
Total Weight
|
||||||
|
KSL-06A
|
8m
|
6m
|
2.29*0.81*1.1m
|
380kg
|
3-5m/min
|
1880kg
|
||||||
|
KSL-06
|
8m
|
6m
|
2.29*1.13*1.1m
|
550kg
|
3-5m/min
|
2050kg
|
||||||
|
KSL-08A
|
10m
|
8m
|
2.29*0.81*1.1m
|
230kg
|
3-5m/min
|
2030kg
|
||||||
|
KSL-08
|
10m
|
8m
|
2.29*1.13*1.1m
|
450kg
|
3-5m/min
|
2190kg
|
||||||
|
KSL-10
|
12m
|
10m
|
2.29*1.13*1.1m
|
320kg
|
3-5m/min
|
2500kg
|
||||||
|
KSL-12
|
13.8m
|
11.8m
|
2.29*1.13*1.1m
|
320kg
|
3-5m/min
|
2895kg
|
||||||
|
KSL-14
|
15.8m
|
13.8m
|
2.67*1.13*1.1m
|
227kg
|
3-5m/min
|
3390kg
|
||||||
|
Self-propelled Electric Drive
|
|
|
|
|
|
|
||||||
|
KSLD-03
|
5m
|
3m
|
1.29*0.7*1.1m
|
240kg
|
4-6m/min
|
815kg
|
||||||
|
KSLD-04
|
6m
|
4m
|
1.29*0.7*1.1m
|
240kg
|
4-6m/min
|
890kg
|
||||||
If you want to know more details, please send them to us in the inquiry. We will provide you with high quality products and services.
