Quick Details
-
Model Number:
-
XZ-5101,XZ-5102,XZ-5104,XZ-5105
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10~+80C
-
Max. Current:
-
10A
-
Material body:
-
zinc metal alloy
-
Contact Form:
-
1NC1NO
-
Feature:
-
Double spring inner switch
-
Lever:
-
Variety of levers
-
Electrical Life:
-
100,000 times above
-
Mechanical Life:
-
1,000,000 times above
-
Operating humidity:
-
<85%
-
Certifications:
-
CE, RoHS
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XZ-5101,XZ-5102,XZ-5104,XZ-5105
-
Protection Level:
-
IP66
-
Operating Temperature:
-
-10~+80C
-
Max. Current:
-
10A
-
Material body:
-
zinc metal alloy
-
Contact Form:
-
1NC1NO
-
Feature:
-
Double spring inner switch
-
Lever:
-
Variety of levers
-
Electrical Life:
-
100,000 times above
-
Mechanical Life:
-
1,000,000 times above
-
Operating humidity:
-
<85%
-
Certifications:
-
CE, RoHS

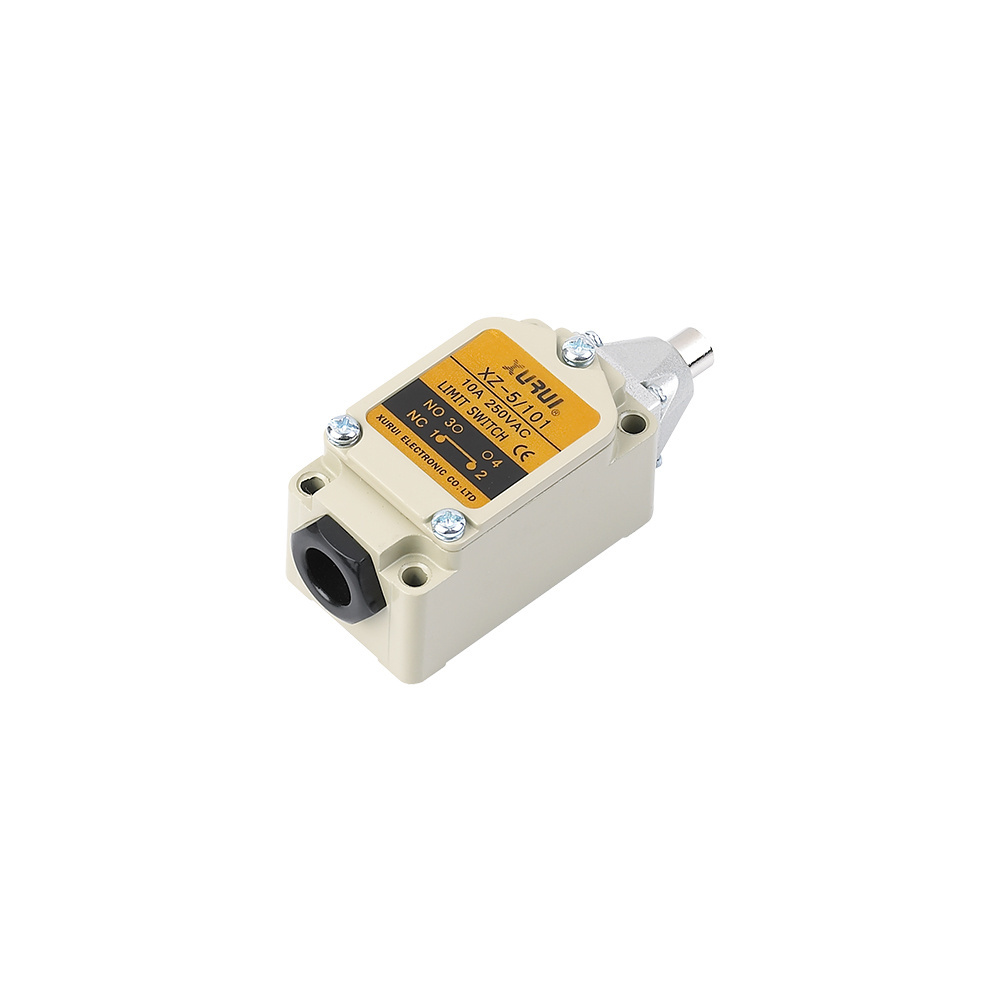

Characteristics and Using:
·Strong Zinc cast outer shell,strong structure and high mechanical strength;
·Preventing oil,water and pressure;
·Double way switch, double spring inner switch;
·Variety of levers;
·Widely used in Mechanical equipment ,automatic machine, and instrument,
electro motion tool etc.
Specification:
Mounting Holes & Contact Form:
Product Structure:
XZ-5/101 Dimension:
XZ-5/102 Dimension:
XZ-5/104 Dimension:
XZ-5/105 Dimension:
