Quick Details
-
Certificate:
-
CE ROHS
-
Welding material:
-
PE PPR PP PVDF
-
Welding Speed:
-
1-15m/min(adjustable)
-
Model:
-
Top2000B
-
Packing:
-
Strong Wooden Case
-
Weight:
-
23kg
-
Power:
-
1800W
Quick Details
-
Place of Origin:
-
China
-
Product name:
-
Plastic welding machine
-
Application:
-
Hot air weld
-
Certificate:
-
CE ROHS
-
Welding material:
-
PE PPR PP PVDF
-
Welding Speed:
-
1-15m/min(adjustable)
-
Model:
-
Top2000B
-
Packing:
-
Strong Wooden Case
-
Weight:
-
23kg
-
Power:
-
1800W
Product Description

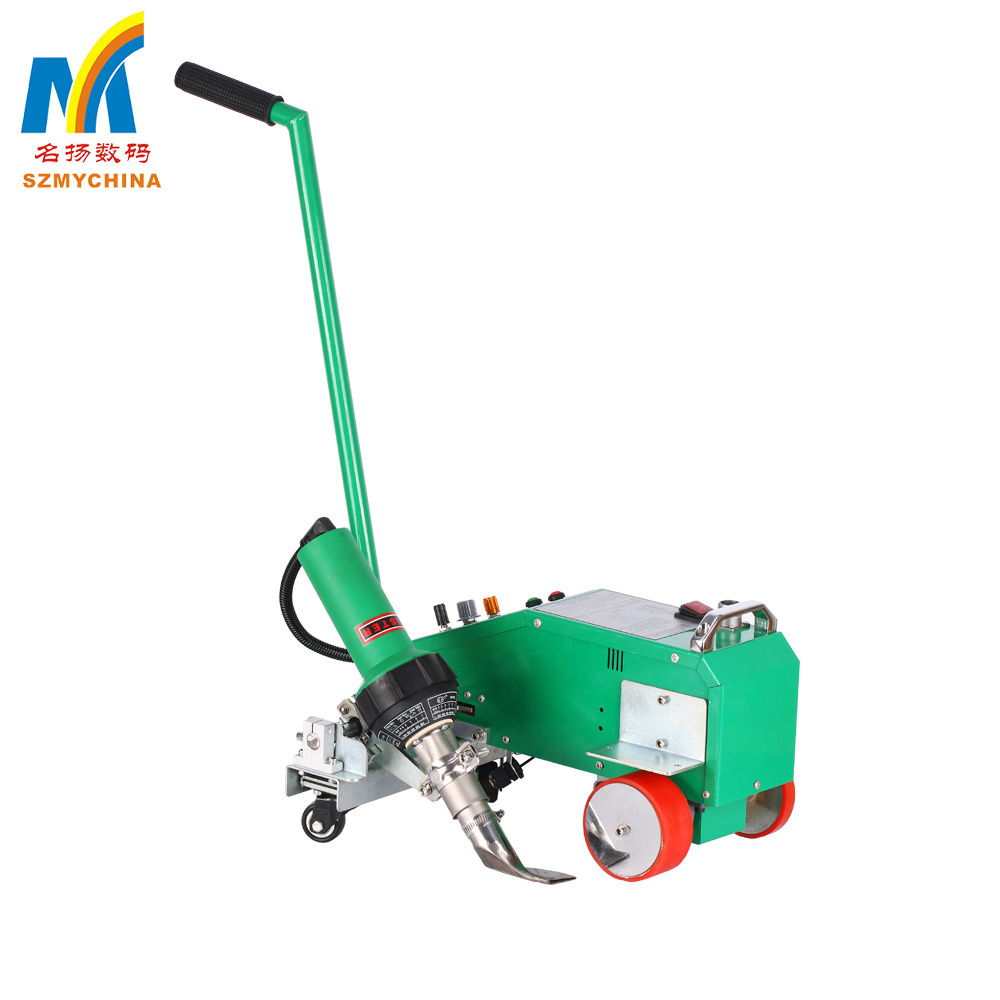

Top2000B flex banner welding machine
The automatic banner welding machine is designed to weld plastic materials. It can weld advertising inkjet fabric, inkjet cloth, light box cloth,PVC banner cloth,plastic cloth, tarpaulin and other PVC, PE, DHPE, LDPE, EVA, Pp plastic materials that can be hot melted. It is small, light and easy to operate. It is equipped with temperature feedback sensor. The sener can always monitoring the temperature of the outlet to keep a constant temperature.
It uses advanced PID control technology, and adjust the power to make the temperature more constant
automatically,the fluctuation is within 1 degrees. This function can make the welding result stronger. It also
can avoid leakage. This machine is more suited to fast welding of large roofs
Technical Parameters of hot air seam welding machine :
|
Welder Model
|
Top Grade 2000 B
|
|
Rated voltage
|
220 V
|
|
Rated frequency
|
50 Hz
|
|
Rated power
|
1800 W
|
|
Welding temperature
|
20-650℃
|
|
Welding width
|
20-50 mm
|
|
Size(L*W*H)
|
420*340*270 mm
|
|
Net weight
|
14 Kg
|
|
Welding speed
|
1-15 m/min
|
Opreation Step:
1. Make the cloth for seaming flat and put it underneath.Fix both ends by adhesive tape or something else.
2. The overlap width of the two pieces is about 3 mm,the width of the nozzle of hot seaming machine.
3. Put the machine nozzle between two overlap pieces.
The press wheel should be at left side of nozzle.The nozzle also need align with side of upper piece of cloth.
4. Switch on the motor power and then adjust speed.
5. Turn on the movement switch.
6. Press heating power key to adjust temperature.
7 Turn the bar by anticlockwise to fix the position to startup automatic movement.The machine will go along with the overlap path by itself.
8. Turn the bar by clockwise to cease the automatic work.
9. The operator should control the moving direction and make sure the nozzle connect both with upper and under piece cloth.
Detailed Images
Our Service
ShenZhen MingYang Digital Technology company offer high quality plastic welding equipment for accurate plastic welding. Accurate plastic welding is very important for plastic industry.We offer perfect after service, and offer free maintenance for machines. We could offer all spare parts if customer wants to do maintenance by themselves, and offer all the structure diagram for free, includes the welding technical guide
We assure you :
1.With high quality products;
2.The most superior price;
3.Timely delivery;
4.High quality after-sales service.
We will arrange the shipment 7 days after payment with express like TNT,UPS,DHL and FEDEX etc.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
485*285*280mm
|
|
|
Weight
|
23KG
|
|
|
delivery
|
1-5 days after receiving payment
|
|
|
Packaging Details
|
standard wooden case
( safe for shipping
)
|
|
