Quick Details
-
Type:
-
hardware, Other Door & Window Accessories
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
SG-4-005
-
thickness:
-
1.5mm,2mm,2.5mm
-
track:
-
single,double
-
Material:
-
zinc-plated
Quick Details
-
Project Solution Capability:
-
Others
-
Application:
-
garage, garage door, industrial door and glass garage door
-
Design Style:
-
Modern
-
Type:
-
hardware, Other Door & Window Accessories
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
SG-4-005
-
thickness:
-
1.5mm,2mm,2.5mm
-
track:
-
single,double
-
Material:
-
zinc-plated

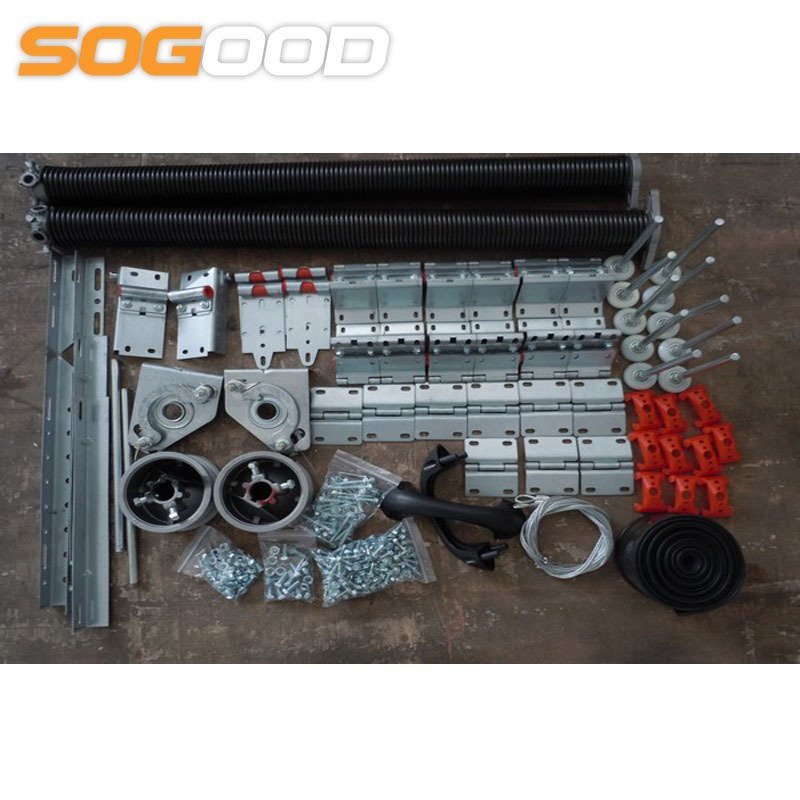

accessories for sectional doors garage door kits
Garage Door Hardware List
| 1 | Double steel track with nylon conner | 12 | Top sealing |
| 2 | Hinges | 13 | Aluminum bottom sealing |
| 3 | Top bracket | 14 | 1.5m multi-angle track |
| 4 | Bttom bracket | 15 | Screws |
| 5 | Cable | 16 | Handle |
| 6 | Cable drum | 17 | Struct(big door) |
| 7 | Roller | 18 | Emergency lock(for option) |
| 8 | Torsion spring | 19 | Handle lock(for option) |
| 9 | Safety device for spring break | 20 | Latch (for option) |
| 10 | Shaft(hollow/K) | 21 | Window(for option) |
| 11 | Side sealing | 22 | Garage door opener |
Glass Garage Door Hardware List
| 1 | Single steel track with L-profile | 12 | Top sealing |
| 2 | Hinges | 13 | Bottom sealing |
| 3 | Top bracket | 14 | 2.5m multi-angle track |
| 4 | Aluminum bottom bracket | 15 | Screws |
| 5 | Cable | 16 | Garage door opener |
| 6 | Cable drum | ||
| 7 | Roller | ||
| 8 | Torsion spring | ||
| 9 | Safety device for spring break | ||
| 10 | Soild shaft | ||
| 11 | Side sealing |
Industrial Door Hardware List
| 1 | Single steel track with L-profile | 12 | Top sealing |
| 2 | Hinges | 13 | Aluminum bottom sealing |
| 3 | Top bracket | 14 | 2.5m multi-angle track |
| 4 | Safety device for cable break | 15 | Handle |
| 5 | Cable | 16 | Screws |
| 6 | Cable drum | 17 | Struct(big door) |
| 7 | Roller | 18 | Latch(for passing door) |
| 8 | Torsion spring | 19 | Closer(for passing door) |
| 9 | Safety device for spring break | 20 | Buffering( for option) |
| 10 | Shaft(hollow/K/soild) | 21 | Window(option) |
| 11 | Side sealing | 22 | Industrial door opener |
WEATHER SEAL: TRACK:
material: EPDM material: galvanized steel
good elasticity and anti-compressive deformation thickness: 1.5mm,2.0mm
resistance aging and ozone and chemical action nylon connector
good weather resistant
SPRING: SHAFT:
wire diameter: 5.0-11.5mm diameter: 25.4mm
Surface treatment: antirust oil,oil-tempered, hollow shaft, K shaft, soild shaft
dacromet coating,electrophoresis used for residential and commercial
Inner diameter:2",2-5/8",3-3/4",6" door
ROLLER: DRUM:
2 inch nylon roller 8' cable drum: maximum door height 2440mm
110mm stem for single hinge 12' cable drum:maximum door height 3650mm
170mm stem for double hinges 18' cable drum: maximum door height 5500mm
3 inch stell roller For Sectional Garage Door Use,
180mm stem for industrial door standard lift only
Diameter shaft: 1"
Unit: pair
HINGE: Track:
1. Garage door hinge for non-finger protection Low Headroom: 20-40cm double track
2. Material: Zinc plating & normal Headroom: over 40cm single track
galvanized steel
3. Steel thickness: 1.8mm, 2.0mm
4. Item no for hinges: No.1 , No.2, No.3,
No4, No5, Middle hinge
5. Finished surface for panel thickness
40 mm with non-finger protection
6. Type :garage door hinge
