Quick Details
-
part:
-
PLC control with Touch screen
-
Model:
-
from 63T to 1000T
-
kind:
-
auto rubber compression molding machine
-
suit:
-
suiting for all kind of rubber molding products
-
Power:
-
50HZ
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
After-sales Service Provided:
-
Online support, Engineers available to service machinery overseas
-
Type:
-
Vertical
-
part:
-
PLC control with Touch screen
-
Model:
-
from 63T to 1000T
-
kind:
-
auto rubber compression molding machine
-
suit:
-
suiting for all kind of rubber molding products
-
Power:
-
50HZ
-
Certification:
-
CE

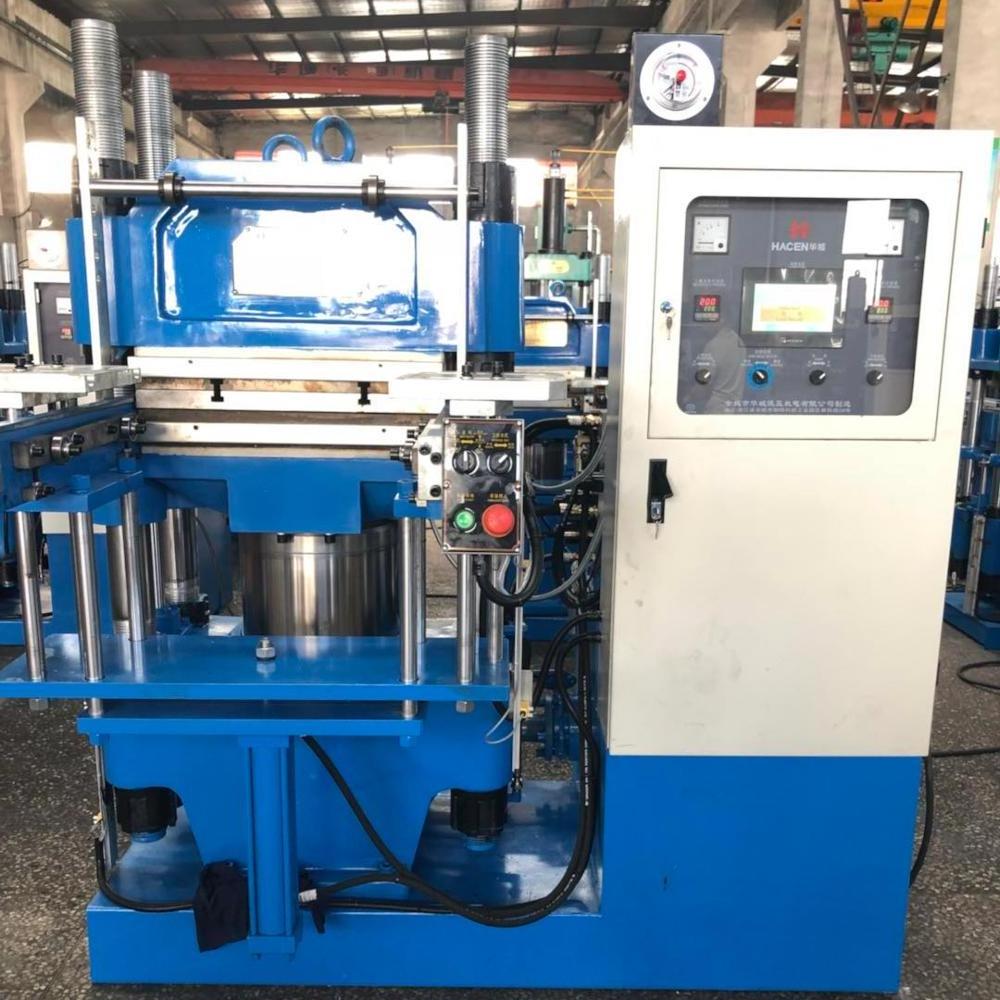

Rubber Compression molding Machine XLB-Y100T
1.function
1.High speed open/close molds, high production efficiency, low locking speed, protect mold.
2.Automatic in/out mold and ejector device, low labor strength.
3.Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
4. The electric system adopt PLC programming control, which is easy to be operated.
2.Main technical data:
|
Model |
XLB-Y630 |
XLB-Y10003 |
XLB-Y1000A |
|
|
Mold-locking forceKN |
630 |
1000 |
1000 |
|
|
Max. working pressure(Mpa) |
21 |
21 |
21 |
|
|
Block stroke(mm) |
300 |
300 |
300 |
|
|
hermo-plate size(mm) |
Electricity hot plate emigration |
360*400 |
420*420 |
500*500 |
|
pinban/liangan |
360*400 |
420×420 |
500×500 |
|
|
Max.distance of thermo-plate(mm) |
300 |
300-480 |
300-480 |
|
|
Motor power(kw) |
4 |
4+2.2 |
4+2.2 |
|
|
Model |
XLB-Y1600 |
XLB-Y2000 |
XLB-Y2500 |
XLB-Y3500 |
|
|
Mold-locking forceKN |
1600 |
2000 |
2500 |
3500 |
|
|
Max. working pressure(Mpa) |
23 |
21 |
21 |
23 |
|
|
Block stroke(mm) |
300 |
300 |
400 |
500 |
|
|
hermo-plate size(mm) |
Electricity hot plate emigration |
520×540 |
600×600 |
650×650 |
1050×1000 |
|
pinban/liangan |
500×540 |
550×600 |
650×650 |
980×1000 |
|
|
Max.distance of thermo-plate(mm) |
300-480 |
300-480 |
400 |
500 |
|
|
Motor power(kw) |
4+2.2 |
5.5+3 |
5.5+3 |
5.5+5.5 |
|
3.products and machine pictures :
4. picking pictures :
5. our exhibition :
6.The main service item on our machine
- installation and debugging: Our engineers will teach you about the installation and debugging for free.
- Technology training : Our company will offer technology training for your operation.
- After-sales service: We will supply the free repairment on this machine for one year,
but will supply the maintenance lifetime. ( the service is only for natural damage)
