BLE 5.0 KKM beacon gateway BLE4.0 wifi and ble beacon IoT Gateway

BLE 5.0 KKM beacon gateway BLE4.0 wifi and ble beacon IoT Gateway

FOB Reference Price: Get Latest Price

≥1 Pieces

US $46

≥1000 Pieces

US $36

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: KKM

Supplier Type:: original manufacturer

Product Name:: bluetooth IoT Gateway

Product feature:: BLE 5.0

Waterproof level:: IP54

Power supply:: DC 5V, or POE

Wireless distance:: BLE5.0 > 200 meters

Material:: ABS

Scanning ability:: 200 beacons per 5 seconds

Protocol:: HTTPS, MQTT

Transmitting way:: ETH RJ45 ,WiFi ,WiFi hoppen , USB (For 3G/4G dongle)

OEM:: Acceptable

Quick Details

Chipset:: 528xx

Application:: Public

Model Number:: KG01

Place of Origin:: Guangdong, China

Brand Name:: KKM

Supplier Type:: original manufacturer

Product Name:: bluetooth IoT Gateway

Product feature:: BLE 5.0

Waterproof level:: IP54

Power supply:: DC 5V, or POE

Wireless distance:: BLE5.0 > 200 meters

Material:: ABS

Scanning ability:: 200 beacons per 5 seconds

Protocol:: HTTPS, MQTT

Transmitting way:: ETH RJ45 ,WiFi ,WiFi hoppen , USB (For 3G/4G dongle)

OEM:: Acceptable

Product Description

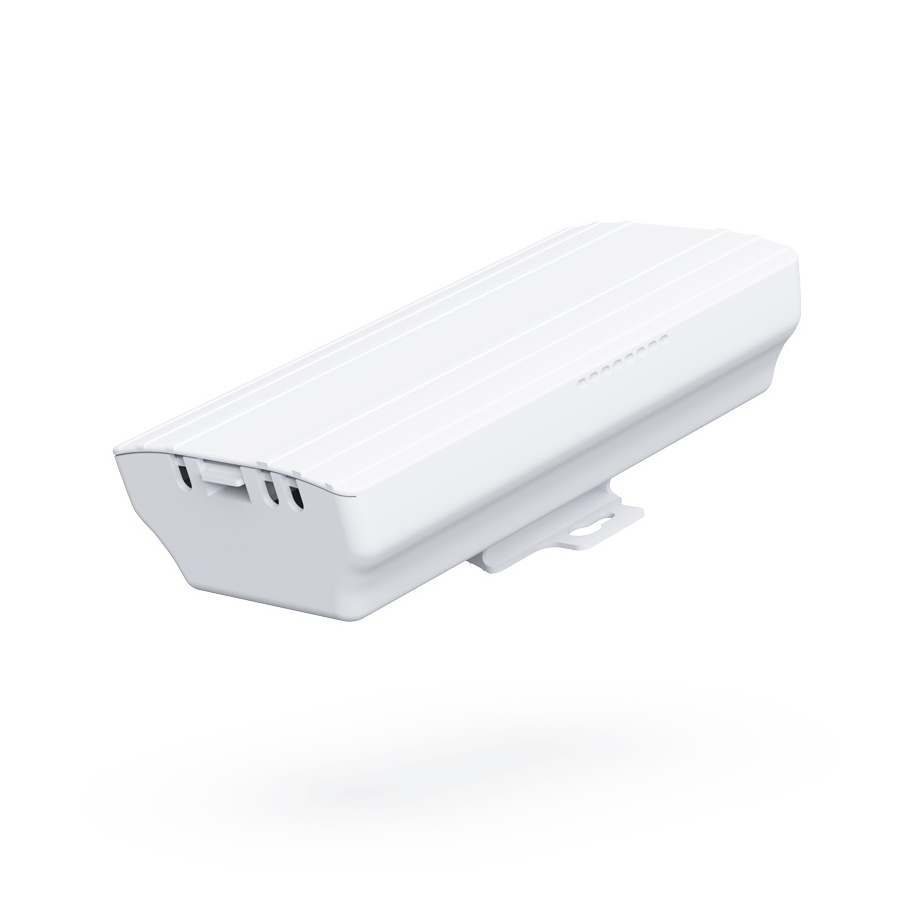

KKM IoT Beacon Gatweay with LTE/GPS support

KG01 Gateway

● Support Wi-Fi / Ethernet / Cellular
● Support iBeacon/Eddystone/Kensor and other BLE device
● Support HTTP/HTTPS, MQTT/TLS MQTT
● Powerful network diagnostics
● Hardware level WatchDog, ensure 24-hours full time data upload
● Optional 4G LTE module & GPS module
● Web portal for configuration
● CE/FCC certified

Description
1. KG01 KBeacon gateway is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. KG01 gateway support cellular (3G/4G), WiFi, WiFi hoppen, or Ethernet network connection.

2. It can be powered by DC 5V, or POE (802.3af).

3. It support Bluetooth 5.0/4.2/4.1/4.0 and newer, e.g. BLE sensor, iBeacon/Eddystone beacon, smart wristband, smart heart rate band.

General Specification

● Waterproof design
● Input: DC 5V/1A, micro-USB
● 3af/at POE DC standard
● Supports HTTP/MQTT over SSL
● Build-in NTP support
● Supports firmware update Over-the Air
● Operating temperature:-25°C ~65°C

BLE Specification

● Support BLE4.2 and BLE5.0
● With a power amplifier and LNA
● 3dBi high-accuracy antenna
● Scanning capability > 260 device per seconds
● >150meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data/send command)

Wi-Fi Specification

● Update to 300Mbps
● Supports WPA/WPA2, 802.1x enterprise EAP
● 3dBi high-accuracy antenna
● 100meters in open space
● 2T2R 2.4G frequency band
● Web portal UI configuration

Details Images

Specification

Size	173mm90mm45mm	Weight	150g
Material	Industry use plastic	Transmitting Protocol	HTTPS MQTT
Scanning Ability	>260 beacons per second	Waterproof	IP53 with smart outdoor design
Indicator	RGB LED indicator	BLE Chipset	nRF528 serie
Wireless Distance	BLE4.0/BLE4.1/BLE4.2/BLE5.0 up to 150m (The working distance will be effected by surrounding environment)
Transmitting way	Cellular (USB dongle for 3G/4G), ETH RJ45, WiFI, WiFi hoppen
Working Temp.	-40°C ~+70°C	Storage Temperature	10°C ~+25°C, ≤65%RH

Product Usage

How it works
KGateway can detect, collect and upload the data of Bluetooth in range, including iBeacon, Eddystone as well as custom format, which support BLE prococol. The gateway upload data to cloud via HTTPS/MQTT, it support the AWS, Azure and etc IoT cloud.

K1：Asset management
K21: Beacon with beep
K3: IP67 waterproof with accelerometers sensor
K4: Children's Bracelet beacon
U1: USB type beacon

K5：Wristband Beacon, support vibration, rechargeable
K6：Temperature & humidity sensor
K7: Credit card beacon with RFID
K8: Mounting Beacon, with accelerometer sensor
K9: Ultra-long battery life Beacon

Application

iBeacon/Eddystone/BLE tag receiverAsset tracking
Temperature&humidity tracking and monitoring
Advertisement
Indoor navigation & mapping
Industrial automation
Trade Show management

Company Introduction

Founded in 2008, KKM is one of the top IoT product manufacturer in China. We specialized in iBeacon/Eddystone beacon, Bluetooth Gateway, Bluetooth Key Finder, ESL, Smart lock etc. We export more than 2,000,000 IoT products every year.

Our Strength:
* Experienced and professional hardware & software R&D team. We have our own mold workshop. We provide turn-key solution on from prototype to productions.
* We are High-tech enterprises. We are also member of SIG, our product is BQB certified.
* We have over 50 patents. We also respect and protect our clients’ intellectual property as we understand the importance of intellectual property.
* We are ISO9001 certified, our products are all FCC, CE and RoHS qualified.
* We are original manufacturer with our own R&D team. Our R&D team located in Shenzhen, We have factory located both in Shenzhen and Dongguan. As original factory, we provide a competitive service & cost for you.

FAQ

1.-Can I get some samples?
-Yes, sample orders are welcome.

2. -Could I use my own LOGO or design on goods?
-Yes, customized logo and design on mass production are available.

3.-What is the delivery time?
-A week for sample;7-30 days for mass production.

4. -Can I trust you?
-Absolutely yes. We are"Alibaba" verified supplier, manufacturer with experience of 7 years. We only provide products with
excellent quality. And our quality meets CE, FCC, RoHS or EMC Standard.

5. -May I visit your factory?
-Sure, welcome at any time.We can also pick you up at airport and station.
