Quick Details
-
Brand Name:
-
SA
-
Model Number:
-
CD4
-
Product name:
-
Portable Multi gas detector
-
Detecting Gas:
-
lel h2s ch4 co o2 CO2
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow+Black
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Usage:
-
Industrial/personal
-
Display:
-
LCD Screen
-
Dimensions:
-
130x66x30mm
-
Weight:
-
500g
Quick Details
-
Type:
-
Multi gas detector, Gas detection instrument
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SA
-
Model Number:
-
CD4
-
Product name:
-
Portable Multi gas detector
-
Detecting Gas:
-
lel h2s ch4 co o2 CO2
-
Sensor:
-
Imported High-precision Sensor
-
Color:
-
Yellow+Black
-
Alarm Type:
-
Vibration+Sound+Light Alarm
-
Usage:
-
Industrial/personal
-
Display:
-
LCD Screen
-
Dimensions:
-
130x66x30mm
-
Weight:
-
500g
Product Description

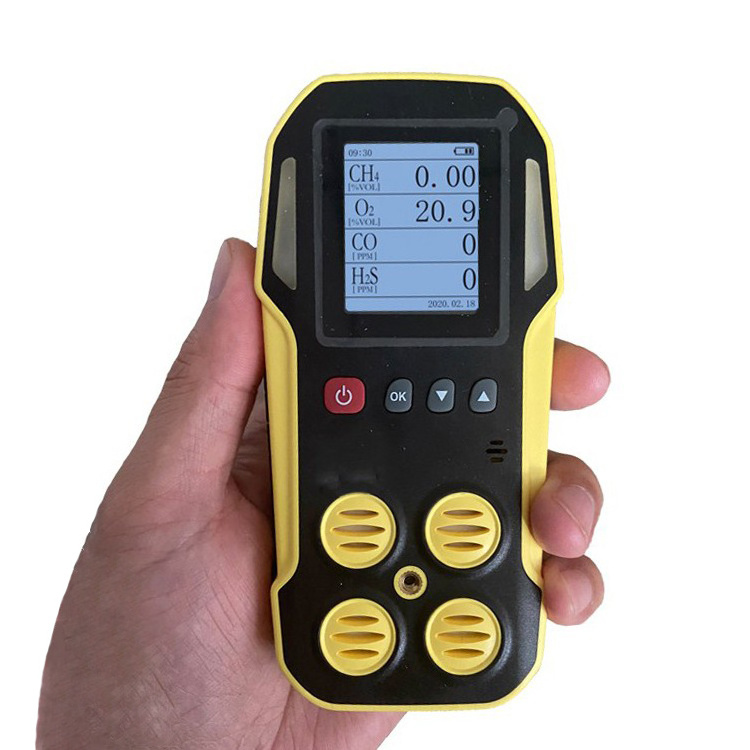

Portable Multi gas detector
A multi gas detector is a portable device designed to detect multiple gases simultaneously. A portable gas detector is usually the last line of defence to alerting operators of dangerous gas leaks.The most common sensor configuration for a multi gas detector is carbon monoxide, hydrogen sulphide, flammable (infrared or catalytic combustion) and oxygen. This configuration is commonly used for confined space entry.
We offer a range of
Multi gas
detector
s for you to choose from,like CD4 Multi-gas detecting monitor,Single gas
detector
,2 in 1 gas
detector
,3 in 1 gas
detector
,4 gas
detector
,5 in 1 multi gas detector,Vehicle gas
detector
.View our gas monitor choices below. You can also get a reliable single gas H2S
detector
,O2 gas
detector
,CO gas
detector,
and more detection instrument at SA technology.
WE can supply
Multi gas
detector
s, for personal use and portable safety applications, providing protection against a wide range of industrial gas hazards.
Specification
High sensitive Honeywell sensor detectors CH4/H2S/CO/O2/NH3 Nitrogen portable multi gas leak detector
|
Technical specification
|
Parameter
|
|
Detecting gas
|
CH4/LEL CO O2 H2S CO2 NH4 H2 SO2(optional)
|
|
|
CH4
|
|
Measurement range
|
(0.00～5.00)%Vol
|
|
Measurement error
|
(0.00～1.00)%CH4:±0.10%CH4 (1.00～3.00)%CH4:true value±10%
(3.00～4.00)%CH4:±0.30%CH4
|
|
Respond time
|
20S(T90)
|
|
Resolution
|
0.01%vol
|
|
Alarm point
|
1.00%vol(can be adjusted in whole range)
|
|
|
LEL
|
|
Measurement range
|
(0.00～100)%LEL
|
|
Measurement error
|
(1～20)%LEL:±2%LEL (20～60)%LEL:true value±2%
(60～100)%LEL:±6%LEL
|
|
Respond time
|
20S(T90)
|
|
Resolution
|
1%LEL
|
|
Alarm point
|
20%LEL(can be adjusted in whole range)
|
|
|
CO
|
|
Measurement range
|
(0～1000) ppm
|
|
Measurement error
|
(0～20)% ppm:±2ppm (20～100)ppm:±4ppm
(100～500)ppm:true value±5% (500～1000)ppm:true value ±6%
|
|
Respond time
|
45S(T90)
|
|
Resolution
|
1ppm
|
|
Alarm point
|
24ppm(can be adjusted in whole range)
|
|
|
O2
|
|
Measurement range
|
(0.0～30.0)%Vol
|
|
Measurement error
|
(0.0～5.0)%:±0.5%vol (5.0～30.0)%vol:±0.9%vol
|
|
Respond time
|
35S(T90)
|
|
Resolution
|
0.01%vol
|
|
Low Alarm point
|
18.0%vol(can be adjusted in whole range)
|
|
High Alarm point
|
25.0%vol(can be adjusted in whole range)
|
|
|
H2S
|
|
Measurement range
|
(0～100)ppm
|
|
Measurement error
|
(0～50)ppm:±3ppm (50～100)ppm:true value±10%
|
|
Respond time
|
≤45S(T90)
|
|
Resolution
|
1ppm
|
|
Alarm point
|
10ppm(can be adjusted in whole range)
|
|
Alarm sound intensity
|
80dB
|
|
Alarm way
|
Sound,light alarm
|
|
Alarm indicator light
|
can be visible in the distance of not less 20m
|
|
Sensor life
|
≥2 years(CO,O2,H2S) ≥1 years(LEL,CH4)
|
|
Working current
|
95mA
|
|
Continuous operating hours
|
≥12 hours
|
|
Battery item
|
Pl123450 3.7V/1500mA
|
|
Battery short circuit current
|
2A
|
|
Charging time
|
4-5 hours
|
|
Protection level
|
IP54/IP66/IP67
|
|
Working temperature
|
-25℃～55℃;short time for -40℃～55℃
|
|
Size
|
130*66*30mm
|
High sensitive sensors guarantee that our multi gas
detector
respond quickly and react accurately.UP to 6 in 1 gas to detect.
We have single gas
detector
s for the following gases: hydrogen sulfide (H2S), ammonia, oxygen (O2), sulfur dioxide (SO2), chlorine, carbon monoxide (CO), nitrogen dioxide, ethylene oxide, methan(CH4)and more.
Packing & Delivery
Those multi gas
detector
and accessories will be packed into carton box before shipping.Usually we deliver our multi gas
detector
packing list as below
1.Multi gas
detector
2.USD cable for power
3.AC Adapter plug(Optional)
4.User's manual
5.Calibration caps&tube
6.Back clip
7.Connect string
