Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
2.5 inch round display 480*480
-
Brand Name:
-
Wisecoco
-
Panel Type:
-
a-Si TFT-LCD, LCM
-
Resolution:
-
480(RGB)*480
-
Active Area:
-
62.64(H)*62.64(V) mm
-
Outline dimension:
-
69.19(H)*71.74(V) *3.9(D) mm
-
Brightness:
-
400 cd/m2 (Typ.)
-
Contrast Ratio:
-
1000:1 (Typ.) (TM)
-
Application:
-
Power Meters, health care, smartwatch
-
Touch Panel:
-
without
-
Signal Interface:
-
MIPI 35 pins
Quick Details
-
Type:
-
TFT
-
Display Size:
-
2.5 inch
-
Supplier Type:
-
Original
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
2.5 inch round display 480*480
-
Brand Name:
-
Wisecoco
-
Panel Type:
-
a-Si TFT-LCD, LCM
-
Resolution:
-
480(RGB)*480
-
Active Area:
-
62.64(H)*62.64(V) mm
-
Outline dimension:
-
69.19(H)*71.74(V) *3.9(D) mm
-
Brightness:
-
400 cd/m2 (Typ.)
-
Contrast Ratio:
-
1000:1 (Typ.) (TM)
-
Application:
-
Power Meters, health care, smartwatch
-
Touch Panel:
-
without
-
Signal Interface:
-
MIPI 35 pins
Product Description

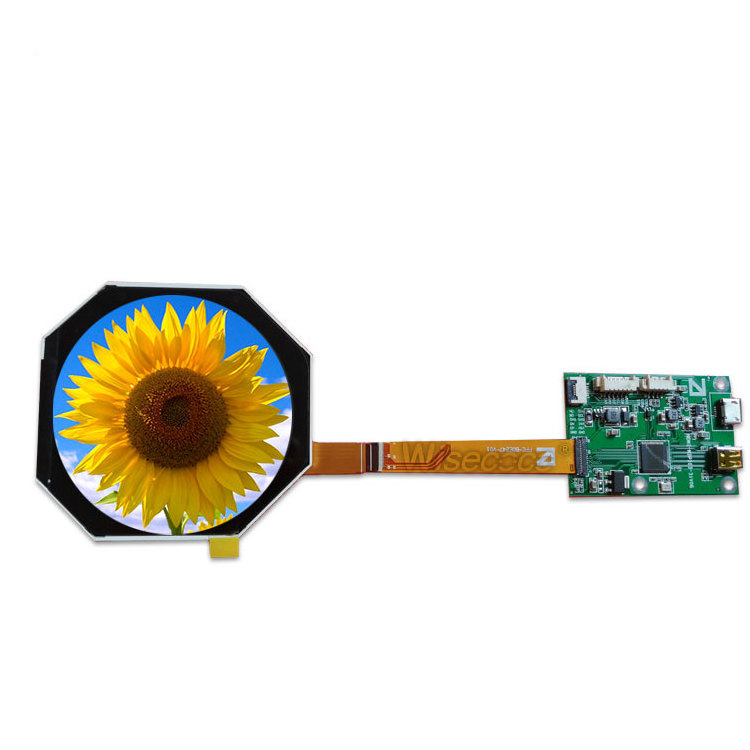

2.5 inch circular screen 480*480 IPS 2.5 inch round lcd screen display Circle TFT Panel Display
|
General Features |
|||
|
Diagonal Size |
2.5 inch |
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
480(RGB)×480 |
Configuration |
RGB Vertical Stripe |
|
Active Area |
62.64(H)×62.64(V) mm |
Outline Dim. |
69.19(H)×71.74(V) ×3.9(D) mm |
|
Bezel Area |
88.6(W)×88.6(H) mm |
Treatment |
Hard coating (7H) |
|
Luminance |
400 cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
35 (Max.)(Tr+Td) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
Operating Mode |
ADS, Normally Black, Transmissive |
|
Support Color |
16.7M 70% (CIE1931) |
Light Source |
WLED [3S2P] , W/O Driver |
|
Weight |
TBD |
Designed For |
Industrial Application; meter; Raspbery Pi |
|
Frame Rate |
- |
Touch Panel |
Optional |
|
Interface Type |
MIPI (2 data lanes) , 35 pins FPC |
||
|
Power Supply |
1.8/3.3V (Typ./Max.) |
||
|
Environment |
Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
||
