Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRED
-
Product name:
-
flail mowers
-
Certificate:
-
CE certificate
-
matched tractor:
-
20-50hp tractor
-
cutting width:
-
1200-1800mm
-
PTO shaft driven:
-
High quality .
-
After Warranty Service:
-
Spare parts
-
After Service:
-
Video technical support
-
After-sales Service Provided:
-
Overseas third-party support available
-
Port:
-
qingdao
-
Certification:
-
CE certificate
Quick Details
-
Weight (KG):
-
500
-
Type:
-
Farm Cultivator
-
Use:
-
tillage
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FRED
-
Product name:
-
flail mowers
-
Certificate:
-
CE certificate
-
matched tractor:
-
20-50hp tractor
-
cutting width:
-
1200-1800mm
-
PTO shaft driven:
-
High quality .
-
After Warranty Service:
-
Spare parts
-
After Service:
-
Video technical support
-
After-sales Service Provided:
-
Overseas third-party support available
-
Port:
-
qingdao
-
Certification:
-
CE certificate

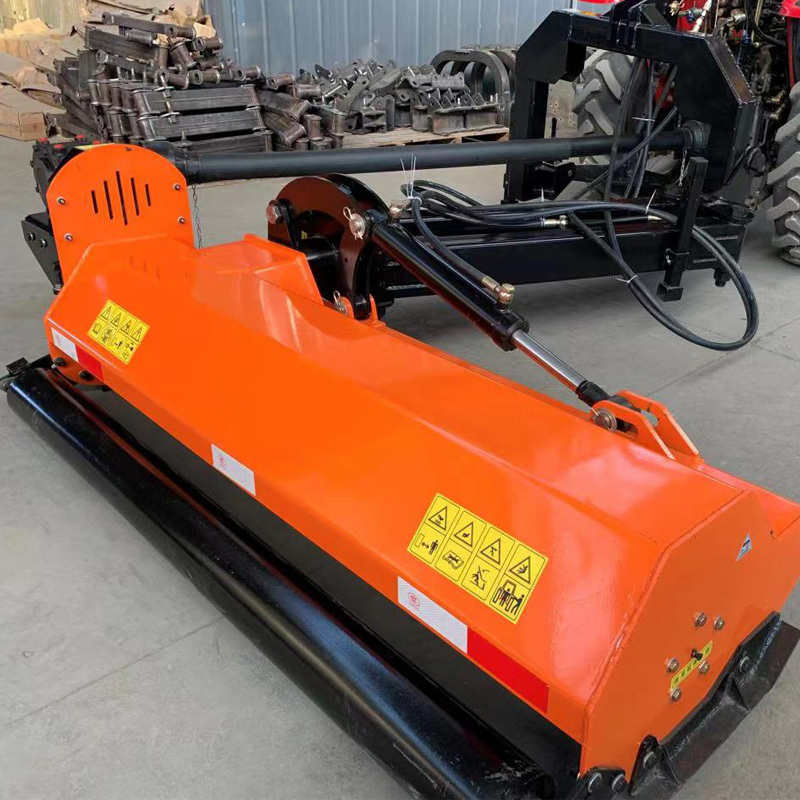

Hot Sale Best Price Flail Mower Blades Ce Approved Atv Flail Mower Flail Mower For Farm
Users:
1. The verge flail mowers are flail mowers with hydraulic arm for clearing larger, wider areas, roadsides verges, orchards and
various inclining and declining and surfaces areas, roadside verges, orchards and general farm areas.
2. Specially designed for universal use the head of the mower can be operated in line with the tractor or offset for verge
maintenance.
Features:
1. The verge mowers are suitable for roadside verge, tree trimming and general mulching.
2. Hydraulic side adjustment.
3. Hydraulic inclining adjustment
4. Rear roller wheel
5. High power 50HP gearbox
6. Self leveling
7. High strength mulching blades
8. Safety flaps
9. Extra strong and designed with safety in mind
10. Support legs for storage
11. Solid hitch
Details Images
Gear box
* Heavy duty gear box
* PTO Speed 540 r/min, 6 spline shaft, fits all tractors
* Make the mower run more stable
Hydraulic connection
* PTO shaft control blade rotation
* Two groups hydraulic output control the left and right movement and turning of the lawn mower
Hydraulic connection
* PTO shaft control blade rotation
* Two groups hydraulic output control the left and right movement and turning of the lawn mower
Blade
* Hammer blades, optional Y shape blades
* Hammer blades, optional Y shape blades
* All hammers are more durable and denser with double blades, much wider, heavier and stronger
Telescopic rod
* Hydraulic cylinder strengthened to control right and left movement
* Mower body can turn over
Product Paramenters
|
MODEL
|
BCR-140
|
BCR-180
|
BCR-200
|
BCR-220
|
|
Dimension(L×W×H)(mm)
|
1800×2225×1020
|
2200×2225×1020
|
2050×2225×1020
|
2600×2225×1020
|
|
Structure Weight(kg)
|
598
|
658
|
718
|
738
|
|
Cutting Width(mm)
|
1400
|
1800
|
2000
|
2200
|
|
PTO Turning Speed(r/min)
|
540
|
540
|
540
|
540
|
|
PTO Spline(mm)
|
6×8×1600
|
6×8×1600
|
6×8×1600
|
6×8×1600
|
|
Tractor( HP)
|
40-70
|
50-70
|
55-85
|
60-100
|
