AC voltage transducer 0-500V input 4-20ma output electrical measuring signal transducer sensor transmitter

AC voltage transducer 0-500V input 4-20ma output electrical measuring signal transducer sensor transmitter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Measuring Range::: AC0-500V

Output:: 4-20mA, 0-20mA, 0-5V, 0-10V, Customization

Frequency:: 40-60Hz

Accuracy:: 0.2%

Quick Details

Place of Origin:: China

Model Number:: BST-U

Voltage - Supply:: DC24V,±10%

Measuring Range::: AC0-500V

Output:: 4-20mA, 0-20mA, 0-5V, 0-10V, Customization

Frequency:: 40-60Hz

Accuracy:: 0.2%

Product Description

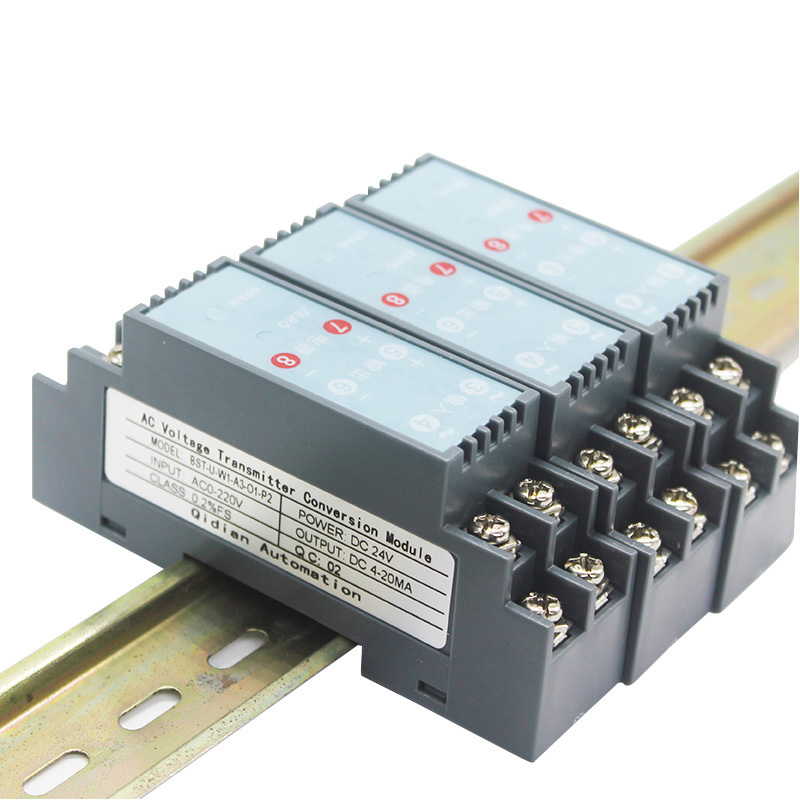

<1>. BST-U AC voltage transmitter, it converts AC signals from AC transformers into standard process signals. It is used for monitoring the power supply line and its voltage,and monitoring the overload of nonstandard pressure drop.
<2>. The fully isolated AC voltage signal conversion terminal,converts the power frequency of AC voltage signal to the standard signal of the industrial instrument.
<3>. The input,output and power supply are isolated from each other.
<4>. Standard 35mm DIN rail independent mounting. Full channel configuration, parameter customizable.

Input Voltage Range	AC 0-1000V; Customized
Frequency Range	40Hz-60Hz
Output Signal	4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;Customized
Output Load Resistance	RL≤500Ω(output current signal)
Output Load Resistance	RL≥10KΩ(output voltage signal)
Power Supply	DC24V,±10%
Accuracy	0.2%F.S.
Respond Time	≤400mS(0-90%) (TYP)
Temperature drift	0.02%F.S./℃ (-20℃ ~ +55℃)
Rated Power Consumption	≤1W(1 in 1 out,DC24V power supply,output 20mA)
Isolation Intensity	2000V AC/1min(between input-ouput-power)
Insulation Resistance	≥100MΩ(between input-ouput-power)
Working Temperature & Humidity	-20℃~+55℃/<80%humidity(non condensing atate)
EMC	Complies with GB/T 18268.1(IEC61326-1)
