Quick Details
-
Year:
-
new
-
Power (kW):
-
16 kW
-
Weight (KG):
-
10000 KG
-
Product name:
-
Hydraulic tire curing press
-
Raw material:
-
Waste Tyre Waste Plastic
-
After-sales Service Provided:
-
Engineers
-
Color:
-
Customers' Demand
-
After Warranty Service:
-
Online
-
Kw:
-
328
-
Material:
-
Q345R
-
Used for:
-
Production Rubber Particle
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hong Jin
-
Voltage:
-
380V
-
Year:
-
new
-
Power (kW):
-
16 kW
-
Weight (KG):
-
10000 KG
-
Product name:
-
Hydraulic tire curing press
-
Raw material:
-
Waste Tyre Waste Plastic
-
After-sales Service Provided:
-
Engineers
-
Color:
-
Customers' Demand
-
After Warranty Service:
-
Online
-
Kw:
-
328
-
Material:
-
Q345R
-
Used for:
-
Production Rubber Particle
specification
Product Description .
Equipment overview:

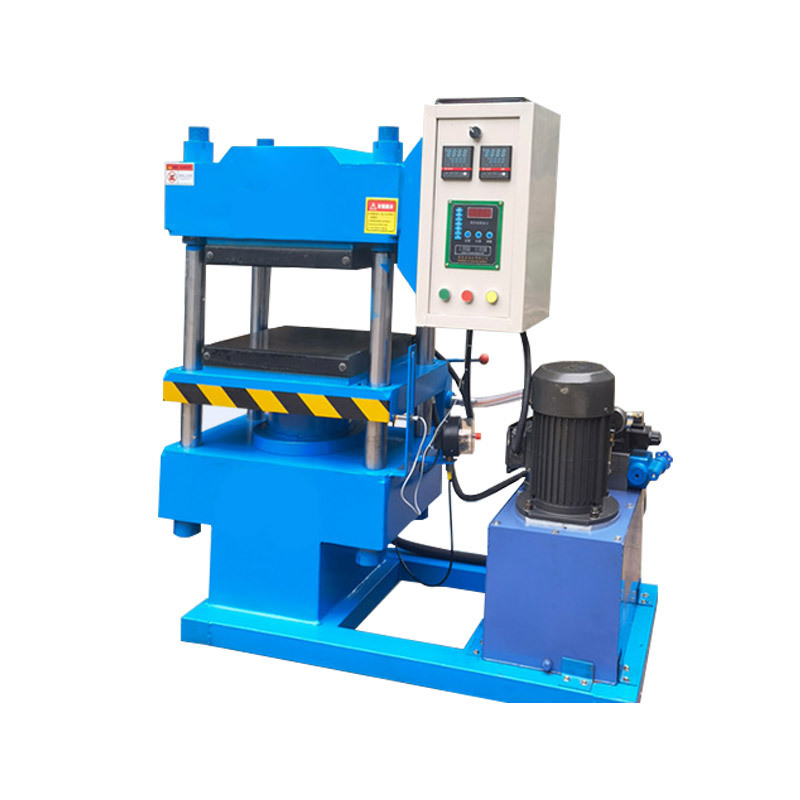

Hydraulic vulcanizing machine is a kind of vulcanizing mechanical equipment using hydraulic system, which is mainly used for vulcanizing rubber in industries such as tire manufacturing and rubber product production. Its main features are simple structure, convenient operation, high efficiency, and controllable molding quality.
Scope of application:
Hydraulic vulcanizers are also widely used in the production of rubber products. Whether it is auto parts, commercial rubber, medical equipment, or electronic product casings, fire-fighting equipment, mechanical parts, etc., hydraulic vulcanizing machines can vulcanize rubber products efficiently and stably. During the production process, the hydraulic vulcanizer can adjust the parameters such as vulcanization temperature, time and pressure according to the product requirements, so as to realize the regulation of the molding, hardness, toughness and other properties of rubber products, and ensure the quality and service life of the products.
Product Paramenters
|
Parameter/Model
|
HJ-600
|
HJ-1000
|
HJ-1200
|
HJ-1400
|
|||
|
Working layers
|
2
|
|
|
|
|||
|
Steam inner diameter
|
820
|
830
|
840
|
1050
|
|||
|
Total pressure kn
|
600
|
1000
|
1200
|
1400
|
|||
|
Plunger diameter mm
|
250
|
300
|
360
|
360
|
|||
|
high pressure mpa
|
13
|
14
|
|
|
|||
|
low pressure mpa
|
1.5
|
|
|
|
|||
|
Airbag pressure mpa
|
1.5
|
2.1
|
|
|
|||
|
steam working pressure mpa
|
0.6-0.8
|
|
|
|
|||
|
Dimensions length * width * height (mm)
|
1200*900*2400
|
1200*842*2358
|
1200*900*2500
|
1360*1050*3820
|
|||
|
Weight (T)
|
3.2
|
4.5
|
5.5
|
8
|
|||
