Quick Details
-
Suitable Excavator(ton):
-
3-25 ton
-
Model:
-
BTS60-BTS120
-
Model Number:
-
tree spade
-
Root ball top diameter:
-
600mm-200mm
-
Root ball bottom diameter:
-
300mm-600mm
-
Root depth:
-
450mm-620mm
-
No. of blades:
-
4/6
-
Root ball volume:
-
0.1m³-0.6m³
-
Colour:
-
yellow blue black or as customize
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BONOVO
-
Weight:
-
2000, 830KG-2000KG
-
Suitable Excavator(ton):
-
3-25 ton
-
Model:
-
BTS60-BTS120
-
Model Number:
-
tree spade
-
Root ball top diameter:
-
600mm-200mm
-
Root ball bottom diameter:
-
300mm-600mm
-
Root depth:
-
450mm-620mm
-
No. of blades:
-
4/6
-
Root ball volume:
-
0.1m³-0.6m³
-
Colour:
-
yellow blue black or as customize
-
After Warranty Service:
-
Online support
Bonovo
© 2021 All Rights Reserved

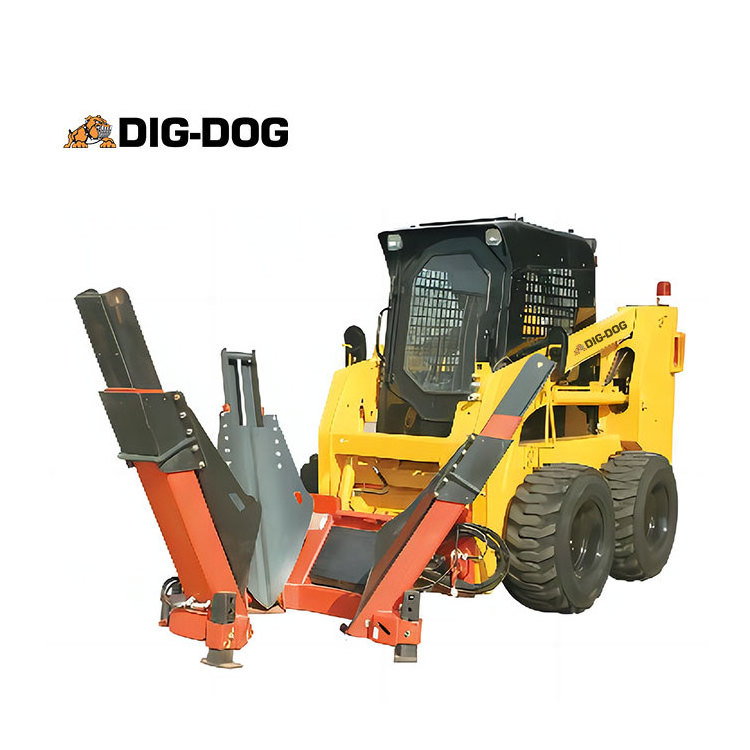

Tree Spade
Application Range:
Bonovo tree spade can be matched with most brands skid steer loader, loader, excavator over the world, such as
Bobcat, Caterpillar, Kobelco, Komatsu, Case, Liugong, Volvo and other brands.
Application: Garden plant, Green nursery and other projects.
Type: Skid steer loader mounted/Loader mounted/Excavator mounted.
The main characteristics of the tree spade: High efficiency, High survival rate, High strength knife shovel, Compact structure.
Full Arange
Tree Spade
-
High working efficiency: A day of selective tree digging can dig about 100 trees, continuous tree digging can dig about 400 trees. One tree spade is equivalent to the work of 30-100 tree diggers.
-
High survival rate: Bonovo tree spade adopts electromechanical hydraulic integration "static pressure cutting" technology, which is cut root section "flat and smooth" thick earth ball, resistant to pressure collision. After detection, there is no obvious structural displacement change of soil and root system inside the excavated earth balls, and the survival rate of trees can be significantly improved.
-
High strength knife and shovel: The knife and shovel components (including blades) are all made of high strength wear-resisting alloy plate.With external force, the blade can bend 140 degrees continuously and operate for 100,000 times continuously. The release of external force can restore the original process state.
-
Compact structure: the tree spade adopts portal frame structure, with internal frame and external frame two structures. The knife and shovel adopts up and down circular arc structure, from parts to components to components, with precision in the range of 0.01-0.5mm. We insist that the strength of the structural parts should be strong enough, but the strength of the structural parts must be designed in the space where they belong, it can increase the strength of the parts
Details
Specification
|
Index/Model
|
BTS60
|
BTS80
|
BTS100
|
BTS120
|
|
Root ball top diameter
|
600mm
|
800mm
|
1000mm
|
1200mm
|
|
Root ball bottom diameter
|
300mm
|
400mm
|
500mm
|
600mm
|
|
Root depth
|
450mm
|
600mm
|
600mm
|
620mm
|
|
No. of blades
|
4
|
4
|
4
|
6
|
|
Weight
|
830KG
|
1050KG
|
1100KG
|
2000KG
|
|
Root ball volume
|
0.1m³
|
0.24m³
|
0.32m³
|
0.6m³
|
1.Fit for most popular brand excavators, loaders and skid steer loaders
2.Big opening gate to engage tree easily ,move tree diameter up to 6''(150mm)
3.High working efficiency, it only takes one minute from shoveling to digging out the tree
4.Transplant mature trees up to 1200 mm root balls, all dug out are standard soil balls like ‘Apple ball’, and the survival rate is greatly improved.
5.Arc blade design with High-strength wear-resistant alloy plate has less resistance in penetrating soil and protect tree root.
6.Adjustable blade angle and depth with deep stroke of the blades, compact structure and high strength suitable for different root ball sizes with one set blades
