Quick Details
-
Model Number:
-
YSP-6
-
Max. Current:
-
40A
-
Mechanical Life:
-
50000 Hours
-
Products name:
-
Push Button Panel Switch
-
Function:
-
Control 6 auxiliary LED lights or electric devices
-
Input Voltage:
-
12 Volt only
-
Power Handling:
-
Maximum 1,000 watts
-
Label Sticker:
-
Pre-made 24 labels
-
Backlight Color:
-
Green
-
Indicator Light Color:
-
Yellow when the circuit is power on
-
Circuit Breaker:
-
40 Amps resettable circuit breaker
-
Operating temperature:
-
-40C~+85
-
OEM Serive:
-
Yes, available
-
Certification:
-
CE, ROHS
Quick Details
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shenzhen Nova
-
Model Number:
-
YSP-6
-
Max. Current:
-
40A
-
Mechanical Life:
-
50000 Hours
-
Products name:
-
Push Button Panel Switch
-
Function:
-
Control 6 auxiliary LED lights or electric devices
-
Input Voltage:
-
12 Volt only
-
Power Handling:
-
Maximum 1,000 watts
-
Label Sticker:
-
Pre-made 24 labels
-
Backlight Color:
-
Green
-
Indicator Light Color:
-
Yellow when the circuit is power on
-
Circuit Breaker:
-
40 Amps resettable circuit breaker
-
Operating temperature:
-
-40C~+85
-
OEM Serive:
-
Yes, available
-
Certification:
-
CE, ROHS
Products Description

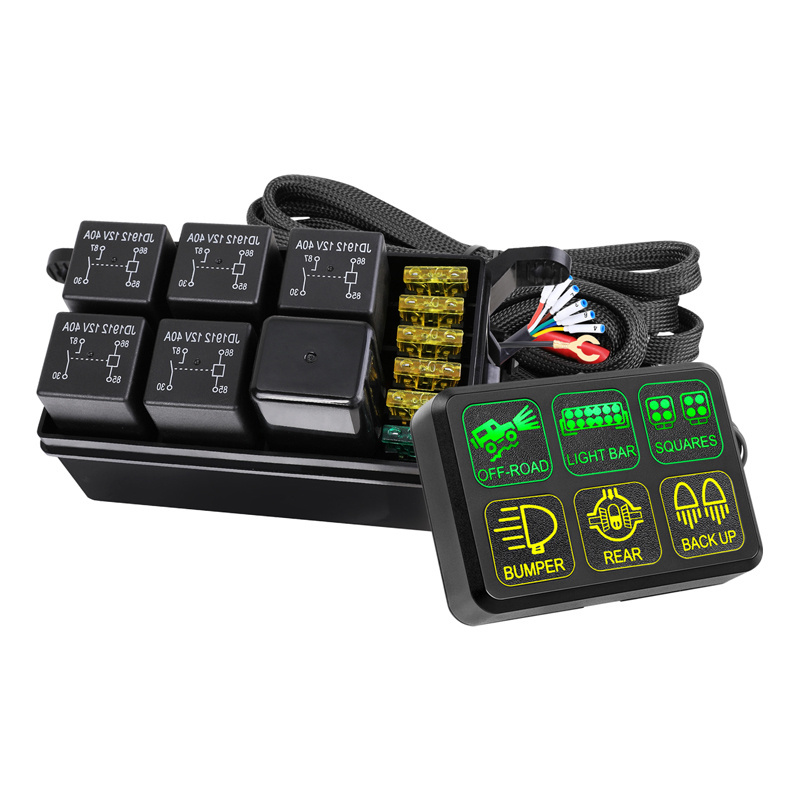

This 6 gang 12 volt switch panel system allows you to control 6 different auxiliary LED lights or electrical devices. With 24 different pre-made switch sticker label decals included, the panel can be customzied accordingly and has green LED backlighting to illuminate the switches while yellow indicator light when the circuit is power on.
This versatile switch panel can handle all types of 12 volt accessories, can be installed in multiple position and is ideal for all applications such as cars, trucks, pwoersport vehicles, and even boat installations.
6 Gang Switch Panel Specification:
|
Product Name
|
Multi Functions With Wiring Kit Green Led Auto 12 Volt Light Push Button Panel Switch
|
|
Function
|
Switched or momentary operation
|
|
Switch Quantity
|
6 Switches
|
|
Label Quantity
|
A sheet of 24 labels
|
|
Input Voltage
|
12 Volt ONLY
|
|
Power Handling
|
Maximum 1,000 Watts
|
|
Maximum Current
|
40 Amps
|
|
Background Light
|
Green
|
|
Indicator Light
|
Yellow indicator light when the circuit is on
|
|
Control Box Material
|
Plastic shell cover
|
|
Control Box Size
|
About 5x3 inch
|
|
Control Box Mount Solution
|
Fix mount
|
|
Switch Panel Material
|
Plastic
|
|
Switch Panel Size
|
About 3x2 inch
|
|
Switch Panel Mount Solution
|
With mount bracket and double-sides adhesive pad
|
|
Warranty
|
12 Month since order received date
|
|
After-Sales Serive
|
Free replacement for quality damaged products
|
What's In The Box:
(1) 6 Gang switch panel
(1) Circuit control box
(24) A sheet of 24 DIY labels
(1) Mounting bracket
(1) Auto strong double sides adhesive pad
Wire connections and screw accessories
More Switch Panel Options:
OEM / ODM Service
Need more personalities on
this
Multi Functions With Wiring Kit Green Led Auto 12 Volt Light Push Button Panel Switch
? As a factory and manufacturer, Shenzhen Nova offers you with different options, including:
1, Green LED backlight can be changed into blue or others
2, Length of the wire connections can be extended to customer's needs
4, Label sheet can be printed with customer's design
5, Color box can be printed with customer's design
6, Instruction sheet can be translated and printed to customer's language
