Quick Details
-
Travel (W-axis) (mm):
-
400 mm
-
Range of Spindle Speed(r.p.m):
-
450 r.p.m
-
Production Capacity:
-
High
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luzhong Machine
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
480X200X250CM
-
Weight (T):
-
3 T
-
Weight:
-
9000KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Functions:
-
Cnc Boring Milling Machine
-
Product type:
-
Horizontal Portable Boring Machine
-
Name:
-
Boring machine for motorcycle T611 Multi drilling machine boring
-
COLOR:
-
Optional
-
Model:
-
T611
-
Keywords:
-
cylinder boring machine
-
Max. load of worktable:
-
3000
-
Spindle speed step:
-
9 step
Quick Details
-
Table Travel (X) (mm):
-
1400 mm
-
Table Travel (Y) (mm):
-
1000 mm
-
Table Travel (Z) (mm):
-
900 mm
-
Travel (W-axis) (mm):
-
400 mm
-
Range of Spindle Speed(r.p.m):
-
450 r.p.m
-
Production Capacity:
-
High
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luzhong Machine
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
480X200X250CM
-
Weight (T):
-
3 T
-
Weight:
-
9000KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Functions:
-
Cnc Boring Milling Machine
-
Product type:
-
Horizontal Portable Boring Machine
-
Name:
-
Boring machine for motorcycle T611 Multi drilling machine boring
-
COLOR:
-
Optional
-
Model:
-
T611
-
Keywords:
-
cylinder boring machine
-
Max. load of worktable:
-
3000
-
Spindle speed step:
-
9 step

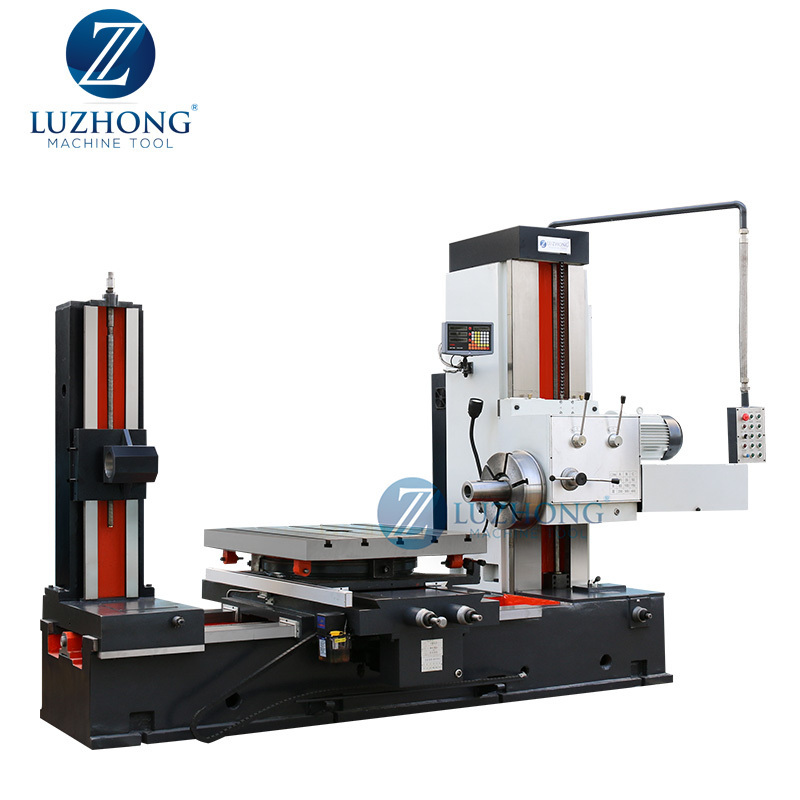

Product Description
Product main features and uses:
1. Appearance beautiful generous overall layout of the overall layout.
2. The machine body, the upright post and the sliding block are all made of rectangular guide rail, and the stability is good.
3. Guide rail to take automatic quenching, high wear resistance.
4. Digital synchronous display, intuitive and accurate, can improve the work efficiency.
5. After the tailstock is optional
2. The machine body, the upright post and the sliding block are all made of rectangular guide rail, and the stability is good.
3. Guide rail to take automatic quenching, high wear resistance.
4. Digital synchronous display, intuitive and accurate, can improve the work efficiency.
5. After the tailstock is optional
Product application:
.
1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
|
cations
|
Units
|
T611
|
|
Max. load of worktable
|
kg
|
3000
|
|
Spindle speed step
|
|
9 step
|
|
Spindle speed range
|
rpm
|
20-450
|
|
Longitudinal feed step
|
|
6steps
|
|
Longitudinal and transverse feed range
|
mm/min
|
6-250
|
|
Worktable rapid feed speed
|
mm/min
|
2500
|
|
Headstock lifting and lowering feed speed
|
mm/min
|
50-720
|
|
Spindle diameter
|
mm
|
110
|
|
Quill travel
|
mm
|
400
|
|
Table size
|
Mm2
|
1130×930
|
|
Longitudinal travel of worktable
|
mm
|
1400(No tailstock)
|
|
transverse travel of worktable
|
mm
|
1000
|
|
Vertical travel of headstock
|
mm
|
900
|
|
Spindle taper
|
|
Morse 6#
|
|
Spindle motor power
|
KW
|
5.5/7.5
|
|
Longitudinal and transverse motor power
|
KW
|
2.2
|
|
Headstock lifting and lowering motor power
|
KW
|
1.5
|
|
Overall dimension
|
mm
|
4800×2000×2500
|
