Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
KDC-A04-2S
-
Item:
-

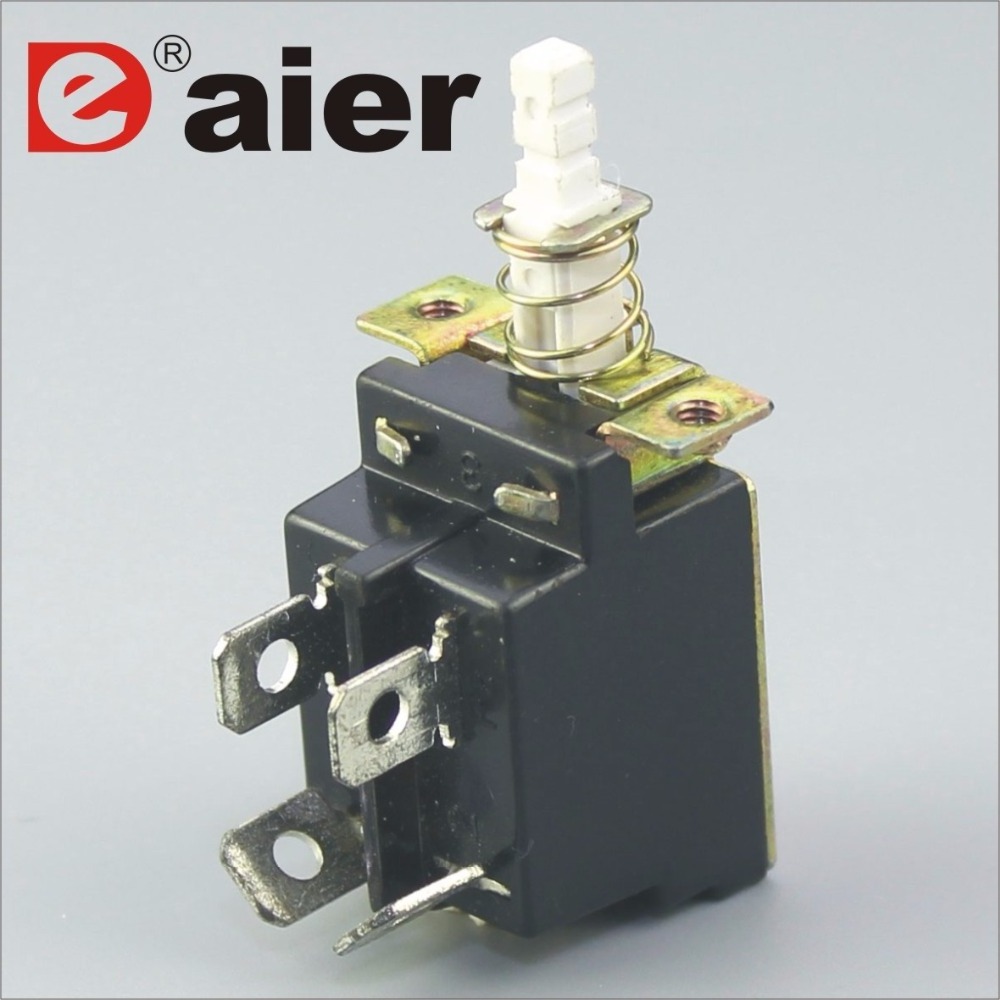

ON-OFF Main Double Power Button Switch KDC-A04-2S
-
Material:
-
Plastic
-
Function:
-
Latching Push Button Switch
-
Terminal Quantity:
-
4P
-
IP Class:
-
IP40
-
Contact Resistance:
-
≤0.05Ω
-
Insulation Resistance:
-
≥100 MΩ
-
Certificate:
-
CE, Rohs, CQC
-
OEM&ODM:
-
YES
-
Package:
-
100pcs/bag
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
2A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
KDC-A04-2S
-
Item:
-
ON-OFF Main Double Power Button Switch KDC-A04-2S
-
Material:
-
Plastic
-
Function:
-
Latching Push Button Switch
-
Terminal Quantity:
-
4P
-
IP Class:
-
IP40
-
Contact Resistance:
-
≤0.05Ω
-
Insulation Resistance:
-
≥100 MΩ
-
Certificate:
-
CE, Rohs, CQC
-
OEM&ODM:
-
YES
-
Package:
-
100pcs/bag
KDC-A04-2S
Specifications:
1. Rating: 2A 250VAC
2. Terminal Quantity: 4Pin
3.Contact Resistance: 0.05Ω max
4. Insulation Resistance:100MΩ min
5. Dielectric Strength:1500V AC
6. Operating Temperature: -25°C~+85°C
7. Function: Latching Push Button Switch
8. IP Class: IP40
