Quick Details
-
Center Height (mm):
-
80 mm
-
Max.Transformer Capacity(kVA):
-
0 kVA
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CROWN
-
Motor Power (kw):
-
2
-
Weight (KG):
-
90
-
Dimension(L*W*H):
-
500*600*700
-
Wire Diameter Range (mm):
-
0.2 - 0.7 mm
-
Name:
-
wire winding machine
-
Model:
-
WL-2630
-
Winding method:
-
side slip type
-
Finished outer diameter:
-
60/120
-
Minimum finished inner diameter:
-
30
-
Final completion height:
-
80
-
Suitable winding diameter range:
-
0.2-0.7
-
Storage ring diameter:
-
195
-
Storage ring width:
-
3-8
-
Maximum speed:
-
800 rpm
Quick Details
-
Max. Load (KG):
-
40 KG
-
Coil Type:
-
O shape
-
Length of Axis (mm):
-
195 mm
-
Center Height (mm):
-
80 mm
-
Max.Transformer Capacity(kVA):
-
0 kVA
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CROWN
-
Motor Power (kw):
-
2
-
Weight (KG):
-
90
-
Dimension(L*W*H):
-
500*600*700
-
Wire Diameter Range (mm):
-
0.2 - 0.7 mm
-
Name:
-
wire winding machine
-
Model:
-
WL-2630
-
Winding method:
-
side slip type
-
Finished outer diameter:
-
60/120
-
Minimum finished inner diameter:
-
30
-
Final completion height:
-
80
-
Suitable winding diameter range:
-
0.2-0.7
-
Storage ring diameter:
-
195
-
Storage ring width:
-
3-8
-
Maximum speed:
-
800 rpm
Specification

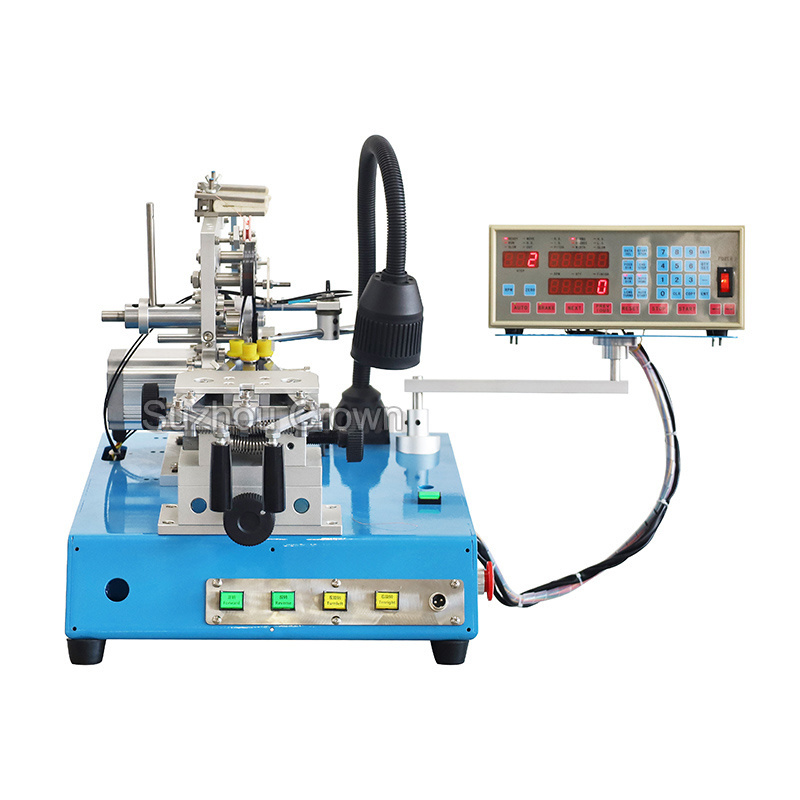

Dimmer transformers copper wire coil winding machine automatic wire coiling machine
We bring forth a range of toroidal coil winding machines that are used in the winding applications of various types of coils, such as dimmer transformers, CTs, stabilizers, sound amplifiers, etc. These machines are manufactured using premium quality components using cutting edge technology. We also stringently test these machines to ensure them meet the international industrial norms.
.
Features :
1.
Stable pulling force, small inner diameter, fast winding speed, no damage to the wire
2.It is suitable for winding products with small diameter and many turns, such as primary and secondary windings of small toroidal transformers, primary windings of high-power toroidal transformers, and transformer coils.
3.The wire storage ring of different widths can be replaced on the same model to meet the wire storage capacity and complete inner diameter of products of different sizes, and the application range is wider.
4.Suitable for winding enameled copper wire, enameled aluminum wire, steel wire, nylon wire and more, which can be used for coil processing of products in various industries.
2.It is suitable for winding products with small diameter and many turns, such as primary and secondary windings of small toroidal transformers, primary windings of high-power toroidal transformers, and transformer coils.
3.The wire storage ring of different widths can be replaced on the same model to meet the wire storage capacity and complete inner diameter of products of different sizes, and the application range is wider.
4.Suitable for winding enameled copper wire, enameled aluminum wire, steel wire, nylon wire and more, which can be used for coil processing of products in various industries.
|
Model
|
WL-2610
|
WL-2630
|
WL-2631
|
WL-2700
|
WL-2800
|
|
Winding method
|
side slip type
|
side slip type
|
side slip type
|
side slip type
|
side slip type
|
|
Finished outer diameter
|
30/80
|
60/120
|
60/120
|
60/200
|
60/200
|
|
Minimum finished inner diameter
|
18
|
30
|
35
|
35
|
50
|
|
Final completion height
|
40
|
80
|
80
|
100
|
120
|
|
Suitable winding diameter range
|
0.12-0.5
|
0.2-0.7
|
0.2-0.7
|
0.2-0.75
|
0.35-0.9
|
|
Storage ring diameter
|
180
|
195
|
195
|
230
|
260
|
|
Storage ring width
|
3-6
|
3-8
|
9-12
|
9-15
|
12-18
|
|
Maximum speed
|
800 rpm
|
800 rpm
|
800 rpm
|
700 rpm
|
600 rpm
|
|
Working voltage
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
220V/50Hz
|
|
Dimensions
|
480×450×600
|
500×600×700
|
500×600×700
|
500×600×750
|
500×600×800
|
|
Weight
|
90 kg
|
90 kg
|
90 kg
|
100 kg
|
110 kg
|
