WWC Thin Wall Viton Modified 200 degree celsius fluorine rubber oil resistant heat shrink tube free sample

WWC Thin Wall Viton Modified 200 degree celsius fluorine rubber oil resistant heat shrink tube free sample

FOB Reference Price: Get Latest Price

≥10 Meters

US $1.44

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: fluoroelastomer Heat Shrink Tubing

Product name:: thin wall fluorine rubber heat shrinkable tubing

Certification:: RoHS

MOQ:: 100M

Usage:: electronic systems ,automotive, aerospace

Shrink ratio:: 2 : 1

Test Method:: ASTM D2671

Size:: ID3.2mm-50.8mm

Tensile Strengtn after aging (MPa):: UL224 158°CX168hr ,

Standard Color:: Balck

Quick Details

Material:: fluoroelastomer rubber

Place of Origin:: Jiangsu, China

Brand Name:: Woer

Model Number:: fluoroelastomer Heat Shrink Tubing

Product name:: thin wall fluorine rubber heat shrinkable tubing

Certification:: RoHS

MOQ:: 100M

Usage:: electronic systems ,automotive, aerospace

Shrink ratio:: 2 : 1

Test Method:: ASTM D2671

Size:: ID3.2mm-50.8mm

Tensile Strengtn after aging (MPa):: UL224 158°CX168hr ,

Standard Color:: Balck

Product Description

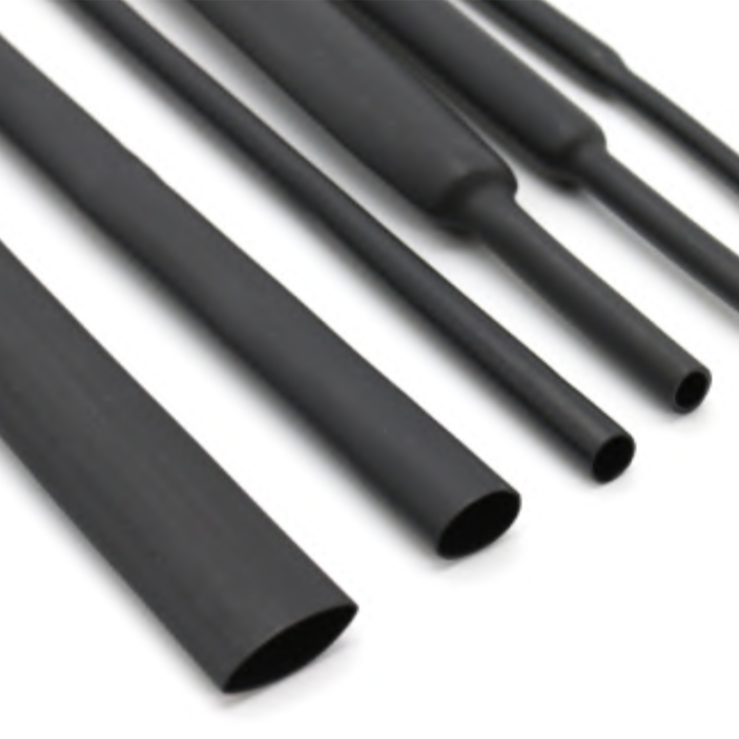

Votin Modified fluorine rubber heat shrinkable tubing

Thin wall Viton fluoroelastomer heat shrink tubing suitable for use in electronic systems and components in automotive, aerospace, and industrial applications requiring outstanding heat and fluid resistance.

Features
● 2:1 shrink ratio ( Note: 3:1 shrink ratio is available upon request )
● High withstand to corrosive fluids in extreme temperatures
● Flame retardant
● Very flexible
● Easy to stamped
● Continuous operating temperature: -55℃ to 200℃ ( - 67℉ to 392℉ )
● Shrink temperature:175℃ / 347℉

Technical Data

Property	Test Method	Stantard	Typical Performance
Tensile Strengtn(MPa)	ASTM D2671	≥8.5	10.0
Elongation(%)	ASTM D2671	≥250	300
Tensile Strengtn after aging (MPa)	UL224 158°CX168hr	≥7.3	8.5
Elongation after aging(%)	UL224 158°CX168hr	≥200	250
Dieletric strength(kv/mm)	IEC243	≥15	17.5
Volume resistivity(Ω.cm)	ASTM D876	≥1X109	2.5X109
Flammability	VW-1	Pass	Pass

Specification

Size			Expanded (mm )	Recovered ( mm )			Package	Round / Flat
Inch	mm	Inner Dia	Inner Dia	Wall Thickness	( M / Spool )			Round / Flat
1/10	2.4	2.4	1.2	0.75±0.20	200	Round
1/8	3.2	3.2	1.6	0.75±0.20	200	Round
3/16	4.8	4.8	2.4	0.89±0.20	100	Round
1/4	6.4	6.4	3.2	0.89±0.20	100	Round
3/8	9.5	9.5	4.8	0.89±0.20	50	Round
1/2	12.7	12.7	6.4	0.89±0.20	25	Round
0.63	15.9	15.9	7.9	1.07±0.30	25	Flat
3/4	19.1	19.1	9.5	1.07±0.30	25	Flat
1	25.4	25.4	12.7	1.25±0.30	25	Flat
1-1/4	31.8	31.8	15.9	1.25±0.30	25	Flat
1-1/2	38.1	38.1	19.1	1.40±0.30	25	Flat
2	50.8	50.8	25.4	1.65±0.30	1.22M / Paragraph	Flat
3	76.2	76.2	38.1	1.65±0.30	1.22M / Paragraph	Flat
