Quick Details
-
Power:
-
/
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
800*800*1100mm
-
Capacity:
-
28L+28L, 2*28L
-
Material:
-
stainless steel
-
Net weight:
-
110 KGS
-
Unit size:
-
800*800*1180 (MM)
-
Color:
-
stainless steel color
-
Usage:
-
McDonald's Fast Restaurant
-
Function:
-
Frying Food Materials
-
Temperature Ranges:
-
Room Temperature -200degree
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huarui
-
Voltage:
-
/
-
Power:
-
/
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
800*800*1100mm
-
Capacity:
-
28L+28L, 2*28L
-
Material:
-
stainless steel
-
Net weight:
-
110 KGS
-
Unit size:
-
800*800*1180 (MM)
-
Color:
-
stainless steel color
-
Usage:
-
McDonald's Fast Restaurant
-
Function:
-
Frying Food Materials
-
Temperature Ranges:
-
Room Temperature -200degree
Fast food equipment electric/gas deep fryer
We have computer control panel,or Mechanical panel type fryers for your choose

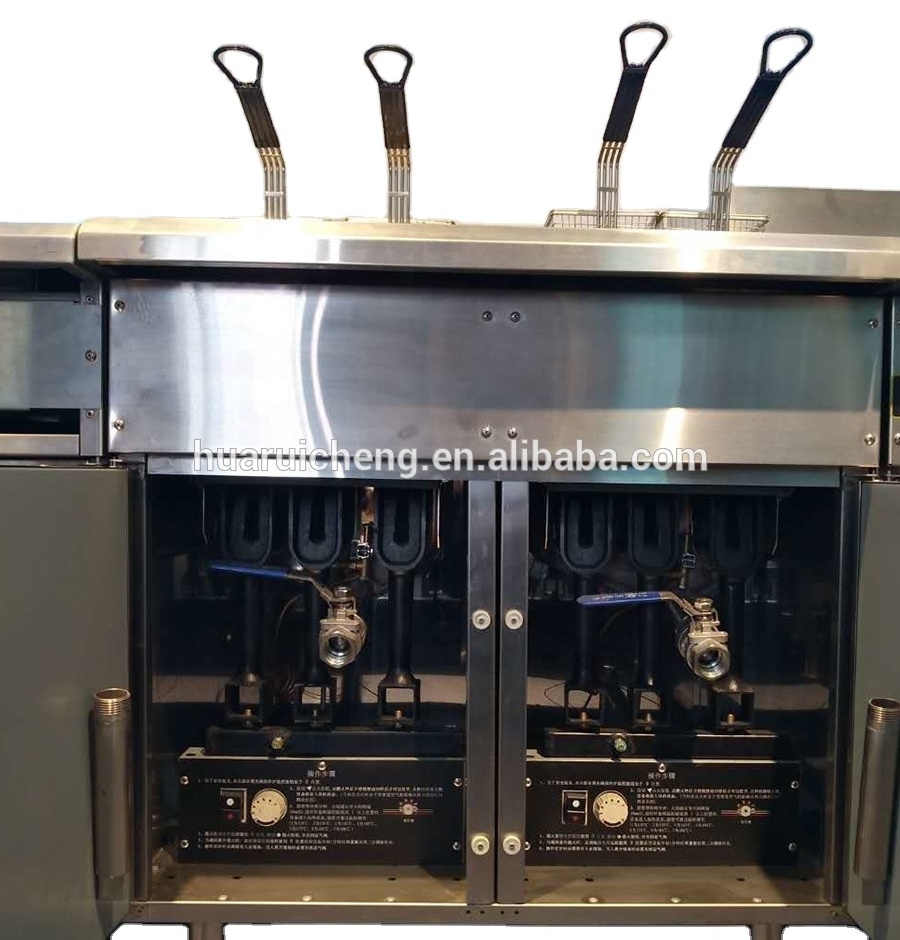

Double tank with 4 baskets full stainless steel gas deep fryers,31000 BTU ( 9kw) per burenr ,total 4 burner 124000 BTU ( 36KW) Cast iron tube fire burners for maximum heat transfer
Imported safety valve with millivolt safety control ( flame failure safety device)
Thermostat control up to 195 deg C
High temperature safety limit
High power allows quick temperature recovery
Large capacity frypot ,25 liters per tank,total 50 liters
Fine mesh crumb dscree
Two nickel plated wire mesh fry baskets per tank,with heat resistant vinyl coated handle
1'' stainels steel drain valve
Gas fryers Features :
Commercial gas chips fryer
(Height including splash back is 1180mm)
| Model | No of Tank | No of basket | Operation panel | Fry are (mm) | Capacity (each tank) | Gas type | Power | Unit size (mm) |
| MGF-3 | Single tank | Two basket | Manual type | 353*355 | 25L per tank | Nature gas or LPG | 3 burner total :27kw | 400x 800 x 1180 |
| MGF-4 | Single tank | Two basket | Manual type | 353*355 | 28L per tank | Nature gas or LPG | 4 burner total :34kw | 400x 800 x 1180 |
| CGF-4C | Single tank | Two basket | Computer control type | 353*355 | 28L per tank | Nature gas or LPG | 4 burner total :34kw | 400x 800 x 1180 |
| CGF4-45 | Single tank | Two basket | Manual type | 420*540 | 35L per tank | Nature gas or LPG | 4 burner total :34kw | 400x 800 x 1180 |
More Details of gas fryer :
Stainless steel standard gas fryer
One tank with two baskets
Tank capacity : 28L
European gas valve
High temperature limiting safety feature
Flame failure safety device
Thermostatic control ( from 0℃ to 195℃ )
High thermal efficiency ( beyond 50% )
Nature gas or LPG
Gas inlet size : BSP 1/2''
Deep cold zone design reduces wasteful oil deterioration by trapping crumbs under the cooking area
Latch lock 1'' ball-type drain valve : latch lock feature eliminates
accidental scalding .oil drain height :350mm
Casters at the back and adjustable bullet feet in the front
Stainless steel front rail door ,splash back and fry pot
Gas inlet : BSP 1/2''
fryer baskets
Crumb Sreen
Drain clog clearance prod
Drain oil extension pipe
Automatic melt cycle for solid shortening
Electronic temperature sensor : quick response to load
Buzzer goes off at the end of fry cycle process or when it reaches the stage of ''shake basket reminding ''.this feature is good for frying French fries.
Precise temperature control for computer model.No unpleasant temperature overshoot which shortens oil lifespan and degrades food quality
Computer model requires 220v single phase power for the control board
Electric deep fryers Features :
High quality full stainless steel body
You can choose computer control pannel or Manual operation electric deep fryer
You can choose with oil filter system or without oil filter system
Working height 840 mm
With two baskets
Group type tank fryers,two tank will with four baskets
Tank capacity : 28 L per tank or 14L per tank
380V, 3ph, 36 KW ,220v,1hp,9kw
12 or 6 programable cook cycles;
High temperature limiting safety feature
Thermostatic control ( from 0℃ to 195℃ )
| Model | No of Tank | No of basket | Programming channels / per tank | Fry are (mm) | Capacity (each tank) | Electrical | Unit size (mm) |
| CEF-18C | Single tank | Two basket | 6 | 350*420 | 28-32L per tank | 380v,3ph,18kw | 400 x 800 x 1100 |
| CEF-18C2 | Double tank | Two basket | 2 | (165*429)*2 | 14-16L per tank | 380v,3ph,2*9kw | 400 x 800 x 1100 |
| MEF-18 | Single tank | Two basket | Mechanical type | 350*420 | 28-32L per tank | 380v,3ph,18kw | 400 x 800 x 1100 |
| MEF-182 | Double tank | Two basket | Mechanical type | (165*429)*2 | 14-16L per tank | 380v,3ph,2*9kw | 400 x 800 x 1100 |
| MEF-9 | Single tank | Two basket | Mechanical type | 320*308 | 12-14L per tank | 220v,1ph,9kw | 400 x 800 x 1100 |
| CEF-9C | Single tank | Two basket | 12 | 320*308 | 12-14L per tank | 220v,1ph,9kw | 400 x 800 x 1100 |
Electric deep fryers with oil filter system:
| Model | No of Tank |
No of basket
|
Programming channels / per tank | Fry are (mm) | Capacity (each tank) | Electrical |
Unit size (mm)
|
| CEF-18CF | Single tank with oil filter system |
Two baskets
|
12 | 350*420 | 28-32L per tank | 380v,3ph,18kw | 400 x 800 x 1100 |
| CEF-18C2F | Double tank with oil filter system | Two baskets | 12 | (165*429)*2 | 14-16L per tank | 380v,3ph,2*9kw | 400 x 800 x 1100 |
| CEF-9CF | Single tank with oil filter system | Two baskets | 12 | 320*308 | 12-14L per tank | 220v,1ph,9kw | 400 x 800 x 1100 |
| MEF-9F | Single tank with oil filter system | Two baskets | Mechanical type | 320*308 | 14-16L per tank | 220v,1ph,9kw | 400 x 800 x 1100 |
| CEF-36GF | Group style,double tank with oil filter system | Four baskets | 12*2 | (350*420)&(165*429)*2 | 28-32L per tank | 380v,3ph,2*18kw | 800 x 800 x 1100 |
| CEF-36GCF | Group style with chips dump,double tank with oil filter system | Four baskets | 12*2 | (350*420)*2 | 28-32L per tank | 380v,3ph,2*18kw | 1200 x 800 x 1100 |
Electric Fryer with oil filter
Heating element can be lifted up for fry pot cleaning
Space saving built -in oil filter .oil receptacle can be easily accessed for filter envelop changing.
Solid state control with long life span.
Deep cold zone of fry pot traps food crumbs to reduce oil contamination
High temperature safety limit
Service friendly : modular design
Stainless steel drain valve with safety latch
CE compliant
fryer baskets
Crumb Sreen
Drain clog clearance prod
Drain oil extension pipe
Automatic melt cycle for solid shortening
Electronic temperature sensor : quick response to load
Buzzer goes off at the end of fry cycle process or when it reaches the stage of ''shake basket reminding ''.this feature is good for frying French fries.
Precise temperature control for computer model.No unpleasant temperature overshoot which shortens oil lifespan and degrades food quality.
