Quick Details
-
Model Number:
-
Castor Wheel
-
Axle Diameter:
-
1200
-
Style:
-
Lifting and Mobile
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Container Caster Wheel
-
Application:
-
industrial shipping container
-
Size:
-
1800/1900mm
-
Color:
-
green, brown or customized
-
Wheel material:
-
Solid Rubebr
-
Bearing:
-
Roller Bearing
-
Load Capacity:
-
8000/ 15000/ 30000kgs
-
OEM:
-
Accepeted
-
MOQ:
-
1 Pcs
-
Advantage:
-
Strong Load Capacity
Quick Details
-
Width:
-
1800
-
Material:
-
Iron
-
Type:
-
Standard Solid Wheels
-
Model Number:
-
Castor Wheel
-
Axle Diameter:
-
1200
-
Style:
-
Lifting and Mobile
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Container Caster Wheel
-
Application:
-
industrial shipping container
-
Size:
-
1800/1900mm
-
Color:
-
green, brown or customized
-
Wheel material:
-
Solid Rubebr
-
Bearing:
-
Roller Bearing
-
Load Capacity:
-
8000/ 15000/ 30000kgs
-
OEM:
-
Accepeted
-
MOQ:
-
1 Pcs
-
Advantage:
-
Strong Load Capacity

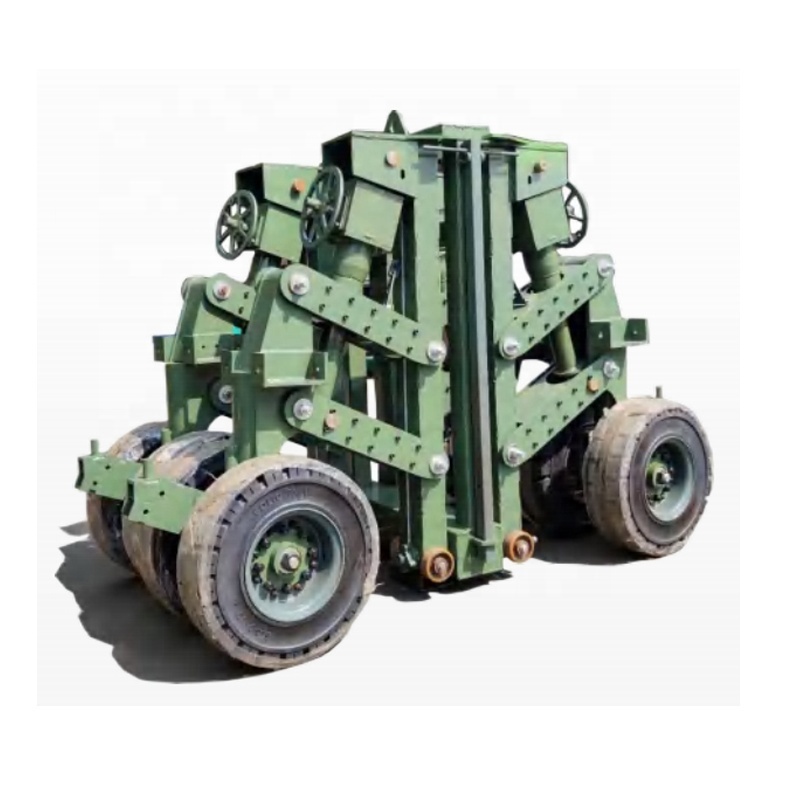

Max 30 tons Capcity Industrial Shipping Container Casters Lifting Castor Wheel
The Lifting container moving Caster wheel can easily lift standard containers with a maximum load of up to 30 tons and lift them to a height of 450mm without the need for special large machinery. The second generation Liftig container moving Caster wheel by Jianglong adopts a mechanical screw design principle instead of the traditional hydraulic lifting method, effectively avoiding hidden dangers such as hydraulic leakage, compressibility, energy loss, and sensitivity to oil temperature changes. Additionally, the Jianglong container moving wheel is easy to maintain and has a low failure rate. Equipped with off-road performance high-load tires, it can achieve a maximum towing speed of 12km/h, making moving heavy containers an easy task.
|
Product |
W |
L |
H |
Ha1 |
Wa3 |
Ha2 |
h3 |
Wa2 |
D |
La1 |
Weight [kg] |
|
LC-08 [8000kg] |
1800 |
1200 |
2200 |
1180 |
760 |
960 |
200 |
800 |
541 |
450 |
1600 |
|
LC-15 [15000kg] |
1800 |
1200 |
2200 |
1180 |
760 |
1410 |
450 |
830 |
541 |
500 |
1900 |
|
LC-30 [30000kg] |
1900 |
1500 |
2200 |
1250 |
860 |
1310 |
450 |
830 |
650 |
650 |
2200 |
