Gauge/Mode
|
Y&D7200N
|
Y&D7300N
|

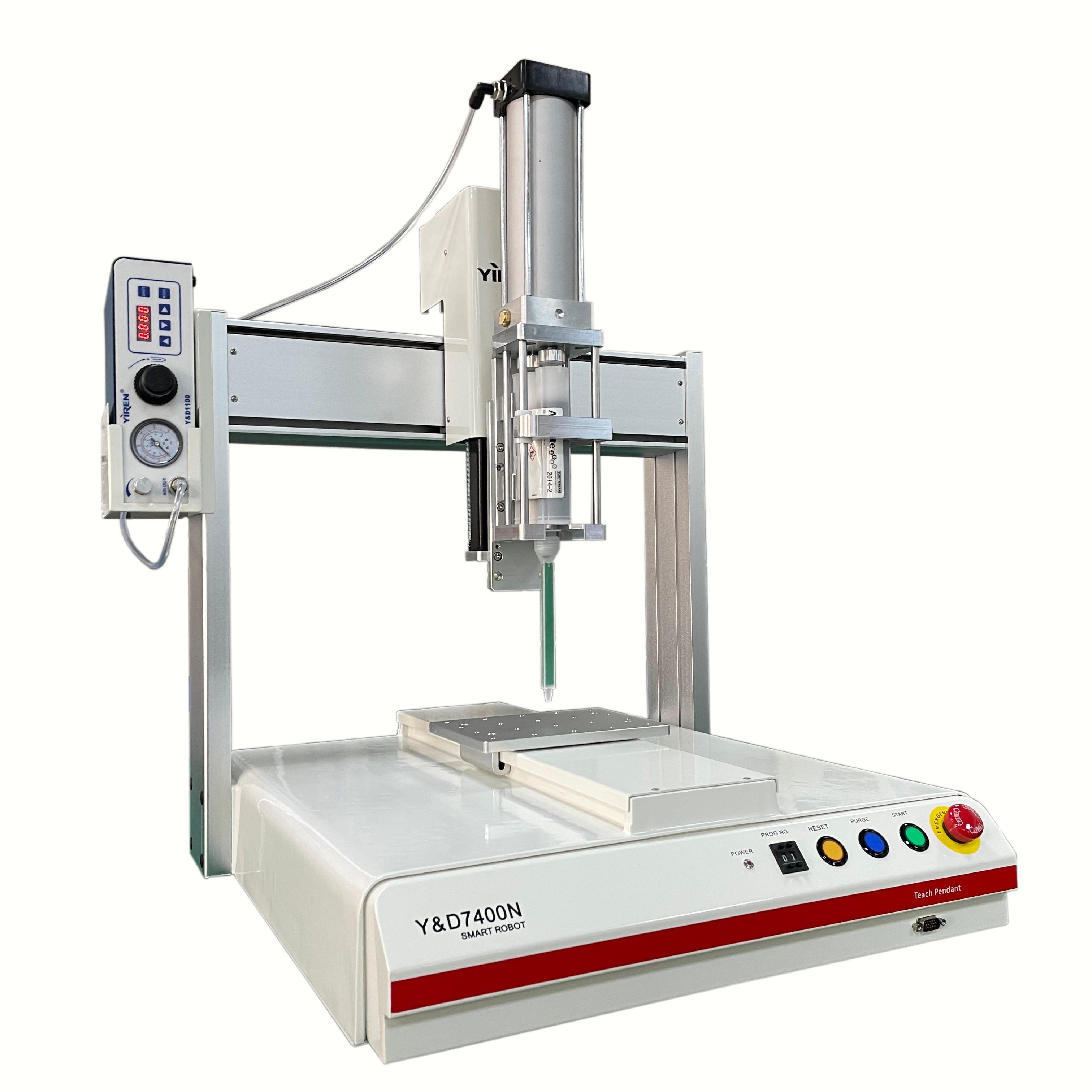

Y&D7400N
|
Y&D7500N
|
Y&D7600N
|
||||
|
Working Range
|
200/200/50
|
300/300/100
|
400/400/100
|
500/500/100
|
600/500/100
|
||||
|
Max Load Y/Z
|
5kg/3kg
|
11kg/6kg
|
|
|
|
||||
|
Speed X&Y/Z
|
500/350
|
800/350 (mm/sec)
|
|
|
|
||||
|
Repetive Positioning Accuracy
|
+/-0.02mm/Axis
|
|
|
|
|
||||
|
Program Capacity
|
Min 100 Group, 4000 points/group
|
|
|
|
|
||||
|
Data Storage Type
|
CF Card
|
|
|
|
|
||||
|
Byte
|
32bit
|
|
|
|
|
||||
|
Program Display
|
LCD
|
|
|
|
|
||||
|
Motor System
|
Japan micro stepping motor
|
|
|
|
|
||||
|
Mode of transmission
|
synchronous belt
|
X/Y Axis synchronous belt, Z Axis precision ball screw
|
|
|
|
||||
|
Interpolation Function
|
3 Axis
|
|
|
|
|
||||
|
Teaching Method
|
Teach Pendant
|
|
|
|
|
||||
|
I/O Signals Port
|
8 Inputs/ 8 Outputs
|
|
|
|
|
||||
|
External Control
|
RS232
|
|
|
|
|
||||
|
Power Supply
|
AC100-230V 300W
|
|
|
|
|
||||
|
Working Temperature
|
10-40℃
|
|
|
|
|
||||
|
Working Relative Humidity
|
20-90% no condensation
|
|
|
|
|
||||
|
Dimensions (mm)
|
385*380*500
|
485*505*610
|
585*610*610
|
685*700*610
|
785*700*610
|
||||
|
Robot Weight
|
23kg
|
34kg
|
41kg
|
52kg
|
56kg
|
||||
