Quick Details
-
Warranty:
-
One Year, 1 year
-
Brand Name:
-
Modern Pump
-
Model Number:
-
IH
-
Place of Origin:
-
Guangdong, China
-
Outlet Size:
-
DN50-200
-
Power:
-
Max 110KW
-
motor:
-
Horizontal
-
Pump name:
-
horizontal stainless steel centrifugal chemical pump
-
Material:
-
stainless steel 304,316
-
Theory:
-
centrifugal ,chemical pump
-
Seal:
-
mechanical seal
-
Head:
-
5-125m
-
Flow:
-
1.6---400m3/h
-
Shaft:
-
stainless steel shaft
-
Temperature:
-
-20-105 degree
-
Usage:
-
chemistry,industry,water supply
Quick Details
-
Application:
-
Industrial Utilities, Irrigation and Agriculture, Raw Water Intake, Washing and Cleaning, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Max 12.5Bar
-
Voltage:
-
220-480V
-
Warranty:
-
One Year, 1 year
-
Brand Name:
-
Modern Pump
-
Model Number:
-
IH
-
Place of Origin:
-
Guangdong, China
-
Outlet Size:
-
DN50-200
-
Power:
-
Max 110KW
-
motor:
-
Horizontal
-
Pump name:
-
horizontal stainless steel centrifugal chemical pump
-
Material:
-
stainless steel 304,316
-
Theory:
-
centrifugal ,chemical pump
-
Seal:
-
mechanical seal
-
Head:
-
5-125m
-
Flow:
-
1.6---400m3/h
-
Shaft:
-
stainless steel shaft
-
Temperature:
-
-20-105 degree
-
Usage:
-
chemistry,industry,water supply

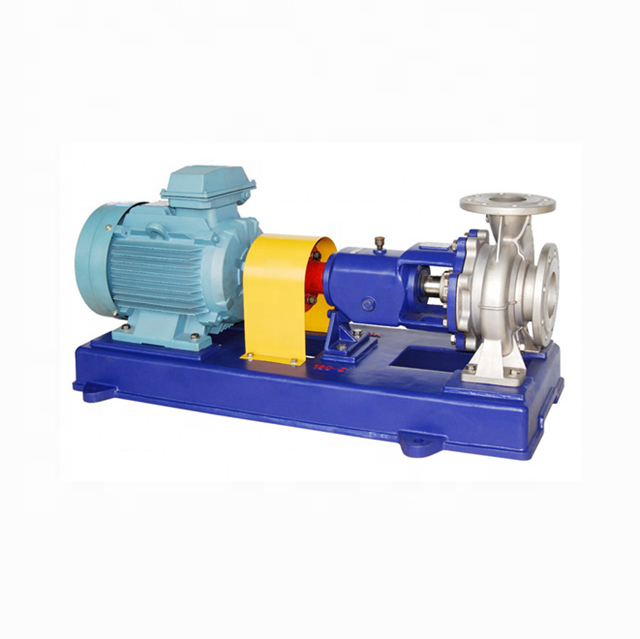

IH series horizontal stainless steel centrifugal pump
IH series chemical pump can transport medium which is corrosive or polluting water like liquid, it is widely used for industry, oil, mineral, power station, food/paper/medicine/textile factory and waste water processing and environmental protection, the medium temperature is -20~ +105 degrees, if need, it can adopt double-end seal cooling unit, then can transport liquid with temperature from -20~+280 degrees.
Material: there are 4 kinds of materials for this pump, cast steel, ordinary stainless steel, 304SS, 316SS ( these 2 are more suitable for corrosive liquid)
Flow Q: 6.3~400m3/h
Head: 5~132m
Speed: 2900/1450r/min
Power: 0.55~110KW
Inlet diameter: 50~200mm
Max working pressure: 1.6Mpa
IH series chemical pump have 29 basic size, including 22 double speed(2900/1450r/min), after cutting then A/B two type of impellers, it can achieve 112 different sizes.
*All of the enquiry will be replied within 8 working hours
*Professional pump producer, with design team.
*All of the goods are packed with standard export wooden case(non-fumigation)
*Fast delivery time: common stock model, customed type:7 working days
*Support OEM or ODM
*Fast after-service
