Quick Details
-
Place of Origin:
-
Guangdong, China
-
Network port:
-
Giagbit 8 port POE injector
-
Warranty:
-
5 Years
-
PoE Power supply type:
-
Data provided over pairs over 1/2and 3/6
-
Performance:
-
PoE output voltage 48V
-
LEDs indicator:
-
PoE working status
-
Power supply:
-
Total power consumption 110/250W (IEEE802.3af)
-
Power supply2:
-
PoE Power output:30W(IEEE802.3af)
-
shell:
-
IP40
-
Quality specification:
-
CE mark, commercial, FCC Part 15 Class B, RoHS
-
Contact:
-
wechat/whatsapp:8618819361479
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
5.6G
-
Place of Origin:
-
Guangdong, China
-
Network port:
-
Giagbit 8 port POE injector
-
Warranty:
-
5 Years
-
PoE Power supply type:
-
Data provided over pairs over 1/2and 3/6
-
Performance:
-
PoE output voltage 48V
-
LEDs indicator:
-
PoE working status
-
Power supply:
-
Total power consumption 110/250W (IEEE802.3af)
-
Power supply2:
-
PoE Power output:30W(IEEE802.3af)
-
shell:
-
IP40
-
Quality specification:
-
CE mark, commercial, FCC Part 15 Class B, RoHS
-
Contact:
-
wechat/whatsapp:8618819361479

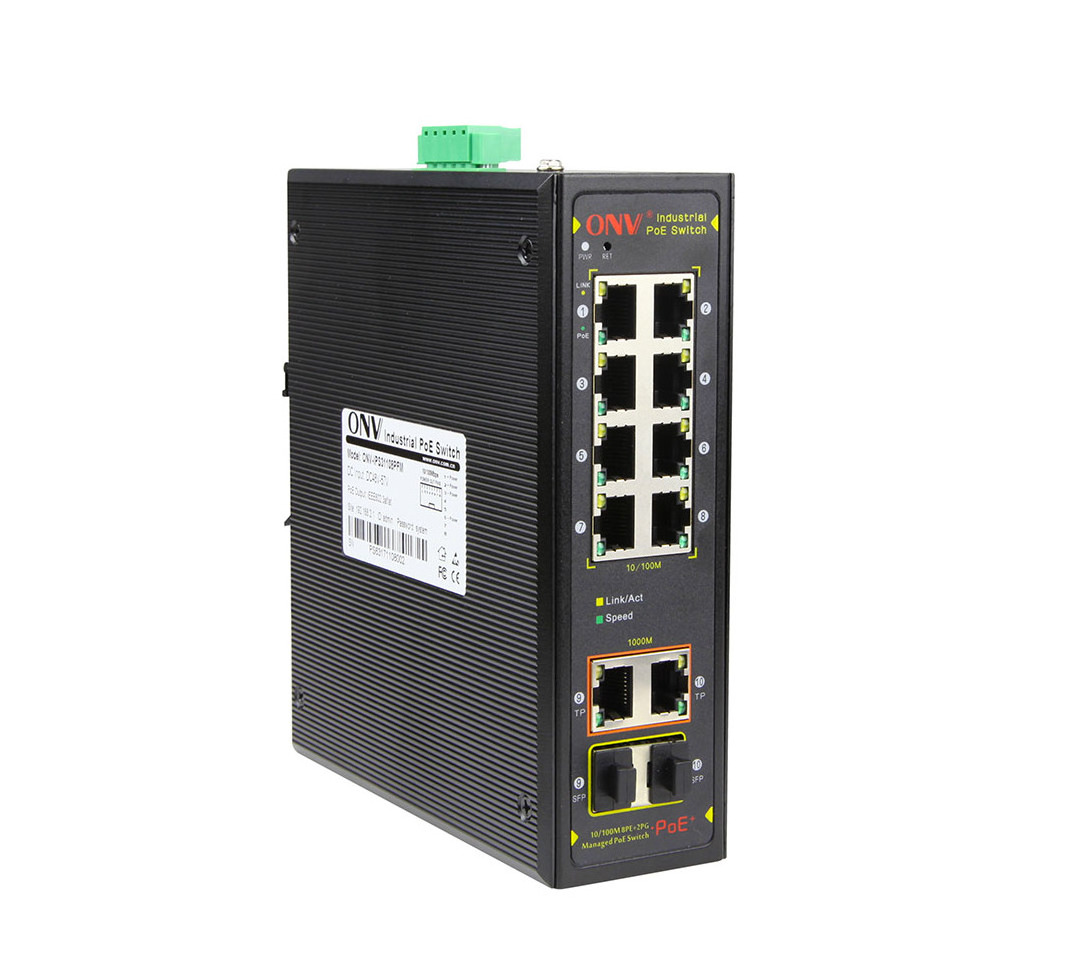

IPS31108PFB unmanaged PoE switch comes with 8x 10/100Base-T RJ45 Ethernet ports, 2x gigabit TP/SFP combo ports. It can supply power to industrial equipment such as weather-proof IP cameras with windshield wiper and heater, high-performance AP and industrial IP telephone. This industrial unmanaged PoE switch are highly flexible. The transmission distance of the SFP fiber port can be up to 120km, and with high resistance to electromagnetic interference.
◆ Industrial design, 8*10/100M RJ45 ports , 2*gigabit TP/SFP combo ports.
◆8 PoE ports support both IEEE802.3af and IEEE802.3at .
◆ Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode .
◆ RJ-45 port supports Auto MDI/MDI-X .
◆Automatic MAC address learning and aging .
◆Auto-Negotiation for Full-duplex Mode and Half-duplex Mode .
◆ Plug and play, with LED indicators for monitoring power/link/activity , easy to use .
◆ Provides DIN35 rail - type installation method .
◆Electromagnetic compatibility of up to 4 grade standard
◆IP40 p rotection class .
◆Superior performance, successfully used in industrial field
◆ Default PoE p ower s upply t ype is e nd- s pan , mid-spa n optional.
The equipment is stable and reliable
The host has low power consumption, fanless mute design, aluminum alloy metal shell, excellent heat dissipation, and ensure stable operation of products.
The user can easily understand the working status of the device through the power indicator (PWR), system status indicator (SYS), port status indicator (Link,L/A), and POE operation indicator.
|
Product Name |
10-port Industrial PoE Switch with 8 PoE Ports |
|
|
Product Model |
IPS31108PFB |
|
|
Connector |
Fiber Port: 2*gigabit TP/SFP combo ports RJ45 Port: 8*10/100BaseT port that support PoE |
|
|
Switching Performance |
Bandwidth: 5.6G (Non-blocking) Packet Buffer Memory: 4M Forwarding Rate: 4.17Mbps MAC Address Table Size: 16K Switch Processing Scheme: Store-and-Forward |
|
|
Network Medium |
10BASE-T: Cat3/ 4/ 5 UTP (≤100m) 100BASE-TX: Cat5 or more UTP (≤100m) 1000BASE-T: UTP Cat 5 or more (≤100m) |
|
|
Performance Specifications |
MTBF: 539608 hours |
|
|
Protocols and Standards |
IEEE 802.3i 10BASET
|
|
|
LED Indicators |
Power: PWR; Link; PoE, L/A |
|
|
PoE Features |
PoE Standard:IEEE802.3af/at |
|
|
|
Single PoE Port Power Output: 30W max |
|
|
|
8 PoE ports, auto detect AF/AT devices |
|
|
|
PoE Port Output Voltage: DC48-57V |
|
|
|
Power Pin Assignment:1,2+/3,6- (Default); 4,5+/7,8- (Option) |
|
|
Dimensions
|
Shell: IP40 protection grade, metal shell Dimension(LxWxH):165*148*54mm Weight: 1Kg Installation Method: DIN rail installation |
|
|
Working Environment |
Operating Temperature: -40℃ ~ +80℃; Storage Temperature: -40℃ ~ +85℃; Relative Humidity: 5 ~ 95%, non-condensing |
|
|
Certification |
CE mark, commercial
|
|
|
Warranty |
5 years warranty |
|
Product Model: IPS31108PFB
Product Description: 10-port 10/100M Industrial PoE Switch, with 8*10/100M RJ45 Ethernet ports, 2*gigabit TP/SFP combo ports. Port 1-8 support PoE, compatible with both IEEE802.3af/at. Max PoE power for each port is up to 30W.
|
Packing List |
10-port 10/100M Industrial PoE Switch ( IPS31108PFB) |
|
|
User Guide |
|
|
Warranty Card |
Note: Industrial PoE switch does not match the power supply and SFP module by default. If you need to purchase it, please refer to the accessory product information.
