Quick Details
-
Row Distance(mm):
-
500 - 750 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Tianren
-
Dimension(L*W*H):
-
7900*2730*3550
-
Weight:
-
7600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Row:
-
4
-
Engine:
-
4.5 L / 4 Cylinder / 147 KW
Quick Details
-
Number of Rows:
-
4
-
Working Width(mm):
-
3000 mm
-
Tractor Power(HP):
-
200 - 220 HP
-
Row Distance(mm):
-
500 - 750 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Tianren
-
Dimension(L*W*H):
-
7900*2730*3550
-
Weight:
-
7600 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Row:
-
4
-
Engine:
-
4.5 L / 4 Cylinder / 147 KW

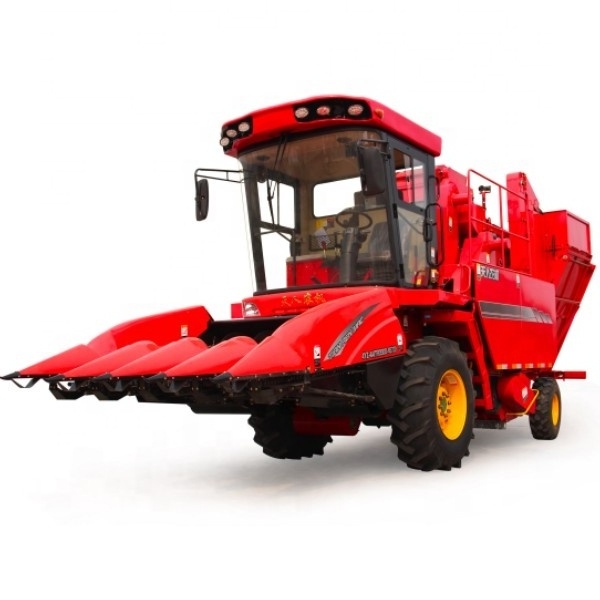

4 Row Small Corn Combine Harvester
● 4.5 L / 4 Cylinder / 113KW / 154HP
● Sweet Corn Harvest
● Seed Corn Harvest
● Function Picking, Peeling, Cutting Stalk, Unload
● Row Spacing(mm): 450, 500, 530, 560, 600 or requested
● Row Spacing(inch): 17, 19, 20, 22, 24 or requested
● Workable row spacing Range ± 50mm
● Grain Tank Volume 2.5 m³
● Max unloading Height: 2380mm
● Total Loss Rate ≤ 3%
● Peeling Rate ≥ 85%
● Harvesting Efficiency 0.8-1.6 Acre/Hour
● Minimum Harvesting Height 200mm
● Stubble Height After work ≤ 120mm
● Flail Blade Optional
● Stalk Chopper Optional
● Air Conditioner Optional
Combine Key Feature
● Trustworthy High Pressure Common Rail Diesel Engine from Weichai
● Engine with fireproof containment protection, Keep corn whisker away
● Aluminum alloy gear box
● Clutch comes with Two friction plate for extended service life
● Sheller concave with Hydraulic adjustment
● Upgraded driving cab with more comfortability
● Real time operation monitor system with LCD Panel
● Rustproof: Protection for Operation & Overseas Shipping
● Stalk will be cut into pieces smaller than 10cm with Stalk Shredder
● CE Certificate & ISO 9001 2008
Corn Head Feature
● Aluminum Alloy Gearboxes
● Standard Auger
● Durable high wear-resistence, high-intensity Glass Fiber / Engineering Plastic hoods divider cover (used in aerospace technology)
● Variable Row Spacing Design Available
● Advanced Stripper Plates
● Best way to Harvest down or lean Crop
Tsing Hua University and us co-designed the TR series corn heads. Our TR1688 series corn heads and TR9988 series Self-Propelled corn harvesters have been making more and more crop growers happy!
All products come with 1 year Warranty & Tech Support.
