Quick Details
-
Warranty:
-
2years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
YP, Yuxin
-
Model Number:
-
driving motor
-
Power:
-
1.2KW/1.2KW /1.5KW /5.5KW
-
Voltage:
-
48V
-
Torque:
-
3.18N.m
-
Max torque:
-
9.5N.m
-
Rated speed:
-
3,600rpm
-
IP level:
-
IP65
-
Motor type:
-
Permanent Magnet
-
Keywords:
-
electric vehicle driving motor
Quick Details
-
Speed(RPM):
-
3600rpm
-
Continuous Current(A):
-
56A
-
Efficiency:
-
IE 4
-
Warranty:
-
2years
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
YP, Yuxin
-
Model Number:
-
driving motor
-
Power:
-
1.2KW/1.2KW /1.5KW /5.5KW
-
Voltage:
-
48V
-
Torque:
-
3.18N.m
-
Max torque:
-
9.5N.m
-
Rated speed:
-
3,600rpm
-
IP level:
-
IP65
-
Motor type:
-
Permanent Magnet
-
Keywords:
-
electric vehicle driving motor

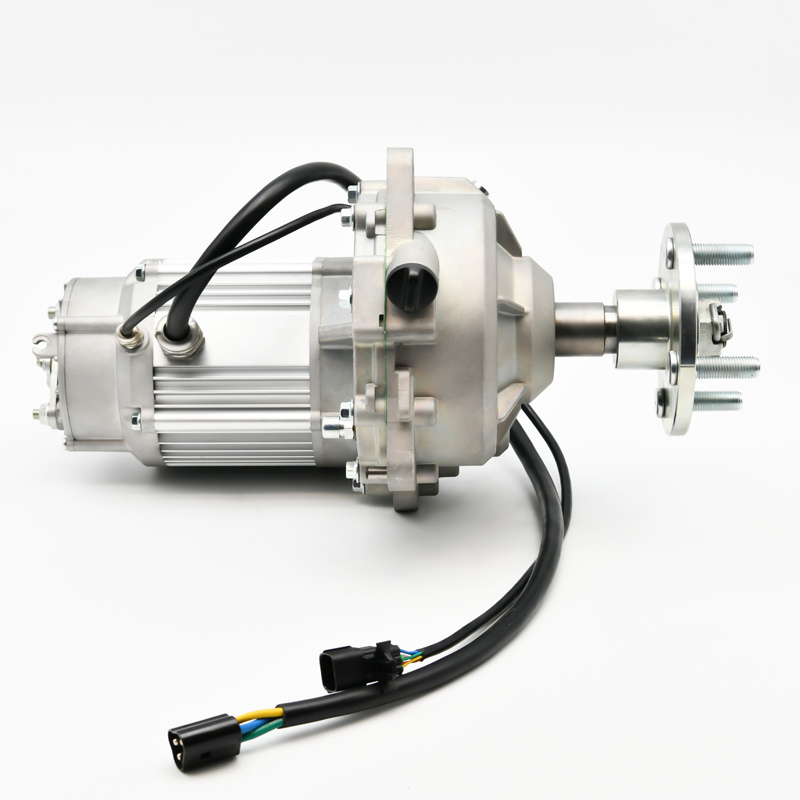

Product name
YP,Yuxin 72v 1kw-50kw EV Car Engine Kit and Controller 1.2kw pmsm motor driving kit for electric vehicle driving motor
The application of our products are as follows:
- Electric push lawn mower, chainsaw, blower etc
- Electric zero turn mower, riding tractor.
- Golf cart, ATV, UTV etc.
- AGV, electric forklift.
- PV application
Here is our main products:
- Driving motor with gearbox and brake (800w to 5kw)
- Blade motor (800w to 5kw)
- Driving controller (800w to 5kw)
- Blade controller (800w to 5kw)
There are about 27 years experiences in this industry. We are the specified supplier who cooperate with many famous customers in this industry for a long time, such as:
- Greenworks
- Ryobi
- TTI
- Alamo Group
- Briggs&Stratton
- Generac
Specifications
|
General specifications of motors
|
|
|
|
|
|
|||||
|
Specifications
|
1.2kW 48V Driving motor
|
1.2kW 48V Blade motor
|
2kW Driving motor
|
3kW Driving motor
|
5kW Driving motor
|
|||||
|
Output power：
|
1.2
|
1.2
|
2
|
3
|
5
|
|||||
|
Voltage：
|
48~60
|
48~60
|
72~80
|
72~80
|
72~80
|
|||||
|
Rated torque：
|
3.18
|
3.18
|
4.54
|
6.9
|
11.4
|
|||||
|
Max torque：
|
6.5
|
7
|
12
|
17.25
|
28.5
|
|||||
|
Rated speed：
|
3800
|
3600
|
4200
|
4200
|
4200
|
|||||
|
Working method
|
S9
|
S1
|
S9
|
S9
|
S9
|
|||||
|
IP level：
|
IP65
|
IP65
|
IP65
|
IP65
|
IP65
|
|||||
|
Weight：
|
4.6KG
|
4.9KG
|
9KG
|
11KG
|
13.5KG
|
|||||
|
Basic functions：
|
Lawn mower walking
|
Lawn mower cutting
|
Lawn mower walking
|
Lawn mower walking
|
Lawn mower walking
|
|||||
|
Product Size：
|
φ140x130mm
|
φ175x66mm
|
φ195x90mm
|
φ195x100mm
|
φ195x130mm
|
|||||
Product description
This
driving motor
is used for:
Lawn Mower,Gasoline Generator, Grass Trimmer, Chainsaw, Leaf blower, Snow Blower, Tractor,other off-road electric vehicles......
Product show
About Us
Chongqing Yurui Agricultural Machinery Sales Co., Ltd.
Chongqing Yuxin Pingrui Electronic Co., Ltd. is the parent company of Chongqing Yurui Agricultural Machinery Sales Co., Ltd.
The parent company is with R M B
55.03 millions
registered capital, factory in Chongqing city, covering the land of
57,664 square meters
,
1,020 employees
,
a comprehensive innovation company that integrates electric components of general gasoline engine, spare parts of generator, driving motor and controller system and lithium battery storage power system. Our product can be applied for non-road general gasoline engine, outboard engine, outdoor battery-powered product, gardening tools, agricultural machinery and Micro-electric vehicle etc.
The industry includes electronic assembly, stamping, injection, machining, die-casting and foundry. With a good technology R & D innovation ability, a complete electronic manufacturing technology capacity, excellent automatic production process, perfect quality assurance system, rapid customer response mechanism, all-round solution to various R & D technical problems for customers, all-round customer service.
We have own 115 national patents including 13 invention patents, 87 utility model patents, and 15 appearance patents.
In addition, the quality management system is ISO 9 0 0 1. The products are sold well in all cities around China, and our products are also exported to United States.
We have been partners of many famous companies for many years, such as Loncin, Yamaha, Honda, Briggs & Stratton, Generac, Cummins, Kohler, Greenworks, Parun and Hidea.
We also welcome OEM and ODM orders. Our philosophy is that "Quality wins the market and sincerely serves customers". We have been deeply engaged in the general machinery industry for more than 15 years, and have won high praise from customers at home and abroad with excellent professional technology.
