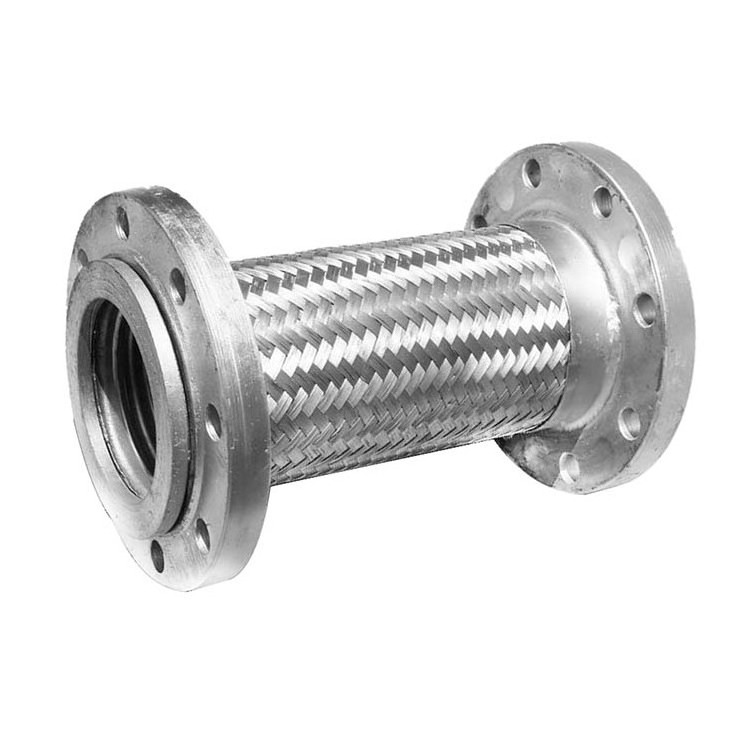

Flange Connection Stainless Steel Flexible Metallic Hose

Flange Connection Stainless Steel Flexible Metallic Hose

FOB Reference Price: Get Latest Price

≥10 Meters

US $7

≥200 Meters

US $5.86

≥500 Meters

US $4.86

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hebei, China

Brand Name:: Custom

Model Number:: Metal hose

Application:: Industrial, Mining

Nominal diameter:: 50mm

Inner diameter:: 50.8mm

Outer diameter:: 61.5 mm(bellow) 63.5 mm(braid mesh)

Minimum bending radius:: 240 mm(static) 780 mm(dynamic)

Maximum working pressure:: 2.5 Mpa(single braid mesh) 4.0 Mpa(double braid mesh)

weight:: 0.88kg/m(bellow) 1.75kg/m(single braid mesh)

Length:: Customers' Requirement

Quick Details

Steel Grade:: 300 Series

Tolerance:: ±5%

Grade:: steel

Place of Origin:: Hebei, China

Brand Name:: Custom

Model Number:: Metal hose

Application:: Industrial, Mining

Nominal diameter:: 50mm

Inner diameter:: 50.8mm

Outer diameter:: 61.5 mm(bellow) 63.5 mm(braid mesh)

Minimum bending radius:: 240 mm(static) 780 mm(dynamic)

Maximum working pressure:: 2.5 Mpa(single braid mesh) 4.0 Mpa(double braid mesh)

weight:: 0.88kg/m(bellow) 1.75kg/m(single braid mesh)

Length:: Customers' Requirement

Product Description

Please tell us the type, length and connection mode of the metal hose you need or any problem, we will do our best for you.

Features

1. Corrosion resistance

2. High temperature resistance

3. Low temperature resistance( -196℃-+450℃ )

4. Acid and alkali resistance

5. A brasion resistance

6. O il resistance

7. Light weight

8. Small volume

9. Good elasticity

Application

Transmission medium:

Acid,

Alkali,

Oil,

Gas,

Water,

Air,

Compressed Air,

etc

Product specifications

DN	15mm~600mm
Min.ID	2.5mm~600mm
Max.OD	8.5mm~660mm
PN	0.6MPa~35MPa
PS	1.5PN
PB	3PN~4PN
Min.bend radius static	>=10DN
Min.bend radius dynamic	>=2Rj

Related information

Stainless steel pressure resistant metal hose is a flexible component for conveying various media, which is made of stainless steel bellows with one or more layers of steel wire or steel belt net and connected by joint or flange at both ends.

The corrugated pipe of metal hose is formed by the extremely thin seamless or longitudinal welded stainless steel thin-walled pipe through high-precision plastic deformation processing. The flexibility and fatigue resistance of the hose are determined by the elastic characteristics of the contour of the corrugated pipe. The metal hose is easy to absorb all kinds of movement deformation and cyclic load, especially to meet the needs of the system for large displacement compensation, and to absorb the movement, thermal expansion and vibration of the pipe system It plays an important role.

Company Introduction

Hengshui Dexin Rubber & Plastic Co., Ltd. is located in Hengshui City, Hebei Province, located in the north of China, 200
kilometers away from Tianjin port. The main products of the company are various kinds of thread braided (spiral) hose, oil
resistant hose, suction and drainage hose, acid resistant (alkali) rubber hose, dilute acid (alkali) suction hose, heat resistant hose, suction hot hose, high abrasion resistant jet hose, sandblasting hose, wear-resistant sand suction hose, Construction Engineering gas hose, water delivery hose, water suction and drainage hose, spray hose, oxygen hose, acetylene hose, double Welded rubber hose, constant pressure rubber hose, high-pressure steel wire braided rubber hose, high-pressure steel wire wound rubber hose, heavy-duty four-layer steel wire reinforced rubber hydraulic hose, heavy-duty high pulse multi-layer steel wire reinforced rubber hydraulic hose, flame retardant and high temperature resistant rubber hose, expansion pipe and other types of high-pressure hydraulic rubber hose, clamp rubber hose, resin pipe, various types of hydraulic rubber hose joints, metal hose, corrugated compensator, etc., the company We also produce all kinds of quick joints, stainless steel joints, high pressure joints, hydraulic equipment and various rubber products. Our products have the advantages of high pressure, high temperature resistance, good flexibility, good performance, small pulse pressure deformation and large length. At the same time, we process all kinds of special and customized rubber products. The products are produced with advanced equipment and technology to effectively guarantee the quality of the products. We have passed the international quality system certification, and all technical indicators of the products have reached the international advanced level. Our products have been exported to Africa, Thailand, India, Germany, Iranand other countries, and have been highly recognized by customers with excellent quality and longer service life. We promise you high quality products, competitive price and excellent service.
