- Product Details
- {{item.text}}

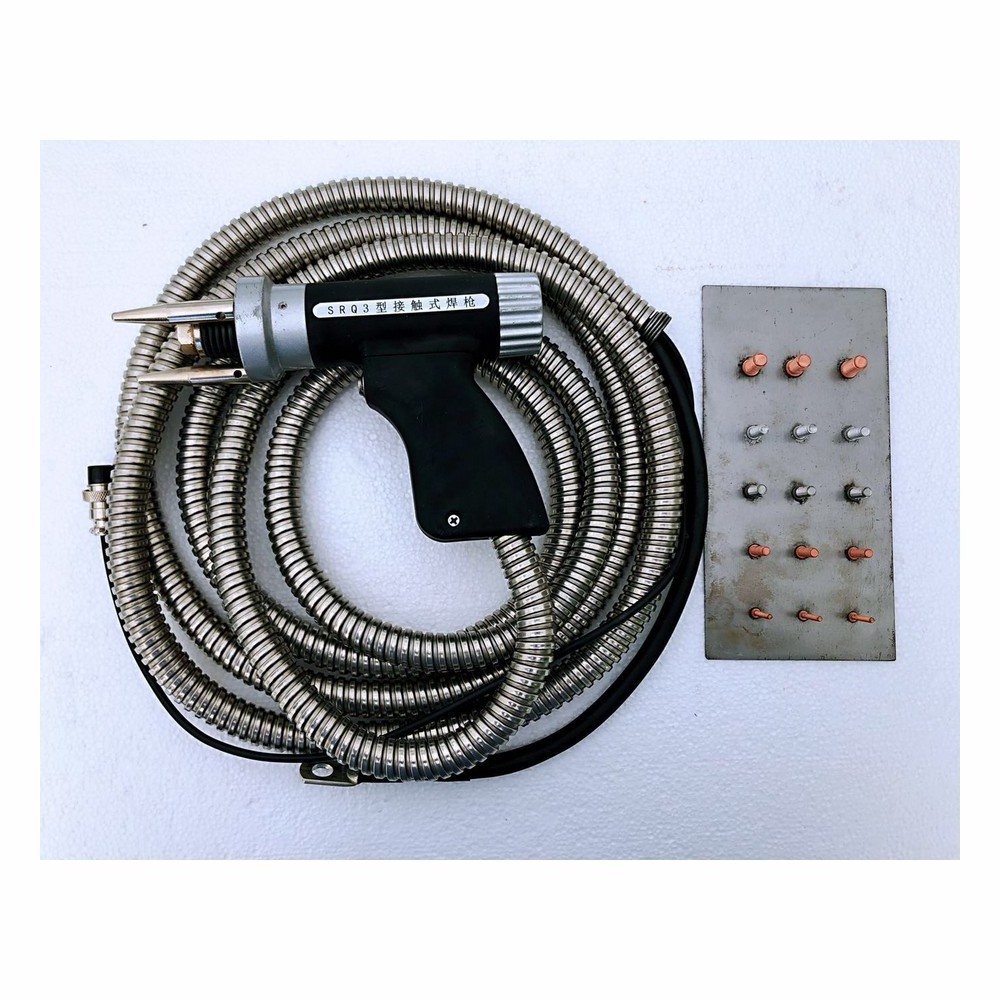

Quick Details
-
Brand Name:
-
Iking
-
Model Number:
-
SRQ3
-
Welding Range:
-
M3 to M10 Studs
-
Weight:
-
1.5kg
-
Welding Type:
-
CD Stud Welding Gun
-
Operation Mode:
-
Automatic torch
-
Welding Mode:
-
Semi-Automatic welding gun
-
Certificate:
-
CE Certificate
-
Product name:
-
Stud Welding Gun
-
Material:
-
Copper, ABS, Steel, etc
-
Usage:
-
To Weld CD Studs
-
Feature:
-
Fit Nelson Type
Quick Details
-
Type:
-
Welding Torch
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Iking
-
Model Number:
-
SRQ3
-
Welding Range:
-
M3 to M10 Studs
-
Weight:
-
1.5kg
-
Welding Type:
-
CD Stud Welding Gun
-
Operation Mode:
-
Automatic torch
-
Welding Mode:
-
Semi-Automatic welding gun
-
Certificate:
-
CE Certificate
-
Product name:
-
Stud Welding Gun
-
Material:
-
Copper, ABS, Steel, etc
-
Usage:
-
To Weld CD Studs
-
Feature:
-
Fit Nelson Type
Specification of Hot Sale IKING Arc Welding Gun for Composite Deck
1. Human engineering design.
2. High accuracy and automatic welding.
3. Light weight and low heat emission.
4. Anti-crossion and strong lifting.
|
Model No.
|
SRQ3
|
SRQ5
|
SNQ6
|
SNQ7
|
SNQ8
|
SNQ9
|
|||||
|
Gunshell Material
|
ABS
|
ABS
|
Cast Aluminum
|
Modified Nylon
|
Nylon
|
Cast Aluminum
|
|||||
|
Damping Device
|
/
|
/
|
/
|
/
|
Have
|
Have
|
|||||
|
Welding Diameter Range
|
M3-M12
|
M3-M12
|
M12-M28
|
M3-M12
|
M10-M25
|
M12-M28
|
|||||
|
Maximum Lifting Height
|
2mm
|
2mm
|
15mm
|
8mm
|
15mm
|
15mm
|
|||||
|
Drive Way
|
Electromagnetic
|
Electromagnetic
|
Electromagnetic
|
Electromagnetic
|
Electromagnetic
|
Electromagnetic
|
|||||
|
Cooling Method
|
Air
|
Air
|
Have
|
Have
|
Have
|
Have
|
|||||
|
Solderable Materials
|
Copper plated steel, steel, stainless steel, aluminum, etc
|
|
Carbon Steel, Stainless Steel, Alloy
|
|
|
|
|||||
|
Gas Protection
|
/
|
/
|
/
|
Can Match
|
/
|
/
|
|||||
|
Short Cycle Welding
|
/
|
/
|
/
|
Adaption
|
/
|
/
|
|||||
|
Long Cycle Welding
|
/
|
/
|
Adaption
|
|
|
|
|||||
|
CD Stud Welding
|
Adaption
|
|
/
|
/
|
/
|
/
|
|||||
|
Welding Cable Specification
|
35mm2
|
35mm2
|
70/95mm
2
|
35mm
2
|
70/95mm
2
|
70/95mm
2
|
|||||
|
Welding Cable Length
|
4m
|
4m
|
2m
|
5m
|
2m
|
2m
|
|||||
|
Control Cable Specification
|
4*1mm2
|
4*1mm2
|
4*1mm
2
|
7*1mm
2
|
4*1mm
2
|
4*1mm
2
|
|||||
|
Control Cable Length
|
3m
|
3m
|
2m
|
5m
|
2m
|
2m
|
|||||
|
Weight (Without Cable)
|
0.8kg
|
0.8kg
|
2.4kg
|
1.0kg
|
2.0kg
|
2.5kg
|
|||||
|
Adapted Models
|
SR/SSR
|
SR/SSR
|
SN/SM/ST/SN7
|
SSC/SN/SN7
|
SN/SM/ST/SN7
|
SN/SM/ST/SN7
|
|||||
1. Package: cartons or ploy wood box.
2. size: 550mm*550mm*280mm.
CHINA IKING INDUSTRIAL GROUP CO.,LTD
IKING GROUP is one of the most professional manufacturer and exporter of stud welding products. We have a shear stud and Bolt&Nuts factory in Tianjin city. We can provide various high quality ARC studs, CD studs and ARC welding machines&
guns. We also can manufacture according to customer's special requirements.
IKING products are strictly implement quality standards, both domestically and internationally such as ENISO13918.
AWS D1.1. JIS B918 and so on. IKING quality control department is working strictly to make sure no one unqualified of products get out of our factory.
After 27 years development, now we totally have 15 sets of machines and can reach 4000tons per month producing
capacity. By our always continuous innovation on production technology and harsh control on products quality, IKING have had got the CE,ISO,SGS certificates and have become reliable supplier and good partners for our customers.
Now IKING have eatablished long-term trade relationships with more than 50 countries from Ruissa,UK,USA,German,
Poland,Kuwait,Saudi,Arabia,Bangladesh,VAE,Vietnam,South Africa and so on.
Sincerely thanks for you choosing "IKING GROUP", We will strive to exceed your expectations and be your best partners in china
Corner of the workshop
The company has more advanced
production equipments,more than
100 skilled workers
Operation workshop
We are a leading shear stud conectors
manufacturers in china. We have exported many shear studs to oversea
market in last year.
Professional testing team
Professional quality inspection team to ensure the quality is up to standard before leaving the factroy.
