Quick Details
-
Transmitter Input:
-
HDMI*1 USB*1 RS232*1 3.5Audio in*1 3.5Audio out*1
-
Transmitter Output:
-
LC*1 HDMI*1
-
Receiver Input:
-
LC*1
-
Receiver Output:
-
HDMI*1 RS232*1 3.5Audio in*1 3.5Audio out*1 USB*4
-
Maximum resolution:
-
3840*2160@60HZ
-
Transmission distance:
-
20KM(standard)
-
Cable:
-
Single-mode 1-core fiber
-
Operating temperature:
-
-5℃~+60℃
-
Size:
-
187mm*105mm*28mm
-
Weight:
-
Transmitter:0.3kg. Receiver:0.3kg
Quick Details
-
Brand Name:
-
ORIVISION
-
Model Number:
-
ZY-OKH901
-
Place of Origin:
-
Jiangsu, China
-
Transmitter Input:
-
HDMI*1 USB*1 RS232*1 3.5Audio in*1 3.5Audio out*1
-
Transmitter Output:
-
LC*1 HDMI*1
-
Receiver Input:
-
LC*1
-
Receiver Output:
-
HDMI*1 RS232*1 3.5Audio in*1 3.5Audio out*1 USB*4
-
Maximum resolution:
-
3840*2160@60HZ
-
Transmission distance:
-
20KM(standard)
-
Cable:
-
Single-mode 1-core fiber
-
Operating temperature:
-
-5℃~+60℃
-
Size:
-
187mm*105mm*28mm
-
Weight:
-
Transmitter:0.3kg. Receiver:0.3kg
Product Description
OKH901 is a fiber-based extender designed to extend uncompressed 4K@60hz Video signals and USB2.0 devices up to 300m(Using Multimode Dual Core SFP) or 10km(Using Single model core SFP) over duplex fiber cables. The OKH901 features an HDMI input and output, analog audio input and output, USB2.0 devices KVM, RS-232 control port, and a Gigabit Ethernet port. For point-to point transmission.
Product Feature
• Support resolution up to 3840x2160@60fps • Support bi-direction audio transmission • Support EDID, RS232, compatible HDMI2.1, HDCP2.2/2.3 • Automatically adjust video compression rate to ensure smooth video streaming • High-speed ASIC technology to ensure there is no delay for remote images, keyboards, and mice • LC Port: Single-mode one-core SFP, standard transmit distance is 20KM (40KM 60KM 80KM is Optional) • Multimode Dual Core SFP: 300M • Support point-to-point transmission • Plug and play without any settings • Supports USB2.0 external devices such as keyboards, mouse, USB flash drives, printers, scanners, etc. • Built-in ESD protection circuit that can effectively prevent electrostatic damage
Product Paramenters
|
Name
|
4K@60 HDMI KVM Fiber Optical Extender
|
|
Model
|
ZY-OKH901
|
|
Interface Standard
|
HDMI 2.1*1 HDCP2.2/2.3
|
|
Resolution
|
3840x2160P60/1920x1200P60/1920x1080I50/1920x1080I60/1920x1080P60/
1920x1080P50/1920x1080P30/1920x1080P25/1920x1080P24/1280x720P60/
1280x720P50/1680x1050P60/1600x1200P60/1600x900P60/1440x900P60/
1400x1050P60/1366x768P60/1360x768P60/1280x1024P60/1280x800P60/
1024x768P60/800x600P60
|
|
Audio
|
3.5mm aduio input, Format:44.1K,48K,96K,176K,192K
|
|
SFP
|
Interface: LC
Types: SFP Single mode
Wavelength: 1550/1310nm
Bandwidth: 3Gbps
Distance: 10KM (default) 20KM 40KM 60KM 80KM (Optional)
Attenuation: -3db
|
|
RS232
|
Interface:DB9
Baudrate:11520 Data-Bits:8bit |
|
Keyboard/Mouse
|
Transmitter interface: Type A USB interface
Receiver interface: Type B USB interface
|
|
Operating temperature
|
-5℃~＋60℃
|
|
Environment humidity
|
5~90%, No condensation
|
|
Power
|
DC 12V/1A
|
|
Size
|
187*105*28mm (Length * width * height)
|
|
Weight
|
Transmitter：0.3kg
Receiver：0.3kg
|

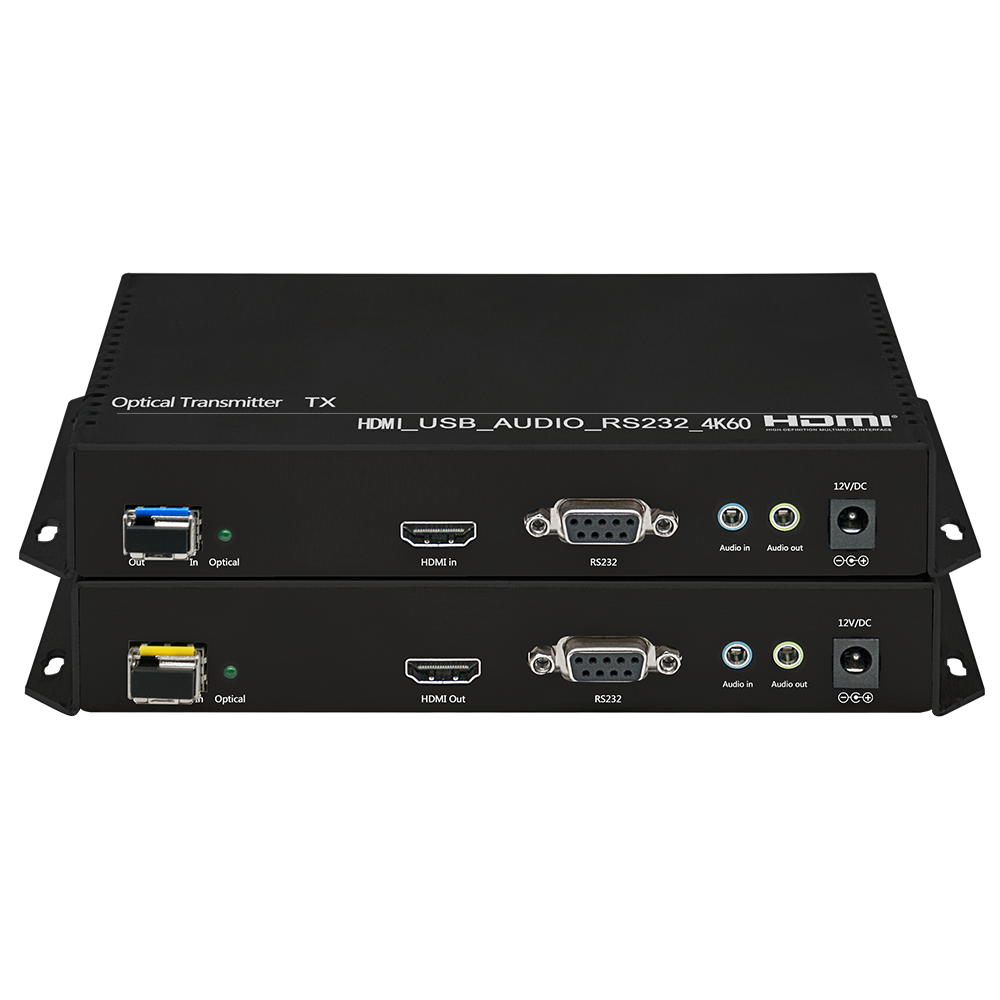

Detailed Images
Transmitter
Receiver
