Quick Details
-
Voltage:
-
380v
-
Weight:
-
36000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Forui
-
Voltage:
-
380v
-
Weight:
-
36000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Display
Forui Rotary Trommel Screens utilize continuous tumbling and lifting actions to size and separate feed materials.
To serve many applications, Forui Rotary Trommel Screens are offered with various types of screen media that have a variety of aperture sizes depending on the application requirement. For units that are larger than 4m in diameter, Forui performs a finite element analysis of a unit before manufacturing to ensure optimal design strength.

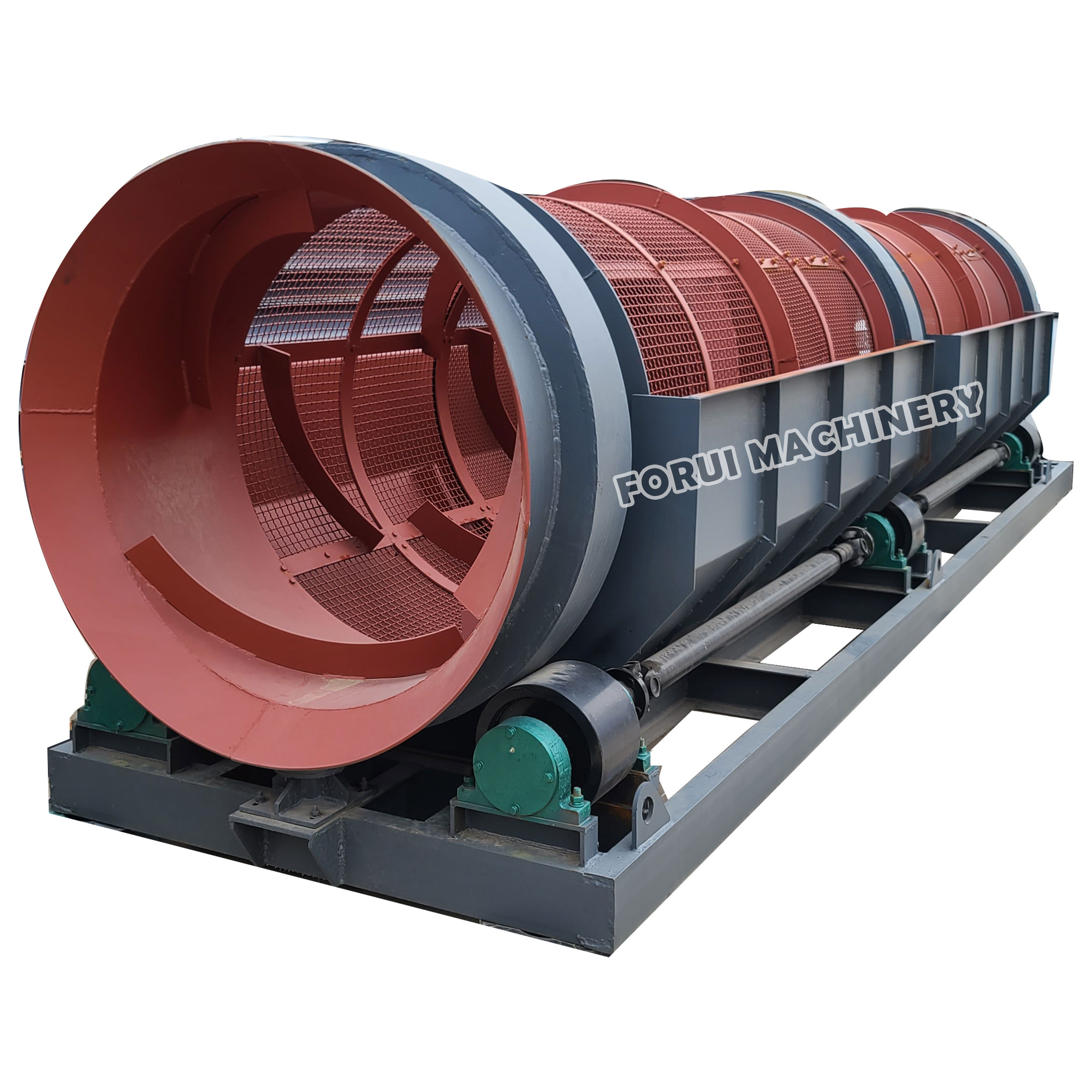

Forui small trommel screen(20 tph to 200 tph)
Forui heavy duty trommel screen
How Rotary Trommels Work
As the cylindrical drum of a Rotary Trommel Screen rotates, raw feed material is lifted on shelves until it nears the top of the drum. Material then falls, tumbling onto other material at the bottom of the drum. This action helps to break down softer fractions, as well as separate different types of materials. As the tumbling continues, smaller size fractions filter through holes in the screen plating, while larger material continues along the length of the cylinder to discharge at the end
.
Features
Why Forui Rotary Trommels
Forui trommel screening specialists supply complete turnkey trommel solutions tailored to your specific process and plant requirements, from engineering and design, through to installation, commissioning, field service and the supply of trommel spares,including screen panels.
* Completely customised according to load, oversize, particle size distribution, solids SG and operating conditions of your application
* Proficient in both wet and dry applications
* Trommel drum from 950 – 5 500 mm (diameter), 1 000 – 9 000 mm (length)
* Dual sizing can be achieved in a single trommel
* Trommel drum from 950 – 5 500 mm (diameter), 1 000 – 9 000 mm (length)
* Dual sizing can be achieved in a single trommel
Forui heavy duty rotary trommel screens are equiped with 3cm diameter rebar to reinforce the structure:
More Details
Specification
|
Model
|
Capacity Coarse
(T/H)
|
Capacity Fine
(T/H)
|
Rotate Speed
(R/min)
|
Power
(kw)
|
Weight
(Ton)
|
|
TS600*1800
|
18
|
8
|
26
|
2.2~3
|
1.36
|
|
TS800*1400
|
36
|
16
|
22
|
4
|
2.54
|
|
TS1000*3000
|
60
|
27
|
18
|
5.5~7.5
|
3.6
|
|
TS1200*3600
|
90
|
40
|
16
|
7.5~11
|
5.9
|
|
TS1500*3600
|
110
|
50
|
14
|
11~13
|
9.52
|
|
TS1500*4500
|
100
|
60
|
13
|
11*2
|
11
|
|
TS1800*4500
|
165
|
77
|
12
|
15*2
|
13.6
|
|
TS2100*4200
|
230
|
115
|
10
|
15*2
|
18.14
|
|
TS2400*6000
|
200
|
200
|
12
|
18.5*2
|
27
|
|
TS2500*6000
|
400
|
300
|
16
|
30*2
|
28
|
trommel screen application
Forui rotary trommel screens are used across the world’s platinum, gold, copper, iron ore,diamond and mineral sands industries.
It also can screen materials in municipal solid waste and resource recovery
