Quick Details
-
Applicable Industries:
-
Industrial
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
P&N
-
Dimension(L*W*H):
-
160*122*147mm
-
Core Components:
-
Thermoelectric modules, Peltier TEC kids, Heat sink, Fans, Thermoelectric assembly
-
Weight (KG):
-
1.8 KG
-
Product name:
-
thermoelectric peltier TEC cooling
-
Cooling Power Qcmax:
-
40W
-
Running Current:
-
6.3A
-
Nominal Voltage:
-
12V
-
Max Voltage:
-
15V
-
Power Input:
-
76W
-
Operating Temperature:
-
-10 to 50°C
-
Weight:
-
1.8Kg
-
MTBF:
-
70,000hours
-
Performance Tolerance:
-
±10%
Quick Details
-
Type:
-
AIR COOLER
-
Mounting:
-
Wall / Window Mount
-
Airflow:
-
500m³/h
-
Applicable Industries:
-
Industrial
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
P&N
-
Dimension(L*W*H):
-
160*122*147mm
-
Core Components:
-
Thermoelectric modules, Peltier TEC kids, Heat sink, Fans, Thermoelectric assembly
-
Weight (KG):
-
1.8 KG
-
Product name:
-
thermoelectric peltier TEC cooling
-
Cooling Power Qcmax:
-
40W
-
Running Current:
-
6.3A
-
Nominal Voltage:
-
12V
-
Max Voltage:
-
15V
-
Power Input:
-
76W
-
Operating Temperature:
-
-10 to 50°C
-
Weight:
-
1.8Kg
-
MTBF:
-
70,000hours
-
Performance Tolerance:
-
±10%
Hot Products
Product Description
What is
thermoelectric cooling
Thermoelectric coolings
are devices for cooling, heating or temperature control, which consist of different components such as thermoelectric modules, fans, heat sinks, enclosures, power supply and other components such as thermoelectric controllers. unlike other conventional compressor-based systems, these systems are low in weight and compact in design. They are eco-friendly and ROHS compliant.
Main Features of
thermoelectric cooling
:
1. Solid-State (no moving parts)
2. Compact and lightweight
3. Maintenance-free
4. Acoustically and electrically silent
5. Heating, cooling and temperature cycling capability
6. Wide operating temperature range
7. Precise temperature control
(to within 0.1°C)
8. Operation in any orientation
(zero gravity and high G environments)
9. Environmentally friendly
10. Spot cooling/heating
2. Compact and lightweight
3. Maintenance-free
4. Acoustically and electrically silent
5. Heating, cooling and temperature cycling capability
6. Wide operating temperature range
7. Precise temperature control
(to within 0.1°C)
8. Operation in any orientation
(zero gravity and high G environments)
9. Environmentally friendly
10. Spot cooling/heating
Work through
thermoelectric cooling peltier
Thermoelectric coolings
are also called peltier assembly, thermoelectric cooling system and so on. It works through TEC coolers, which uses the Peltier effect to transfer heat from one side of the device to the other, with consumption of DC power. In practice the main application is cooling. However, It can be used either for heating or for temperature control. As a professional manufacturer of thermoelectric assembly, we manufacture the thermoelectric cools by ourselves basis on MIL-STD-883 and Telcordia GR-468-CORE standard to guarantee their quality. Please kindly click it to see our thermoelectric cools or contact us for detail.
Application
Thermoelectric coolings
are used for medical and biological instrument, Optoelectronic, consumer electronics, automotive, telecom equipment, power generation and so on.
If you can't find the application you need, please contact us for more detail application.
Products details

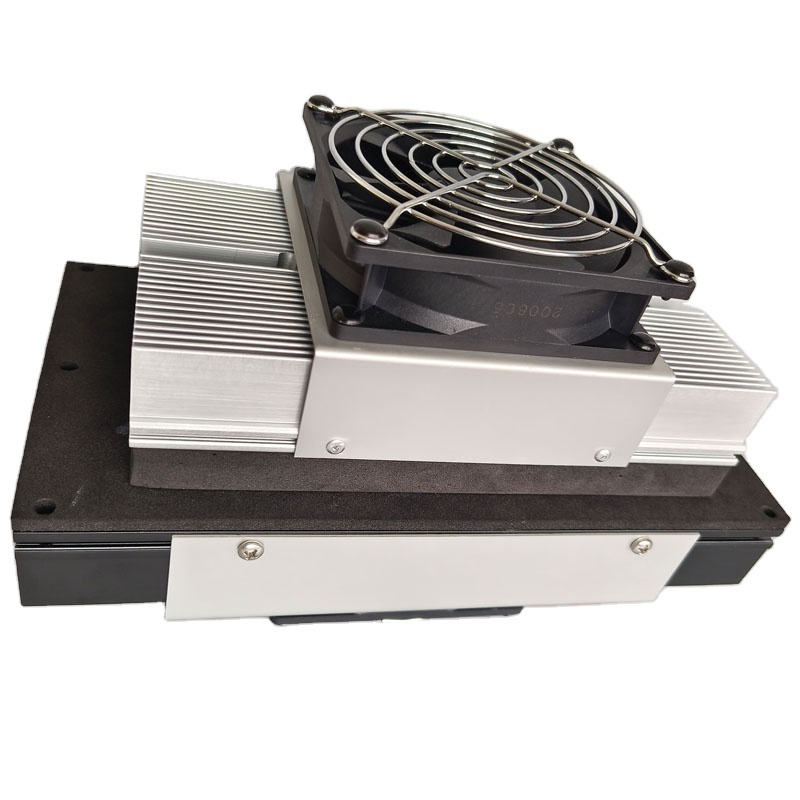

Peltier Thermoelectric Freezer
Specification
1. Cooling Power Q Max(W): 40W
2. Running Current(A): 6.3A
3. Nominal Voltage(V): 12V
4. Max Voltage(V): 15V
5. Power Input(W): 76W
6. Operating Temperature(°C): -10--50°C
7. Weight: 1.8KG
8. MTBF(fans-hrs): 70,000
9. Performance Tolerance: ±10%
10. Size: 160*122*147 mm
4. Max Voltage(V): 15V
5. Power Input(W): 76W
6. Operating Temperature(°C): -10--50°C
7. Weight: 1.8KG
8. MTBF(fans-hrs): 70,000
9. Performance Tolerance: ±10%
10. Size: 160*122*147 mm
Our
thermoelectric coolings
are manufactured in an ISO 9001:2008 & ISO/TS 16949:2009 certified facility and are designed to meet the cooling needs of many thermal management applications in the medical, analytical, industrial and telecom markets.
12V 40W T hermoelectric Cooling Installation and Service manual
Installation:
12v 40W thermoelectric cooling is mounted in a cabinet with “Hot side” mounted externally;
Suitable cabinet cutout is 65x82mm;
Recommended for general purposes: the TE assembly is fastened with 2XM4 machine screws,
12v 40W thermoelectric cooling is mounted in a cabinet with “Hot side” mounted externally;
Suitable cabinet cutout is 65x82mm;
Recommended for general purposes: the TE assembly is fastened with 2XM4 machine screws,
2XM4 flat washers so that the gasket material will seal off around the flange of the assembly.
Service:
Fan impellers and heat sinks must be cleaned on regular intervals to reduce risk for
overheating and reduction of cooling function.
Service:
Fan impellers and heat sinks must be cleaned on regular intervals to reduce risk for
overheating and reduction of cooling function.
As a professional manufacturer, we also could design and manufacturer various size of
12V 40W peltier thermoelectric freezer
as following items show to meet your different request.
|
Model No.
|
Pc Max
|
Current
|
Voltage
|
Fan Position
|
Input Power
|
COP
|
Ambient
|
Wt.
|
Dimension
|
|
AA-019-12-00
|
19W
|
2.3A
|
12V
|
218
Hot
&
Cold Sides |
28W
|
0.68
|
|
0.32
|
80*62*105mm
|
|
AA-024-12-00
|
24W
|
2.4A
|
12V
|
|
29W
|
0.83
|
|
0.59
|
100*82*115mm
|
|
AA-034-12-00
|
34W
|
3.5A
|
12V
|
|
42W
|
0.81
|
|
0.91
|
120*102*125mm
|
|
AA-040-12-00
|
40W
|
6.3A
|
12V
|
|
76W
|
0.54
|
|
1.8
|
160*122*147mm
|
|
AA-040-24-00
|
40W
|
3.2A
|
24V
|
|
77W
|
0.53
|
|
1.8
|
160*122*147mm
|
|
AA-070-12-00
|
70W
|
7.6A
|
12V
|
|
91W
|
0.75
|
|
2.5
|
230*122*147mm
|
|
AA-070-24-00
|
70W
|
3.8A
|
24V
|
|
91W
|
0.75
|
|
2.5
|
230*122*147mm
|
|
AA-100-24-00
|
100W
|
6.5A
|
24V
|
|
156W
|
0.61
|
|
4.1
|
300*152*166mm
|
|
AA-100-48-00
|
100W
|
3.3A
|
48V
|
|
158W
|
0.60
|
|
4.1
|
300*152*166mm
|
|
AA-150-24-00
|
150W
|
9.1A
|
24V
|
|
218W
|
0.61
|
|
5.0
|
300*181*176mm
|
|
AA-150-48-00
|
150W
|
4.6A
|
48V
|
|
221W
|
0.61
|
|
5.0
|
300*181*176mm
|
|
AA-200-24-00
|
200W
|
9.8A
|
24V
|
|
235W
|
0.76
|
|
7.3
|
400*181*198mm
|
|
AA-200-48-00
|
200W
|
7.3A
|
48V
|
|
350W
|
0.57
|
|
7.3
|
400*181*198mm
|
More Series T
hermoelectric Cooling System
Fluid Thinking, Smart Solutions
Over 10 years experiences of advanced research ensure that P&N remains at the forefront of technology and can advise our clients from a basis of up-to-date knowledge. P&N has established R&D center with sophisticated lab equipment, which provides a wide range of technical consultancy services in the design of thermoelectric projects. These services can be used through a project--from initial planning and feasibility studies, through preliminary and detailed design, to construction and operation. We focus on delivering appropriate solutions for the cost-effective development of projects.
+ 86-592-3521978 +86-13950174967 Stephen.yang@pengnantech.com Xiamen, China
We sincerely hope you can join us and enjoy our excellent quality, continuous innovation and best service.
☺
Why Us
First: High Performance
Compared with other supplier, our
thermoelectric cooler system
has more delta t max with less resistance tolerance. Not like other supplier's thermoelectric cools which only could work below 150°C, our products could work at 225°C temperature. Followings are detail difference items for your reference.
|
Item
|
P&N Tech
|
High-end Competitors
|
Low-end Competitors
|
|
Delta T Max
|
72°C
|
72°C
|
68°C
|
|
Resistance Tolerance
|
<7%
|
<7%
|
10%--15%
|
|
Limited ambient temperature of TEM
|
+225℃
|
+225℃
|
+150℃
|
|
Thickness and Flatness tolerance of TEM
|
±0.013mm
|
±0.013mm
|
±0.02mm
|
|
Price
|
Optimum Cost high quality
|
High quality high price
|
Low quality low price
|
Second: Precise thickness tolerance
Our thermoelectric coolings' acceptable thickness tolerance is less than ±0.03mm, which would make the products be more effective. For many suppliers, the thickness tolerance is ±0.1mm， when magnifying 100 times, you would find the surface is full of peaks and valleys, and it would decrease its cool capacity. For more precise thickness tolerance, please feel free to contact us. We could make ±0.02mm tolerance or even ±0.013mm.
Third: High reliability
In order to guarantee thermoelectric coolings' reliability, we will do related tests according to MIL-STD-883H including low
temperature storage, high temperature storage, temperature cycling and power cycle testing. According to these test, our products MTBF is more than 100,000hours.
temperature storage, high temperature storage, temperature cycling and power cycle testing. According to these test, our products MTBF is more than 100,000hours.
Company Introduction
ABOUT P&N TECHNOLOGY
P&N Tech is an ISO9001/TS-16949 certified manufacturer, which is professional in design & manufacturing various kinds of
p
eltier system kits
, s
emiconductor peltier devices
and so on, we also provide customized thermo solution. We have a professional team, strong technology, advanced processes, modern equipment and efficient management systems, we commit to providing customers with advanced, complete, customized thermal management and thermal power generation solutions.
Quality Control System
Factory Certification:
ISO9001:2008
ISO: TS16949
ISO9001:2008
ISO: TS16949
Peltier Thermoelectric Freezer
Certification:
According to customer’s requirement, P&N products are inspected and tested by following MIL-STD-883 and Telcordia GR-468-CORE standard .
According to customer’s requirement, P&N products are inspected and tested by following MIL-STD-883 and Telcordia GR-468-CORE standard .
Certifications
Packing & Shipping
Delivery Way
1. We cooperate with different express companies to get cheapest express cost. You can chose our cooperating companies for door to door service.
2. you can also use your own cooperaing express company.
3. You can ship the goods through sea shipping, air shipping too .
No matter what way you want to use, just tell us. We will cooperate with you.
2. you can also use your own cooperaing express company.
3. You can ship the goods through sea shipping, air shipping too .
No matter what way you want to use, just tell us. We will cooperate with you.
FAQ
Q1. Are you manufacturer?
Yes, we are manufacturer of thermoelectric solutions including 12V 40W thermoelectric coolings for more than 10 years
Q2. Do you provide OEM/ODM serivce ?
Yes. As a professional manufacturer, we have professional engineer to analyse your project and do the design accordingly.
Q3. What information is requested for OEM design?
Yes, we are manufacturer of thermoelectric solutions including 12V 40W thermoelectric coolings for more than 10 years
Q2. Do you provide OEM/ODM serivce ?
Yes. As a professional manufacturer, we have professional engineer to analyse your project and do the design accordingly.
Q3. What information is requested for OEM design?
container size, voltage,
previous temp,
final temp, container material, and inner goods;
Q4. Can you provide free samples?
Usually the samples are not free. For some situation, we could further dicuss.
Q5. Can we directly use thermoelectric cools at AC power?
No, thermoelectric cools must be used at DC power and heat sink is requested at hot side.
Q6. Do you have inspection procedure before shipping?
Yes,wo do 100% QC inspection Before Shipment.
Q7. How long is the delivery time for samples and bulk orders?
Generally 3 working days for stock samples, 10-15 working days for bulk orders after receiving deposit.
For customized products, it will take about 4~6weeks.
Q4. Can you provide free samples?
Usually the samples are not free. For some situation, we could further dicuss.
Q5. Can we directly use thermoelectric cools at AC power?
No, thermoelectric cools must be used at DC power and heat sink is requested at hot side.
Q6. Do you have inspection procedure before shipping?
Yes,wo do 100% QC inspection Before Shipment.
Q7. How long is the delivery time for samples and bulk orders?
Generally 3 working days for stock samples, 10-15 working days for bulk orders after receiving deposit.
For customized products, it will take about 4~6weeks.
