Quick Details
-
Nominal Force (kN):
-
100
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LONROY
-
Weight (T):
-
0.01
-
Nominal Force (kN):
-
100
-
After-sales Service Provided:
-
Online support

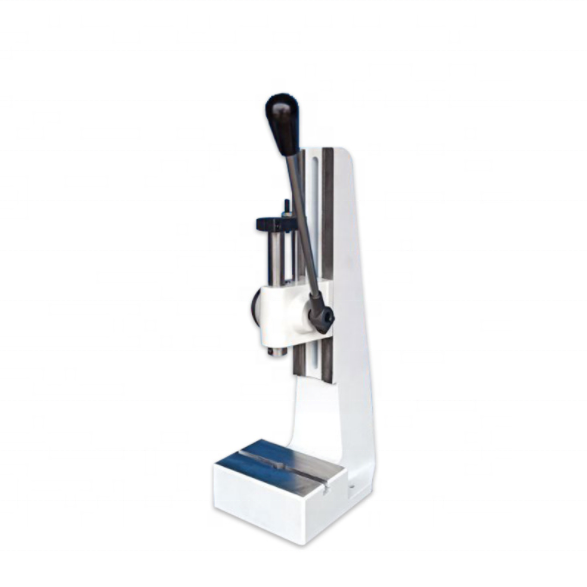

Arbor press hand /manual arbor press/arbor press machine
Use
This press machine is applicable to many industries such as hardware, electronics, electric appliance, automobile, machinery, clock, instrument,in the process of equipment, blanking, cutting, molding, flanging, pressing, riveting, punching, sewing, proofreading and stamping.
Arbor press hand /manual arbor press/arbor press machine
Character
The pressure of the press is almost constant during the downward , It has the following remarkable characteristics:
1.small operation force, high pressure and wide range of travel
2.Stroke, height and handle position are fully adjustable and easy to operate.
3.equipped with stroke block and optional travel self locking mechanism to ensure product quality.
Arbor press hand /manual arbor press/arbor press machine
Specification
| Model | A | B×T | C | D | E | F | L | H | G | R | N | ||
| pressure | stroke | work table size |
spindle span |
adjust height | install hole diameter | work table hole diameter | base length | base height | T groove width | install hole diameter | hole diameter | Weight | |
| KN | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KG | |
| AHP-1 | 12 | 0-60 | 185*115 | 86 | 120-360 | 10H7 | 20H7 | 265 | 610 | 10 | 11 | 146 | 31 |
| AHP-1R | 12 | 20-60 | 185*115 | 86 | 120-360 | 10H7 | 20H7 | 265 | 610 | 10 | 11 | 146 | 32 |
| AHP-2 | 12 | 0-60 | 150*110 | 86 | 80-265 | 10H7 | 20H7 | 260 | 500 | 10 | 11 | 116 | 23 |
| AHP-2R | 12 | 20-60 | 150*110 | 86 | 80-265 | 10H7 | 20H7 | 260 | 500 | 10 | 11 | 116 | 24 |
| AHP-3 | 5 | 0-40 | 110*80 | 65 | 65-180 | 10H7 | 20H7 | 195 | 410 | 8 | 11 | 96 | 12 |
| AHP-3R | 5 | 20-40 | 110*80 | 65 | 65-180 | 10H7 | 20H7 | 195 | 410 | 8 | 11 | 96 | 13 |
| Note: the ordering model with suffix (R) indicates that the product has self-locking mechanism for return trip. | |||||||||||||
