Automatic Retread Tyre Buffing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 240-380V / 50-60HZ

Dimension(L*W*H):: 1600x1800x2100 mm

Certification:: ISO

Power:: 16 kw

Weight:: 1650 kgs

Type:: Tyre Buffing

Application:: Tire Retread Machine

Warranty:: 1 Year

COLOR:: Yellow

Suitable:: 15-24''

Control:: Automatic

Pressure:: 0.15 mpa

More:: Sidewall Buffing

Quick Details

Place of Origin:: Shandong, China

Brand Name:: MELION

Model Number:: ML-FXM-F

Voltage:: 240-380V / 50-60HZ

Dimension(L*W*H):: 1600x1800x2100 mm

Certification:: ISO

Power:: 16 kw

Weight:: 1650 kgs

Type:: Tyre Buffing

Application:: Tire Retread Machine

Warranty:: 1 Year

COLOR:: Yellow

Suitable:: 15-24''

Control:: Automatic

Pressure:: 0.15 mpa

More:: Sidewall Buffing

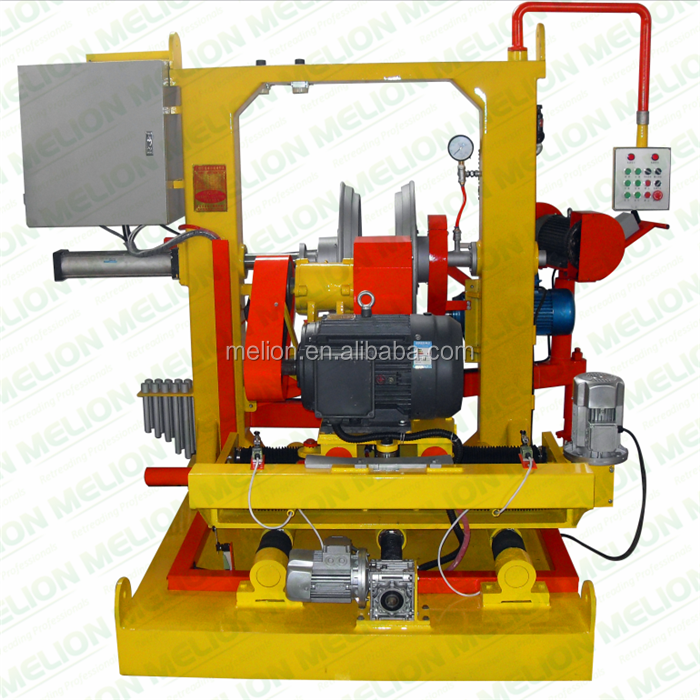

Automatic Retread Tyre Buffing Machine

In Pre-cure Tire Retreading process flow,after initial Inspection,the tire’s old tread is mechanically removed on high speed buffers.Our buffers are extremely accurate and will remove the proper amount of old rubber while turning the tire to an exact specified diameter and radius.

SPECIFICATIONS OF MELION TIRE BUFFING MACHINE
Tire Sizes Suitable	650-1200(15''-22.5'')
Inflation Pressure	0.1-0.15 Mpa
Dimension	1920x2150x1850mm
Electricity	380V,50Hz,3Ph
Buffer Motor Power	11 Kw
Turntable Motor Power	2.2 Kw
Buffing Head Speed	2980 r/min
Standard Wheel Chucks	15''-16'',20''-22.5''
Wheel Chuck Speed	42 r/min
Front-to-Rear Limits Control Motor	0.37 Kw
Left-to-Right Limits Control Motor	0.55 Kw
Chuck Cylinder	spc100x400mm
Lifting Cylinder	spc80*100mm
Advantages	1.Lifting Tyres Pneumatically Saving Labors
	2.Easy Operation on Portable Control Panel
	3.Over-Inflation Protection Function Designed for Safety
	4.Rubber Granules Collected by Dust Collector
	5.Accurate Buffer Saving Buffing Time
	6..Optional for Tyre Shoulder & Sidewall Buffing Device

Main Structure

This Tire Retreading Buffing Machine mainly consists of the Frame, Grinding Motor, Limit Control Motors, Lead Screw, and Curve Grinding Head, Wheel Chuck, Pneumatic Components and Electric Control Cabinet.
