Quick Details
-
Model Number:
-
S023
-
Product Name:
-
Fingerprint Combination Lock
-
Access Control:
-
Biometric Fingerprint + Password
-
Password:
-
1-10 digit combination
-
Material:
-
Zinc-Alloy
-
Dimension:
-
Dia 104X34MM
-
Application:
-
Gun Safes, Deposit Box, Vault, Commercial Safes
-
Certification:
-
ISO9001, CE, etc.
-
Samples:
-
Available
-
Design:
-
OEM/ODM
-
Visit our factory:
-
Welcome
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door, Aluminum door
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qidots
-
Model Number:
-
S023
-
Product Name:
-
Fingerprint Combination Lock
-
Access Control:
-
Biometric Fingerprint + Password
-
Password:
-
1-10 digit combination
-
Material:
-
Zinc-Alloy
-
Dimension:
-
Dia 104X34MM
-
Application:
-
Gun Safes, Deposit Box, Vault, Commercial Safes
-
Certification:
-
ISO9001, CE, etc.
-
Samples:
-
Available
-
Design:
-
OEM/ODM
-
Visit our factory:
-
Welcome

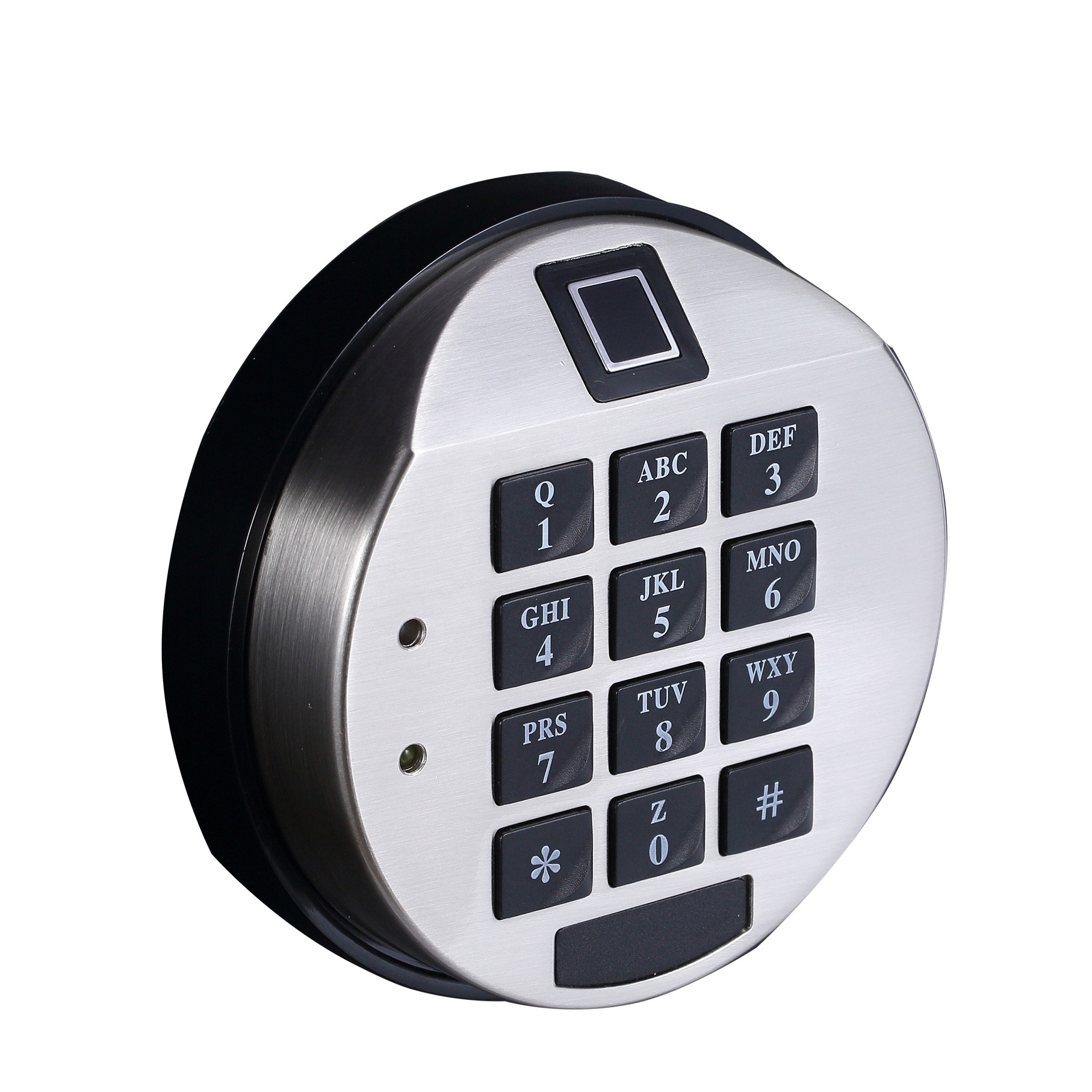

Time-Delay Open Biometric Combination Cabinet Lock for Gun Safes and Vault
Feature
- Biometric fingerprint -- Personalization setting, up to 30 finger database
- Standard Size + Push Keypress, widely used for gun safes and vault
- Fingerprint + Password, double protection,
- Master fingerprint + User fingerprint, Master Code + User Code, under double supervise
- Time-Delay Opening, set up the time for delay opening to protect the safes.
- Wrong try penalty
- Low battery warning
- outer battery box
Technical Data
| Model No. | S023 | |
| Mode | Two Modes, commercial safes and individual safes | |
| Access Control | Fingerprint + Password | |
| Fingerprint | Feature | Biometric Technology, more sensitive, 30 fingerprint database |
| Setting | 10 master fingerprint + 20 user fingerprint | |
| Password | 1-10 digits combination code, master code + user code | |
| Mechanism | Moter drive, solenoid, magnetic drive | |
| Componenent | Main Component | Panel + PCB + Electromagnetic lock body |
| Accessory for Option | Burglar Alarm + Position Limit Switch + LED Light | |
| Other parts needed for compete lock | Lock Bolt, Main Lock or Turning Knob + Backup Lock + Locking Mechanism | |
| Life time | 300, 000 for opening and closing | |
| Static Current | <35uA | |
| Power Supply | 4 X AA alkaline batteries | |
| Low Batttery | 4.8±0.30V | |
| Guarantee | 1 year | |
How to use? Click here get a instruction E-book.
We provide OEM and ODM supporting services for hundreds of domestic and foreign enterprises.
Each panel in a cotton bag,
then all the component in an inner Box
Box Meas. 18X11.5X4.5CM
30 PCS/CTN
CTN Meas: 58X36.5X14MM 21.50 KGS)
