Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHUOTE
-
Model Number:
-
SG0022
-
Material Grade:
-
Q235B, ASTM A-1011, A36
-
Finish Coating:
-
Mill, Black paint, Hot dip galvanized
-
Bearing Bar Surface:
-
Smooth, Serrated
-
Bearing Bar Thickness:
-
20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.
-
Bearing Bar Pitch:
-
20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier
-
Cross bar:
-
3/16", 1/4", 5/16", 3/8"
-
Cross Bar Spacing:
-
2" , 4" , etc.
-
Packing:
-
Bundle, Steel Pallet
-
Advantage:
-
Strong Technical Department Support
-
OEM/ODM:
-
Yes
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Warehouse
-
Design Style:
-
Industrial
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZHUOTE
-
Model Number:
-
SG0022
-
Material Grade:
-
Q235B, ASTM A-1011, A36
-
Finish Coating:
-
Mill, Black paint, Hot dip galvanized
-
Bearing Bar Surface:
-
Smooth, Serrated
-
Bearing Bar Thickness:
-
20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.
-
Bearing Bar Pitch:
-
20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier
-
Cross bar:
-
3/16", 1/4", 5/16", 3/8"
-
Cross Bar Spacing:
-
2" , 4" , etc.
-
Packing:
-
Bundle, Steel Pallet
-
Advantage:
-
Strong Technical Department Support
-
OEM/ODM:
-
Yes
Product Description

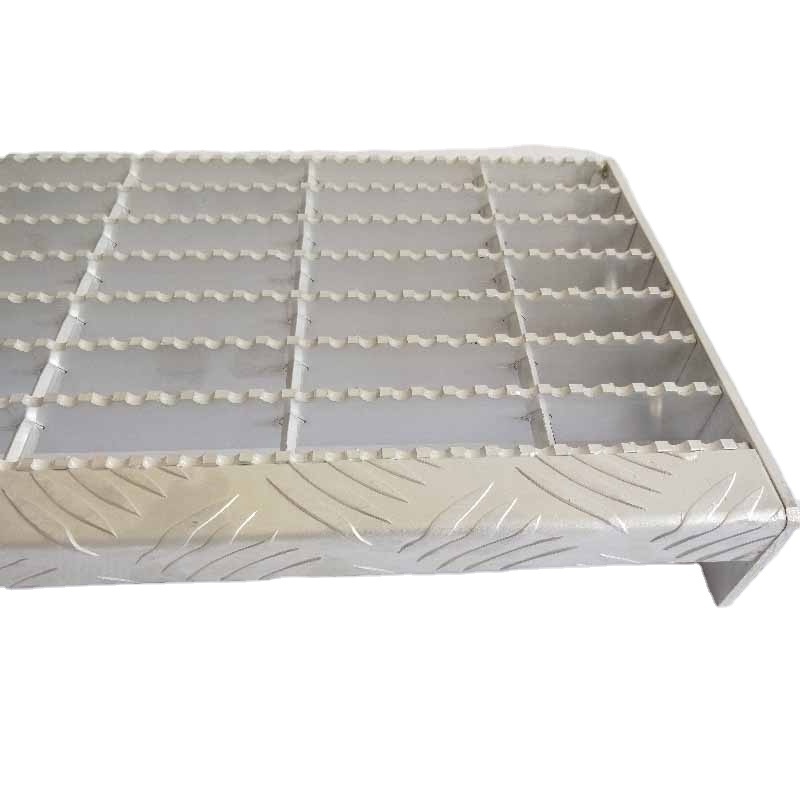

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface.
The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.
Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load bearing stength. And it is the most widely used in industrial, commercial and residential projects.
Specification
|
Item
|
Specification
|
|
Bear Bar Type
|
Flat Bar, I-Bar, Serrated Bar, etc.
|
|
Bearing Bar Size
|
20x5mm, 25x3mm, 35x5mm, 40x5mm, 50x5mm, 60x5mm, etc.
|
|
Bearing Bar Spacing
|
20mm, 25mm, 30mm, 33mm, 40mm, 43mm or multiplier.
|
|
Cross Bar Type
|
Twisted Steel Rod, Flat Bar
|
|
Cross Bar Size
|
3mm, 4mm, 5mm ,6mm or thicker
|
|
Cross Bar Spacing
|
50mm , 100mm, etc.
|
|
Bearing Bar Length
|
Customerized from 1000mm to 6000mm or more
|
|
Cross Bar Length
|
1200mm MAX
|
|
Material Grade
|
Mild Steel(Q235B), Stainless Steel 304 or 316, etc.
|
|
Surface
|
Hot Dipped Galvanized, black paint, mill steel
|
Packing & Delivery
Steel belt, pallet, wooden box for perforated steel sheet
