Quick Details
-
Item:
-
H.264 encorder
-
Temperature:
-
0~45°C(working),-20~80°C(not working)
-
Power Supply:
-
AC 110V~220V,50/60Hz
-
Power:
-
≤25W
-
MOQ:
-
1pcs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WOLCK
-
Model Number:
-
WK-3228S
-
Item:
-
H.264 encorder
-
Temperature:
-
0~45°C(working),-20~80°C(not working)
-
Power Supply:
-
AC 110V~220V,50/60Hz
-
Power:
-
≤25W
-
MOQ:
-
1pcs

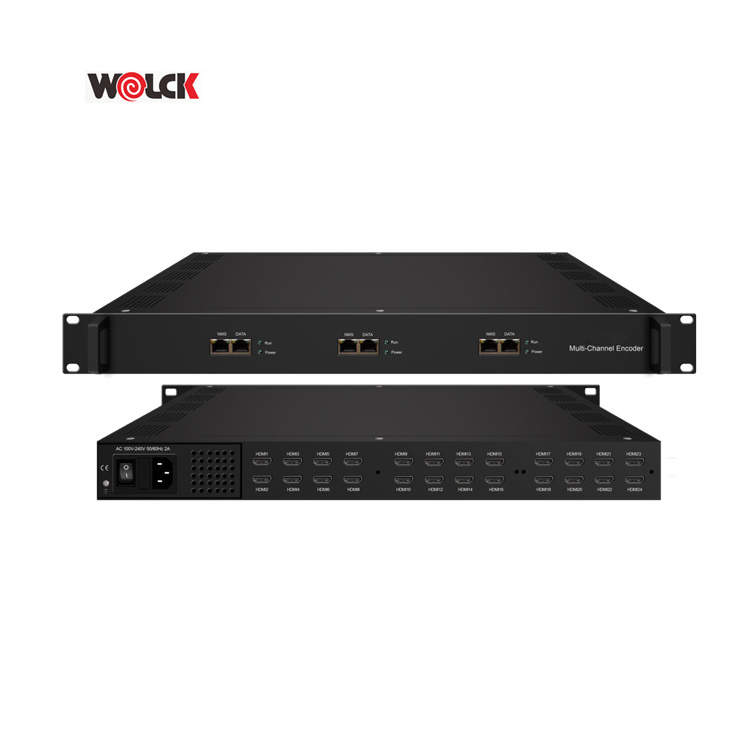

Multi-Channel Encoder WK-3228S
WK-3228S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 8/16/24 HDMI inputs for option. Every 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
|
1
|
Module 3 NMS and Data port and indicators
Data Port (for IP Signal Output)
NMS (Network Management Port)
|
|
2
|
Module 2 NMS and Data port and indicators
|
|
3
|
Module 1 NMS and Data port and indicators
|
|
1
|
Grounding Pole
|
|
2
|
Power Switch and socket
|
|
3
|
Module 1: HDMI 1-8
|
|
4
|
Module 2: HDMI 9-16
|
|
5
|
Module 3: HDMI 17-24
|
· 8 HDMI inputs with 8 SPTS and 1 MPTS output (each encoder module), max 24 HDMI inputs
· MPEG4 AVC/H.264 video encoding format
· MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
· IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
· Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو)
· Support “Null PKT Filter” function
· Control via web management, and easy updates via web
· MPEG4 AVC/H.264 video encoding format
· MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
· IP output over UDP and RTP/RTSP protocol; 1 ASI out as mirror of MPTS (Optional)
· Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو)
· Support “Null PKT Filter” function
· Control via web management, and easy updates via web
|
Input
|
8/16/24 HDMI inputs
|
|
|
||
|
|
Resolution
|
input
|
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i |
||
|
|
|
Output
|
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P |
||
|
|
Encoding
|
|
MPEG-4 AVC/H.264
|
||
|
|
Bit-rate
|
|
1~13Mbps each channel
|
||
|
|
Rate Control
|
|
CBR/VBR
|
||
|
|
GOP Structure
|
|
IP…P (P Frame adjustment, without B Frame )
|
||
|
|
Encoding
|
|
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
|
||
|
|
Sampling rate
|
|
48KHz
|
||
|
|
Resolution
|
|
24-bit
|
||
|
|
Audio Gain
|
|
0-255 Adjustable
|
||
|
|
MPEG-1 Layer 2 Bit-rate
|
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
||
|
|
LC-AAC Bit-rate
|
|
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
|
||
|
|
HE-AAC Bit-rate
|
|
48/56/64/80/96/112/128 kbps
|
||
|
|
IP output through DATA (GE) over UDP and RTP/RTSP protocol
(8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder board) 1 ASI out as mirror of MPTS (Optional as order) |
|
|
||
|
|
Network management(WEB)
|
|
|
||
|
|
Chinese and English language
|
|
|
||
|
|
Ethernet software upgrade
|
|
|
||
|
|
Dimension (W×L×H)
|
482mm×328mm×44mm
|
|
||
|
|
Environment
|
0~45℃(work)；-20~80℃（Storage）
|
|
||
|
|
Power requirements
|
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
|
|
||
