Quick Details
-
Voltage:
-
220V / 380V
-
Power:
-
0.75-22 Kw
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
760*490*570mm
-
Marketing Type:
-
Hot Product
-
Feeding Size:
-
Soil material<10mm, other material<3mm
-
Roller Speed:
-
20-60 rpm
-
Maximum Loading Volume:
-
Two-thirds of ball milling tank
-
Output Granularity:
-
≥300 Mesh
-
Matched Mill Media:
-
Alumina balls,zirconia balls,agate balls,stainless steel balls,etc
-
Mill Jar Material:
-
Stainless steel,nylon,ceramics,PTFE,PU,etc
-
Maximum Continuous Working Hours:
-
72 hours
-
OEM Service:
-
Support
-
Product Type:
-
Powder Grinding Machine
-
Certification:
-
CE & ISO Certification
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
YLK Brand
-
Production Capacity:
-
1-2000L
-
Voltage:
-
220V / 380V
-
Power:
-
0.75-22 Kw
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
760*490*570mm
-
Marketing Type:
-
Hot Product
-
Feeding Size:
-
Soil material<10mm, other material<3mm
-
Roller Speed:
-
20-60 rpm
-
Maximum Loading Volume:
-
Two-thirds of ball milling tank
-
Output Granularity:
-
≥300 Mesh
-
Matched Mill Media:
-
Alumina balls,zirconia balls,agate balls,stainless steel balls,etc
-
Mill Jar Material:
-
Stainless steel,nylon,ceramics,PTFE,PU,etc
-
Maximum Continuous Working Hours:
-
72 hours
-
OEM Service:
-
Support
-
Product Type:
-
Powder Grinding Machine
-
Certification:
-
CE & ISO Certification
Mini Flour Making Machine, Mini Grain Powder Processing Mill, Wheat
Grinder Machine
>> Product Introduction <<

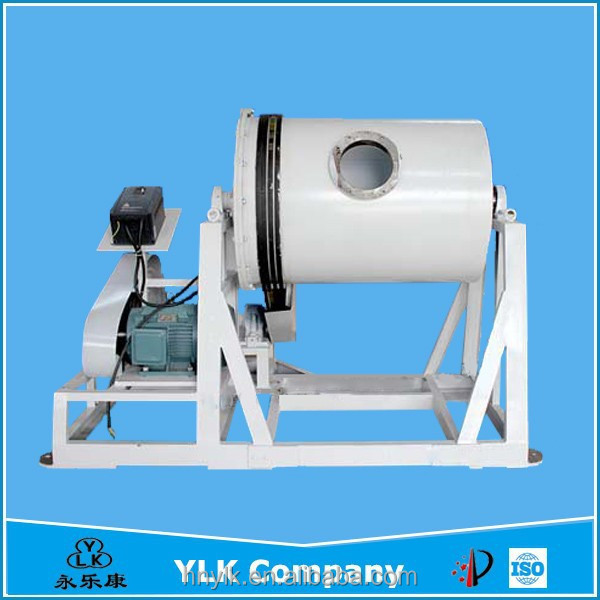

YLK Roll ball mill, a type of grinder machine, is a cylindrical device used in grinding (or mixing) materials like ores,chemicals, ceramic raw materials and paints, etc. It is widely applied to industries of electronic material, mineral material, ceramics, magnetic material, building material, biological medicine, cement, metal powder, nonmetallic minerals, etc. The machine consisits of mechanical transmission mechanism, PLC control and grinding jar three main parts, with characteristics of beautiful design,compact structure, easy operation, high efficiency, and uniform granularity, etc.
>> Application Area <<
|
Applied Industry |
Mill Substance |
|
Laboratory |
S oil , metal , rigid specimens, powder material, etc |
|
Medical |
M edicin e, drug , pharmaceutical , pills, etc |
|
Mineral |
O re , stone , mine , litharge , alumina , coal , chromium , chrome , etc |
|
Construction |
S tone , glass , cement , concrete , sand , sla g, etc |
|
Ceramic |
P ottery , porcelain , clay , chinaware , ceramic glaze , etc |
|
Paint |
I nk , color , coating , pigment , spices, etc |
|
Food |
G rain , sugar , pepper , slice , chocolate , malt , plant material, etc |
|
Geology |
Powder metallurgy, corrosion materials, catalysts, chemical, etc |
|
Others |
Comestic , herb , clinker , pearl , l inestone , environmental, etc |
>> Product Features <<
1.Smooth operation, high-efficiency, energy-saving, low noise, no pollution.
2.With automatic unloading machine, material and ball separate automatically , convenient discharge.
3.For dry and wet grinding, can deal with all kinds of hard material, rough and fine grinding or mixture materials.
4.Ball mill crushing in sealed cylinder, no dust flying, high material purity, and carried under inert air flow, thus used in some inflammable and explosive materials broken.
5.Hollow shaft adopts cast steel, lined with removable, rotary wheel adopts gear hobbing machining, cylinder body with wear-resisting liner, good abrasion resistance, high grinding efficiency.
6.Can choose stainless steel, carbon steel, manganese steel, alumina, zirconia, polyurethane, nylon, etc as liner according to customer's requirement.
>> Working Principle <<
When roll ball mill work, the cylinder body of grinding medium and material together along with cylinder rotate ascending to a certain height, from the cylinder wall along the parabola whereabouts by gravity, the grinding media and the material in the grinding tank high speed rolling, generating a strong shear, impact, roll to reach the purpose of crushing, grinding, dispersion, emulsification materials.
>> About sieve/screening <<
Every YLK Ball Mill Machine is equipped with a round frame sieve. While grinded powder passing through the sieve, the particle can be classified into different sizes. The screen has 10 types, including 20/40/60/80/100/120/140/160/180/200 sieve number. You can get different size powder by choosing the appropriate screen. Matches between sieve & particle is as followed:
>> Technical Parameters <<
Remark: (1) Loading rate of ball mill can not exceed 70% of the effective volume of grinding cylinder.
(2) Rated voltage: 25-50L ( 220V ), > 50L ( 380 V).
(3) Ball mill environments: Vacuum, inert gas, low temperature, high temperature.
