Quick Details
-
Model Number:
-
W112-A
-
Material:
-
Carbon Steel Q235B
-
Application:
-
Diesel Oil
-
Color:
-
Red
Quick Details
-
Type:
-
Variable Area Petrolum Flowmeters
-
Place of Origin:
-
China
-
Brand Name:
-
HONGYANG
-
Model Number:
-
W112-A
-
Material:
-
Carbon Steel Q235B
-
Application:
-
Diesel Oil
-
Color:
-
Red
Material: Aluminum; Flowrate:55-550 L/Min; Size:2 " BSPT; With Flanges; Accuracy: +-0.2%; 0.681L per Rotary; Max Pressure:10 bar; Mechanical register with 5 non- Resettable digits and 8 non-resettable digits totaliser; with strainer; with Air Eliminator
(COPY OF LC)

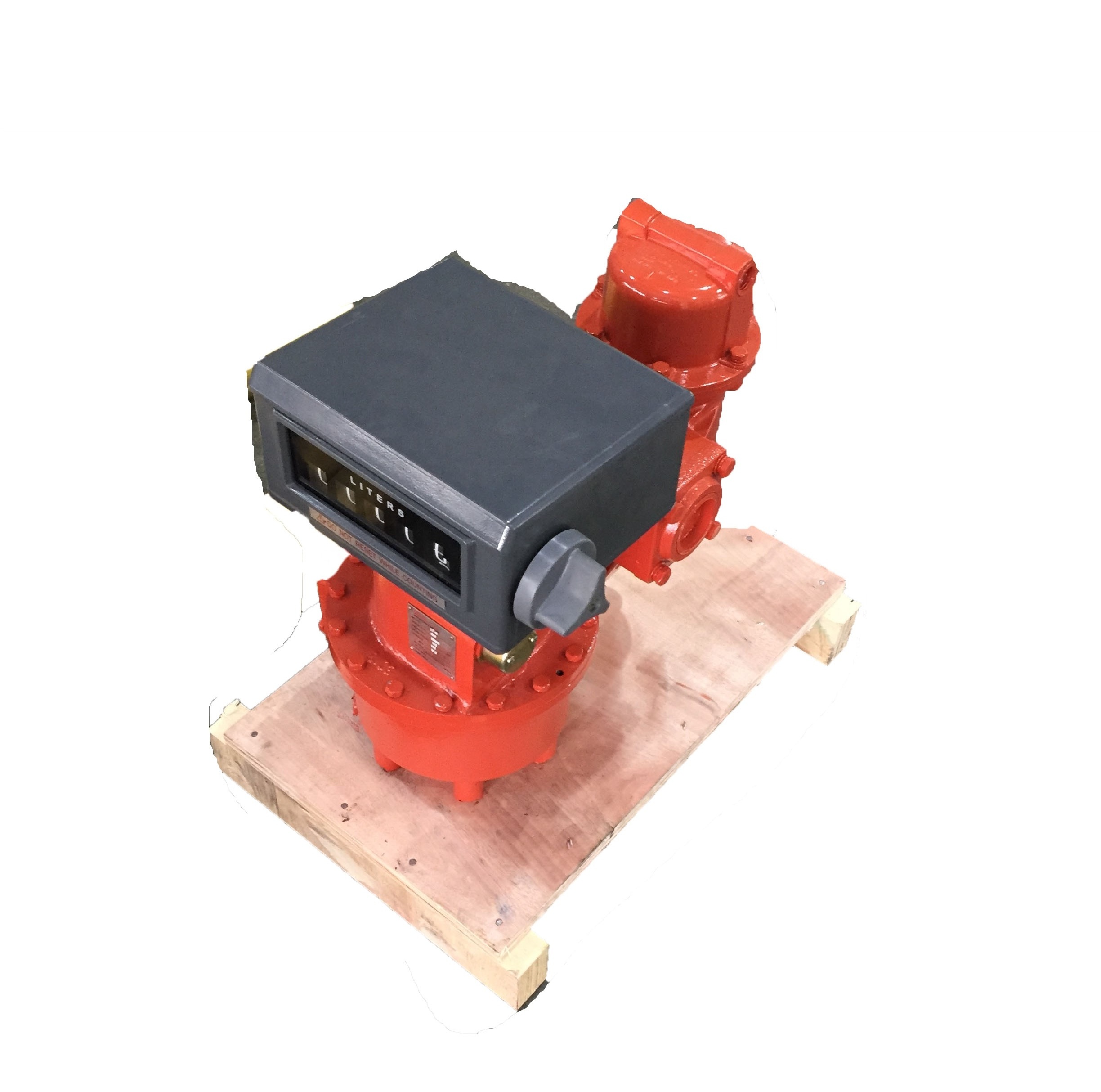

The positive displacement flow meter has simple and effective metering design. It
is composed of a housing and three rotators with the same rotation in the meter.
There is no metal-to-metal contact in the measuring chamber so as to keep long
life time The rotator is supported by bearings in the 2 bearing plates. There is a
timing gear at the end of the rotator shaft.Then the timing rotation between 2 rotators
transfer from scale adjuster to register. So that can produce consistent and high
precision measurement.
Features:
Excellent stepless adjusting mechanism allows a micro adjustment of the meter.
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow.
Low maintenance, no metal-to-metal contact in measuring chamber, long life service.
Low pressure loss, a true gravity flow meter.
The differential valve mounted on the meter outlet and connected at
the valve bonnet to the vapor eliminator on the meter with function of
to stop liquid flow whenever vapor is present in the system.The valve
maintains sufficient pressure to ensure that high-vapor pressure products
products such as LPG or anhydrous ammonia (NH3)always remain in
the liquid state.The valve is spring loaded and designed to fail closed.
Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
Applications:
Material Caliber Max flow rate Work pressure
Aluminum alloy 2" 550L/min 350PSI
Differential Valve:
Refined petroleum products; Aviation gasoline and jet fuel; Liquiefied petroleum gas(LPG)
Chlorinated solvents and general solvent metering; Acid pH liquids and abrasive liquids
Treated waters (deionized, demineralized, and potable); Weedicide
Crude oil, also for heated and/or viscous liquids;
A wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose,
fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil.
Oil or water based latex products, polyester resins, and adhesives (neutral pH), also for
metering herbicides and nitrogen fertilizer solutions;
Sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other
alkaline pH liquids
