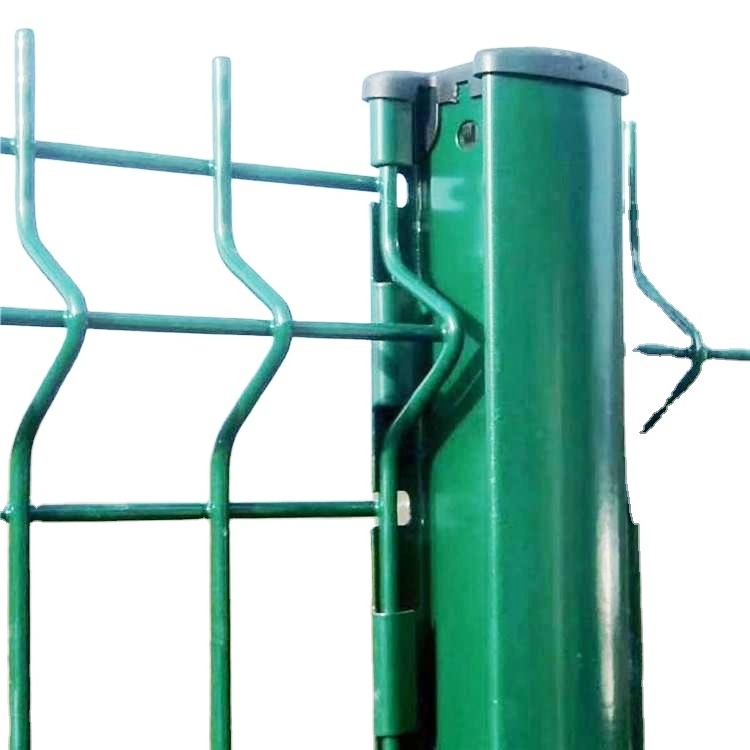

3D Curvy PVC Coated Galvanized Welded Wire Mesh Fence 3D Triangle Mesh Fence

Product Application

Welded wire mesh garden fence is made into panel as main part of welded wire fence for security and segregate of road, yards, sport fields, airports and public district fencing by fix them with anti-thief post, round post or square post.

Product Specification

Fence Panel
1.Material Low carbon steel wire
2.Wire diameter 3.0mm ~ 6.0mm;
3.Wire mesh (mm) 50X100,50X120,50X150,50X200,75X150,75X200
4.Height 0.8 ~ 2.0m; less than 4.0m is available
5.Width 2m ~ 3.0m
Panel Type With or without curves are both available as request.

Fence Post
1.Square post 50mmx50mm, 60mmx60mm, 40mmx60mm,
2.Round Post Φ48mm, Φ60mm
3.Peach Post 50mmx70mm, 70mmx100m
4.Post thickness 1.2mm to 2.5mm
5.Post Height 0.8m ~ 3.5m
6.Post Base With or without the base flange are both available.
7.Post Fittings Post clips with Bolts and nuts, post rain cap,

Fence Finishing
1. Hot-dip Galvanized
2. PVC powder spraying coated or PVC powder dipping coated
3. Galvanized +PVC powder spraying/dipping coated
Packing

1) With pallet; 2) Bulk in container  Detailed Images

Packaging :

1)it has rubber mat at the bottom of the pallet to avoid the pallet destroying the panels;

2)it has 4 metal corners to keep the pallet more strong;

3)it has metal plate under the plastic bandage to reduce the apressure of fence panels;

4)it has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.
