Quick Details
-
Use voltage:
-
DC12V/DC24V
-
Use current:
-
0.8A/1.2A
-
Power capacity.:
-
9.6W/28.8W
-
Working methods:
-
telescopic retraction / power outage
-
Flexible Trip:
-
10mm
-
Suction force:
-
Initial suction: 1 N, retaining force: 10 N
-
Operating temperature:
-
-10~+60℃
-
product weight:
-
160g
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SARY
-
Product Name:
-
LY-03
-
Use voltage:
-
DC12V/DC24V
-
Use current:
-
0.8A/1.2A
-
Power capacity.:
-
9.6W/28.8W
-
Working methods:
-
telescopic retraction / power outage
-
Flexible Trip:
-
10mm
-
Suction force:
-
Initial suction: 1 N, retaining force: 10 N
-
Operating temperature:
-
-10~+60℃
-
product weight:
-
160g
Product display

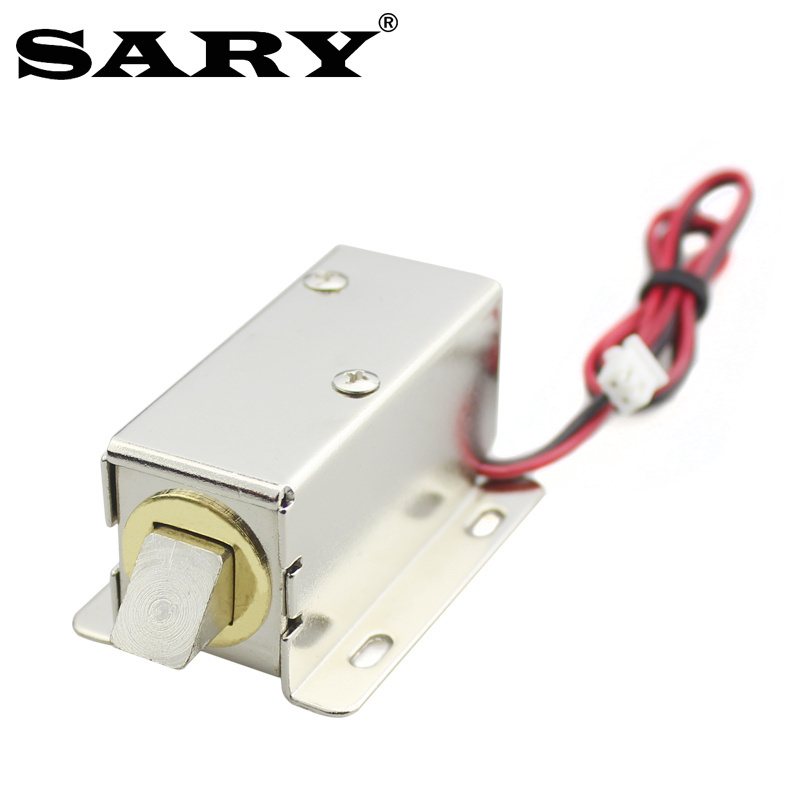

LY-03 is a small electromagnetic lock, its working principle is through the current generation magnetic force to control the expansion of the locking tongue for cabinet doors, drawers, jewelry cabinets and other cabinet door design, easy to install; Widely used.
Features:
•
The lock body is made of high quality industrial iron material, and is not easy to deform and durable
•
Internal coils are made of pure copper coil
•
High strength material, the outer casing is galvanized zinc treatment, good anti-rust effect
•
Lock your tongue, bottom, left and right, all four directions can be adjusted, the movement is sensitive
•
Convenient installation and stable performance
Technical Specification:
|
Model No.
|
|
LY-03
|
|
|
|||
|
Use of voltage
|
|
DC12V/DC24V
|
|
|
|||
|
working current
|
|
0.8A/1.2A
|
|
|
|||
|
Power capacity.
|
|
9.6W/28.8W
|
|
|
|||
|
Power supply time
|
|
≤5 S recommended interval of more than 1 minute
|
|
|
|||
|
Working methods
|
|
telescopic retraction / power outage
|
|
|
|||
|
Flexible Trip
|
|
10mm
|
|
|
|||
|
Suction force
|
|
Initial suction: 1 N, retaining force: 10 N
|
|
|
|||
|
Dimensions
|
|
L55*W38*H28mm
|
|
|
|||
|
Operating temperature
|
|
-10~+60℃
|
|
|
|||
|
Weight of product
|
|
0.16KG
|
|
|
|||
