Quick Details
-
Place of Origin:
-
Guangdong, China
-
LED Light Source:
-
SMD RGB 3528
-
Lamp Luminous Efficiency(lm/w):
-
3500
-
Color Temperature(CCT):
-
rgb
-
LED Standard:
-
SMD3528
-
Pixel composition:
-
3 IN 1
-
Beam angle:
-
110 degree
-
Max Power consumption/unit Module:
-
115W
-
Waterproof:
-
IP 65
-
Life span:
-
>=30000 hours
-
Control Mode:
-
LED Flash Computer System
Quick Details
-
Type:
-
LED Matrix Light
-
Lamp Power(W):
-
135
-
Working Temperature(℃):
-
-20 - 55
-
Place of Origin:
-
Guangdong, China
-
LED Light Source:
-
SMD RGB 3528
-
Lamp Luminous Efficiency(lm/w):
-
3500
-
Color Temperature(CCT):
-
rgb
-
LED Standard:
-
SMD3528
-
Pixel composition:
-
3 IN 1
-
Beam angle:
-
110 degree
-
Max Power consumption/unit Module:
-
115W
-
Waterproof:
-
IP 65
-
Life span:
-
>=30000 hours
-
Control Mode:
-
LED Flash Computer System

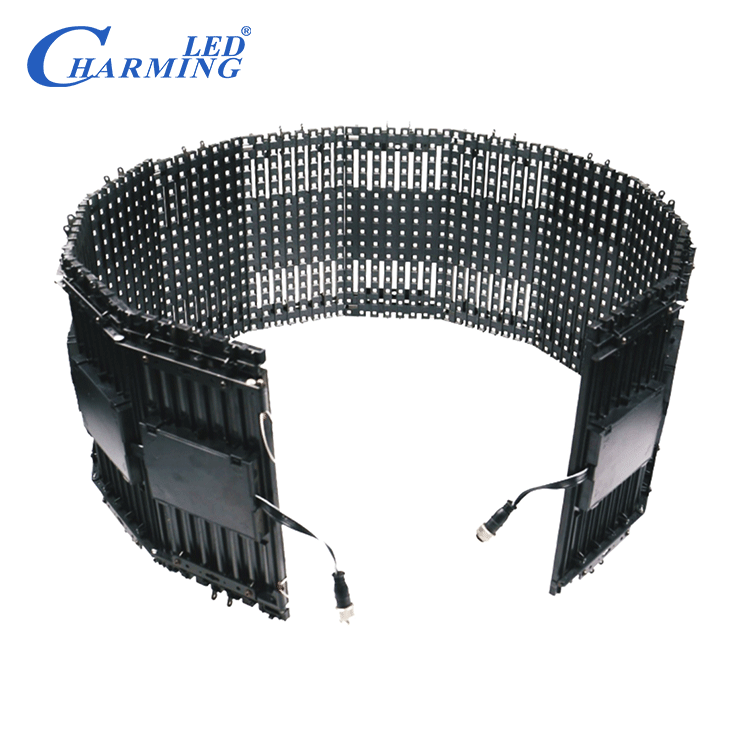

Concert used rgb led curtains for stage backdrops LED curtain display
Concert used rgb led curtains for stage backdrops LED curtain display
|
Specificaion: |
|||
|
Type Number |
COL.PI. 937 . 0006/0007 |
Unit module composition |
L1 × H6 module |
|
Pixel pitch (MM) |
9.375 |
Unit module pixel |
L 32 × H 96dot |
|
LED Standard |
SMD3528 |
Max.power consumption |
135 W |
|
Pixel composition |
3 IN 1 |
Module material |
PC |
|
Pixel density (dot/m2) |
11377 |
Protection level |
IP 65 |
|
Demensions (mm) |
L 300 * W150 |
Viewing angle |
110 ° |
|
Module Power |
25 W |
Working temperature |
-20 ℃~ +50 ℃ |
|
Module resolution (L×W) |
32*16 |
Working humidity |
10%~90% RH |
|
Scan mode |
1/8 |
Life span |
≥ 30,000 hours |
|
Grey |
65536 |
Working voltage |
AC 220 V / (110V) ± 15% , 47~63 HZ |
|
Refresh rate (Hz) |
≥ 2000 |
Signal transfer |
Lan cable |
|
Brightness (CD/m 2 ) |
20 00 |
Control system |
LED FLASH Computer Control System |
|
Best viewing distance (M) |
9.5 |
Computer platform |
Windows XP , Windows 7 |
|
Unit module dimension |
L 300 × H 900 mm |
Video Sources available |
DVD, VCD, VCR, TV, camera with PAL/NSTC |
|
Control case size |
535 × 200 × 150mm |
Control pixel |
L128×H192 dot /L64×H384 dot |
|
Control area dimension ( mm ) |
L4 × H 2unit /L2 × H 4unit |
Control case max.power |
1200W |
|
Control area dimension ( mm ) |
W1200×H1800MM/W600×H3600MM |
|
|
|
Effetive control distance |
≤ 100 M (by LAN) , ≥ 100 M (by fiber optic with multi-module or single module ) |
||
1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 100 countries and regions.
