Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Number of Axes:
-
12
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YIHAI
-
Voltage:
-
AC380v/220v±10%
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
15
-
Weight (KG):
-
2500
-
After-sales Service Provided:
-
Online support
-
X,Y Working Area:
-
1300mm*2500mm*200mm
-
Inverter:
-
Fuling/Sunfar Inverter
-
Contorl system:
-
syntec control system
-
Table surface:
-
Vacuum table
-
transmission system:
-
Hiwin/CSK Linear Bearings
-
Driver system:
-
servo System
-
Motor:
-
1500w servo motor
-
Transmission:
-
X Y axis with Rack and Pinion Drive Z axis with Taiwan TBI Ball Screw
Quick Details
-
Working Table Size(mm):
-
1300*2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Number of Axes:
-
12
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YIHAI
-
Voltage:
-
AC380v/220v±10%
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
15
-
Weight (KG):
-
2500
-
After-sales Service Provided:
-
Online support
-
X,Y Working Area:
-
1300mm*2500mm*200mm
-
Inverter:
-
Fuling/Sunfar Inverter
-
Contorl system:
-
syntec control system
-
Table surface:
-
Vacuum table
-
transmission system:
-
Hiwin/CSK Linear Bearings
-
Driver system:
-
servo System
-
Motor:
-
1500w servo motor
-
Transmission:
-
X Y axis with Rack and Pinion Drive Z axis with Taiwan TBI Ball Screw

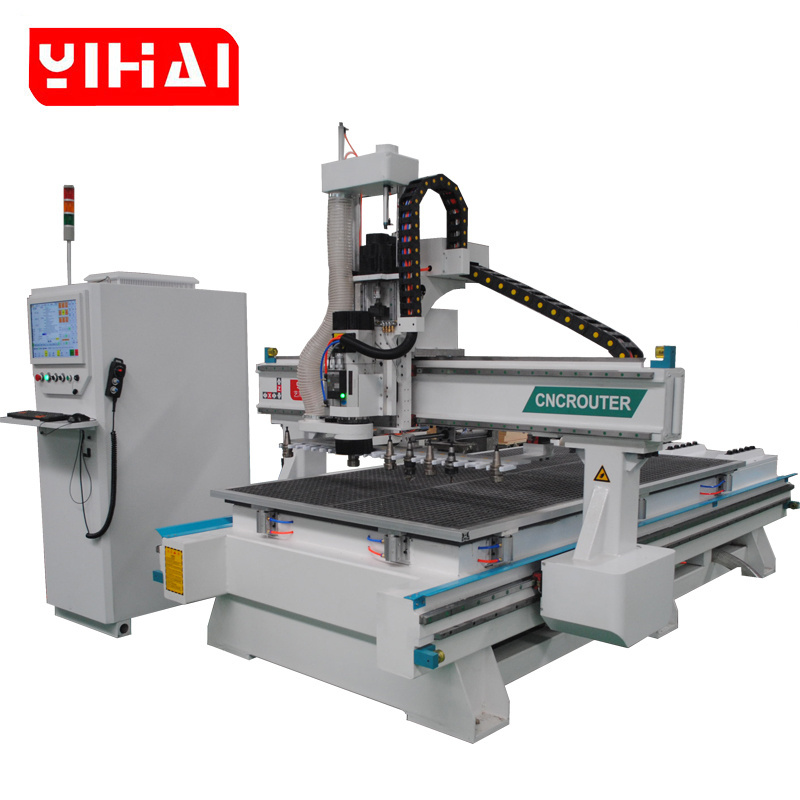

Economic YH-1325 woodworking CNC Machine
A.Specifications
|
Number |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
1300x2500x200mm |
|
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/200mm |
|
3 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
4 |
Table Surface |
Vacuum and t-slot table (6 area) |
|
5 |
Frame |
frame steel (8mm),aging treatment |
|
6 |
Gantry |
steel structure(12mm) |
|
7 |
X, Y Structure |
WMH HMRON Helical Rack and Pinion Drive, Hiwin Linear square rails |
|
8 |
Z Structure |
Hiwin Rail Linear square rails and TBI Ball Screw |
|
9 |
Spindle Power |
3.0kw water/3.5kw air cooling spindle/Italy HSD 4.5KW spindle |
|
10 |
Spindle Speed |
0-24000RPM |
|
11 |
Drive Motors |
Servo motor/Stepper motor |
|
12 |
Working Voltage |
AC380V/220V 50/60Hz,3PH |
|
13 |
Command Language |
G Code |
|
14 |
Operating System |
DSP/ Official Ncstudio controller (Options: German SIEMENS control system / Taiwan SYNTEC control system)
|
|
15 |
Lubrucate |
Automaitic oil-filling |
|
16 |
Flash Memory |
128M(U Disk) |
|
17 |
Collet |
ER25 |
|
18 |
electric configuration |
France schneider low voltage electric , emergency stop switch and Japan Omron limit switch |
|
19 |
X,Y Resolution |
<0.01mm |
|
20 |
Software Compatibility |
Artcam Software, (Option: Type3/UcancameV9 Software) |
|
21 |
Running Environment Temperature |
0 - 45 Centigrade |
|
22 |
Relative Humidity |
30% - 75% |
|
23 |
Optional Parts |
Auto oil-filling |
|
Dust Collector |
||
|
Rotary System |
||
|
YASKAWA/Panasonic servo/ DELTA Servo Motors |
B.Details
Packaged in one strong plywood case.
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
If you are here I assume you are thinking about buying a CNC router or some other CNC machine. Without a doubt these are amazing machines that can improve your business or project tremendously. However, there are many other types of CNC robotics that may be better fitting for your application.
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satisfy my requirement within my budget? Which one is the right one for me?
First lets answer the following questions.
1)What type of materials do you plan to cut or engrave?
( Wood,Particle Board,Plastic,Foam,Composites,Glass,Aluminum )
2)What is the most complex design you foresee cutting?
The complexity of the design is another important considerations. What is meant by this is primarily the overall size and depth of cut per axis. Do you plan to use the machine for cutting, carving, drilling, or all of the above?
3)What kind of tolerances do you need to hold?
Now this is something that I am sure you have already considered but it is still worth discussing. A router is capable of leaving a near perfect finish while surfacing and overall the tolerances are good. A decent machine, you should expect a tolerance of .001" or better for a given distance.
3.Question: How to buy? whats the main procedure?
First, we come to a final conclusion with agreement. May this step will cost more than months even years.
Scond, I prepare you the proforma invoice as we agreed.
Third, you bring the proforma invoce to the bank and do the advance payment transfer.
Fourth, after you showed me the bank slip, we factory start to produce your machine.
Fifth, machine finished within 13 working days, then we do the delivery and you finish the balance.
Sixth, You receive the machine in your port and pick it up to your workshop.
4. Question: What is the machine warranty? If any parts fault due to quality how can i do ?
Our machine are with 13 months qualtiy warranty. within 13 months, if any parts failed due to qualtiy, we will send you the replacement parts in no time and we provide 24 hours online technical support to you. Any time you meet any problem, just contact us.
