Compact structure, small turning diameter.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SX
-
After-sales Service Provided:
-
Overseas service center available, Video technical support
-
Product name:
-
round hay baler
-
Dimension(L*W*H):
-
1300*1300*1350mm
-
Bale size:
-
60 x 70cm
-
Pick width:
-
800mm
-
Bale weight:
-
18-25kg/bale
-
Weight:
-
450 kg
-
Binding type:
-
twine binding or net binding optional
-
Match power:
-
30-85hp tractor
-
Working efficiency:
-
80-120bales/hour
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Thailand
-
Certification:
-
CE.ISO
Quick Details
-
Type:
-
Round Baler
-
Use:
-
grass, straws, alfalfa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SX
-
After-sales Service Provided:
-
Overseas service center available, Video technical support
-
Product name:
-
round hay baler
-
Dimension(L*W*H):
-
1300*1300*1350mm
-
Bale size:
-
60 x 70cm
-
Pick width:
-
800mm
-
Bale weight:
-
18-25kg/bale
-
Weight:
-
450 kg
-
Binding type:
-
twine binding or net binding optional
-
Match power:
-
30-85hp tractor
-
Working efficiency:
-
80-120bales/hour
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Thailand
-
Certification:
-
CE.ISO
Product Description
|
Model
|
SXYK-0850
|
SXYK-0870
|
SXYK-0910
|
|
Bale size
|
50 x 70cm
|
61 x 70cm
|
900X950cm
|
|
Bale weight
|
18-25kg
|
20-40kg
|
30-50kg
|
|
Weight
|
447kg
|
474kg
|
1000kg
|
|
Roller number
|
10
|
12
|
19
|
|
Pickup width
|
80cm
|
80cm
|
100cm
|
|
Capacity
|
80-100 bales/h
|
80-120 bales/h
|
100-150 bales/h
|
|
Match power
|
18-50hp
|
30-80hp
|
Above 45hp
|
|
PTO speed
|
540
|
540
|
540
|
|
Packing dimension
|
1.15*1.2*1.12m
|
1.2*1.3*1.15m
|
3.0X1.5X1.665
|
It can pick up hay, silage, wheat, rice straws and crumbles corn stalks and compress them into some bales which are easy to handle.
Bale weight between 18kgs to 40kgs.The baler can be net binding system or twine binding system optional
Advantage
①Mounted to 4-wheel tractor, driven by PTO cardan
②Durable rollers and pickup assay, compact structure, low maintenance
③Independent hydraulic pump and cylinder, free from the towing tractor.
You can choose either twine binding device or net binding
Detailed Images

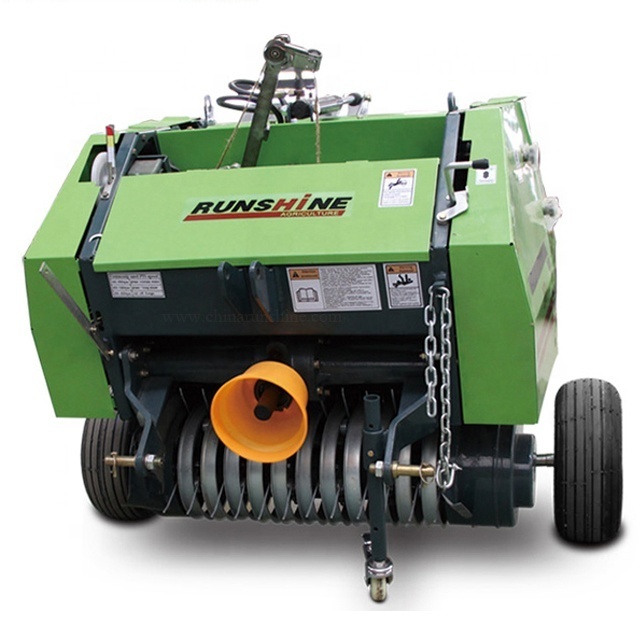

Compact structure, small turning diameter.
Our Advantage
Bale size : 50* 70cm ,weight is 18-25kg per bale, easy to carry especially
1. The compression mechanism assembly is set on the upper part of the pickup mechanism assembly, with the same pickup amplitude and smaller equipment width, which is more convenient for small field operation. The overall layout is more reasonable.
2. The power input is equipped with a safety clutch, and the main transmission shaft, compression device and rope tying device are equipped with safety bolts. When the system is overloaded, the bolts are cut automatically to cut off the power transmission of the tractor and protect the system from damage
Product packaging
|
Packaging for RXYK0850
|
Packaging for RXYK0850
|
|
|
Size
|
120(L) * 115 (W) * 130 (H)
|
|
|
Weight
|
450kg
|
|
|
Packaging Details
|
The dimension is for 1set.20GP =20 sets
40GP/ 40HQ = 40 sets |
|
Certifications
Company Introduction
Establised in 1984, Weifang Shengxuan Machinery Co.,Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of farm machinery.
